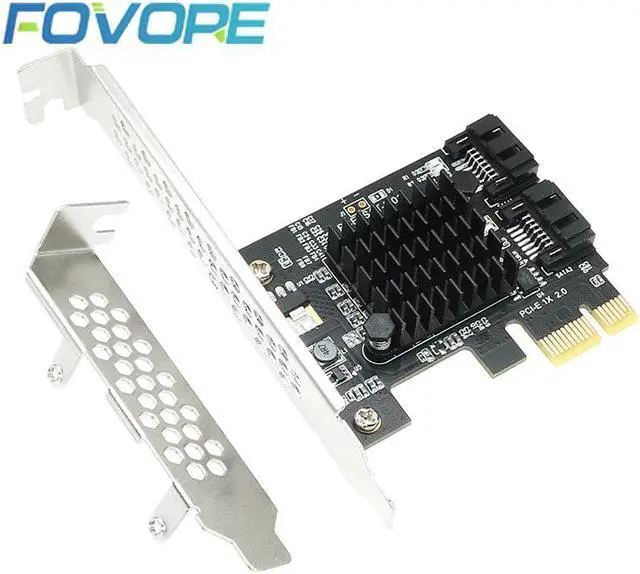

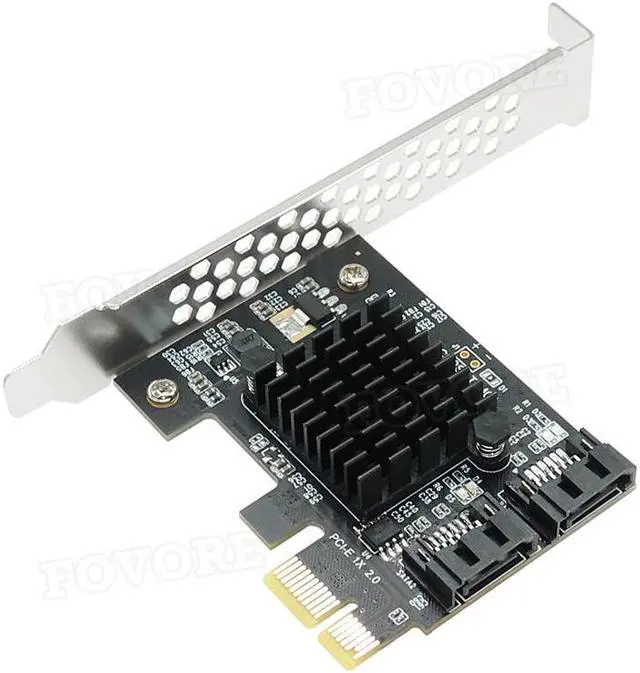

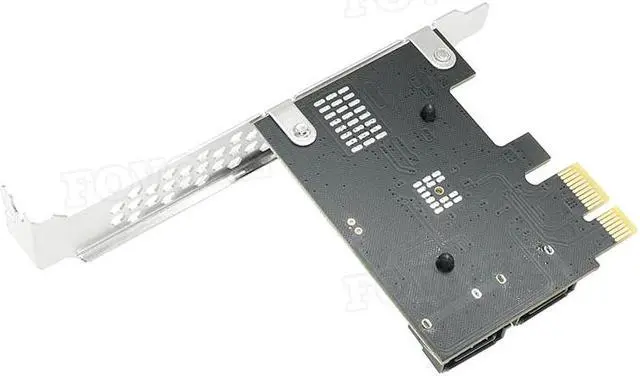

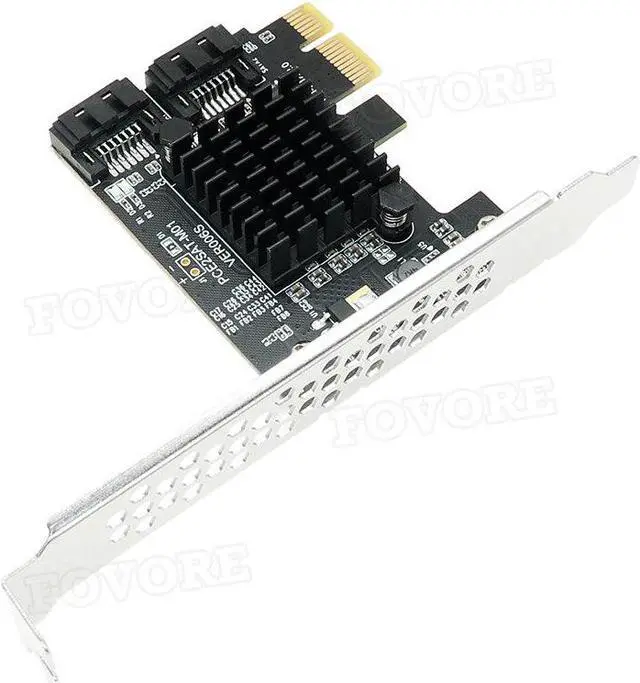

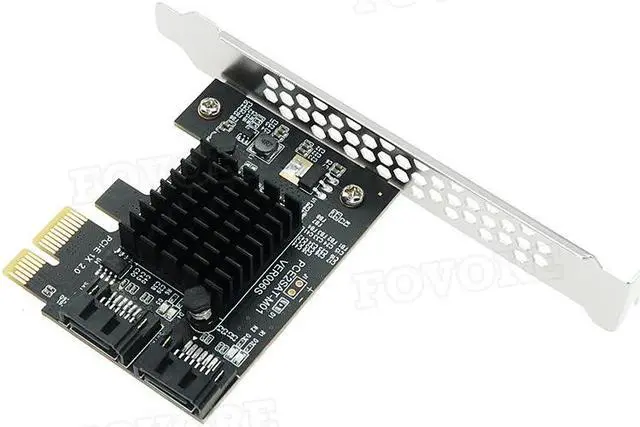

adapter PCI e 2 port 3 SSD HDD adapter PCI express 3 expansion card PCI-e 1x 2x 4x 8x 16x controller 6Gbps Marvell

Item Description

Meets Serial ATA 3.0 specification, backward compatible with 2.0 1.0

Compliant with PCI-Express v2.0 specification, backward compatible with PCI-Express v1.0.

Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps

Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

Supports Four

Support AHCI1.0 mode and IDE mode

Support native command queue (NCQ)

Supports FIS based on port multiplier switches or command switches.

Hot-swappable and hot-swappable.

Compatible with 6G, 3G and 1.5G Hard Drives

Bus interface: PCI-Express x1 slot(Compatible PCI-E X2 X4 X8 X16 )

Extension ports: 2 Port 3.0 interfaces

Feature: with large heat sink for long time safe working

Main Chips: Marvell 88SE9125

Support System

Windows 10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux

System disk and PCIE to 3.0 adapter card connection conditions and solutions:

1. PCIE to 3.0 interface mode is AHCI mode, if you want to insert the system disk in our card, the premise is that your system disk installed on the motherboard must be AHCI mode installation, otherwise it can not pass Our card adapter card boot system.

2. If it is determined that the system disk is inserted in the AHCI mode of the interface mounting system on the mainboard, then the hard disk can be directly inserted into our card, and then the mainboard BIOS is set to start the system disk as the first boot.

Attention: Don't Support as System

Kind Tips

1. With 3.0 data cable to achieve the best results.

What's Include

1 x PCI-E to 3.0 Extension Card

1 x High Profile Bracket
