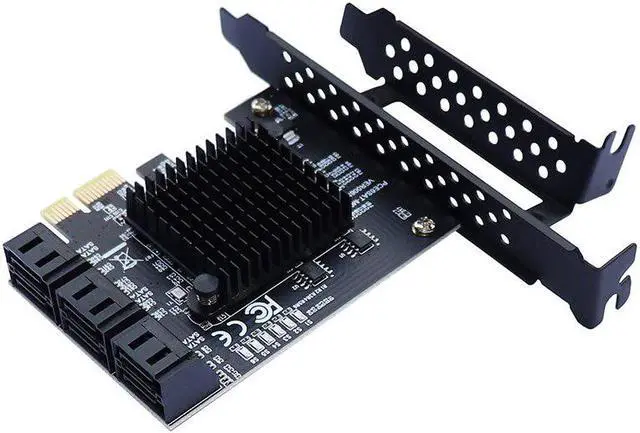

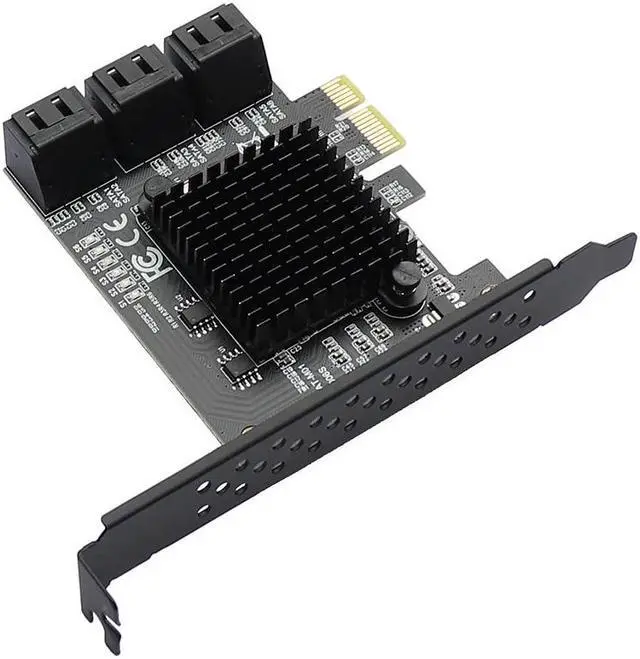

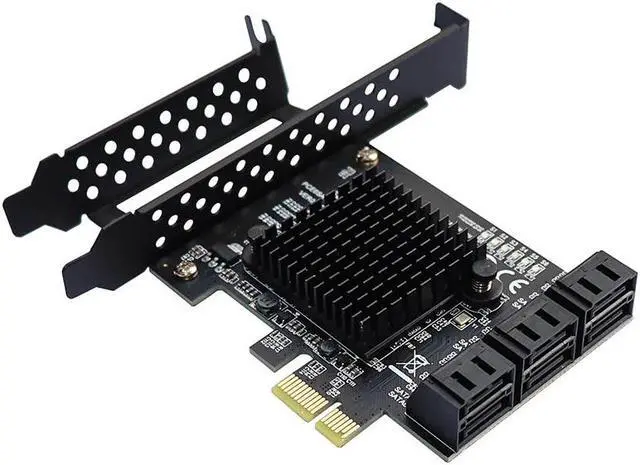

88SE9215 chip 6 ports SATA 3.0 to PCIe expansion Card PCI express SATA Adapter SATA 3 Converter with Heat Sink for HDD

88SE9215 chip 6 ports SATA 3.0 to PCIe expansion Card PCI express SATA Adapter SATA 3 Converter with Heat Sink for HDD

Features

Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0

Compliant with PCI-Express v2.0 specification, backward compatible with PCI-Express v1.0.

Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps

Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

Support 6 SATA

Support AHCI1.0 mode and IDE mode

Support for native command queue (NCQ)

Support FIS based on port multiplier switch or command switching.

Support hot swap and hot swap.

Compatible with SATA6G, 3G and 1.5G hard drives

Bus interface: PCI-Express x1 slot

Expansion interface: 6 SATA3.0 interfaces

System Requirements: One PCI Express X1 slot is available, supporting both PCI-E X2 X4 X8 X16

Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux

Product driver file

1. CD: ... DRIVER\SATA CARD\\91XX_92XX Setup, then select the appropriate folder according to the system.

The PCIE to SATA3.0 riser card is used as follows:

First, the system disk and PCIE to SATA3.0 riser card connection conditions and solutions:

1. The SATA interface mode of PCIE to SATA3.0 is AHCI mode. If you want to plug in the system disk on our card, the premise is that your system disk must be installed in AHCI mode when installing the system on the motherboard. Otherwise, it will not pass. Our card riser card starts the system.

Second, the common disk and PCIE to SATA3.0 connection conditions and solutions:

What's Include

1 x CD Driver
