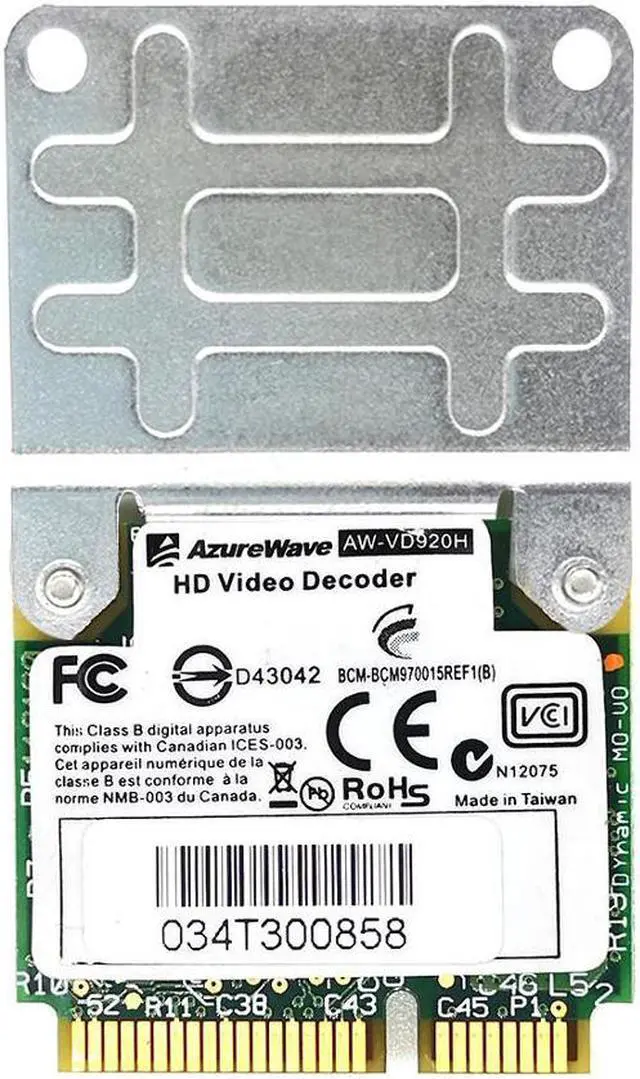

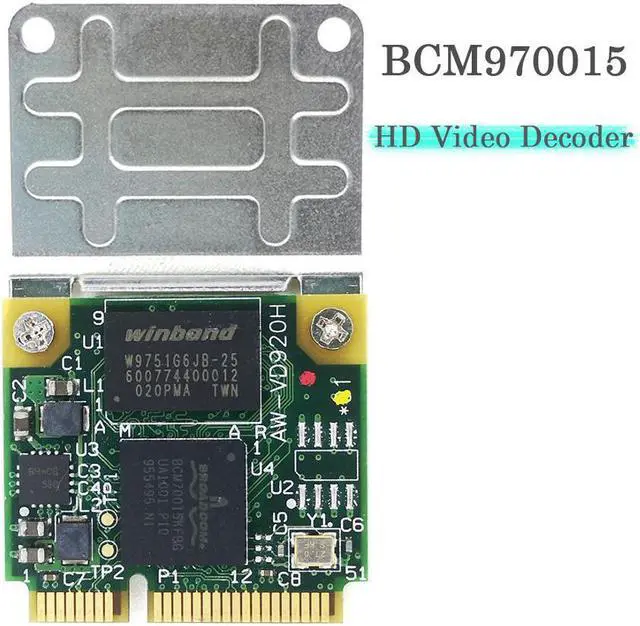

card 1080p for Broadcom Crystal HD Decoder BCM70015 BCM970015 AW-VD920H HD Crystal Hardware Decoder Mini PCIE Adapter

Features:

The BCM70015(marked as BCM970015 in the old version) Crystal HD is a video/audio hardware decoder in the PCIe Mini Card half-height form factor. It is designed to reduce CPU utilization and allows for full HD real-time decoding support for mobile platform solutions. The BCM70015 single-chip Crystal HD advanced media processor is a low cost, low power (less than 1 W energy consumption), highly integrated solution for high definition (HD) video playback applications.

It is targeted for multimedia applications such as HD playback and broadcast and other TV sources.

It is excellent for use in small form factor systems that require high-end graphics support but can't compromise power consumption or platform footprint.

Specifications:

Interface:Mini PCI Express  (half-height with extension adapter)

Chipset: AVC, DivX, MPEG-2/4, VC-1 Video/Audio Decoder: BCM70015

Supported Resolution: QCIF up to 1920 x 1088

HD Video Decoding Formats:

H.264/AVC HP @ L4.2 1080p60, 40 Mb/sec.

VC-1 Advanced Profile @ L3.0, 45 Mb/sec.

SMPTE VC-1 AP @ L3, 45 Mb/sec.

WMV9 (VC-1 SP @ ML and MP @ HL)

MPEG-4 Part-2 SP and ASP 1080p30

MPEG-2 MP @ HL, LL, and ML, 80 Mb/sec.

DivX 3.11, 4.1, 5.X, 6.X, XviD

Security:

AACS, AACS+

Support for various DRM implementations

Firmware verification

Secure (encrypted) external EEPROM memory storage for content and keys

DRAM protection

PCIe bus protection

Components: Single-chip Advanced Video Decoder

Package Inclueded:

1* BCM970015  Card
