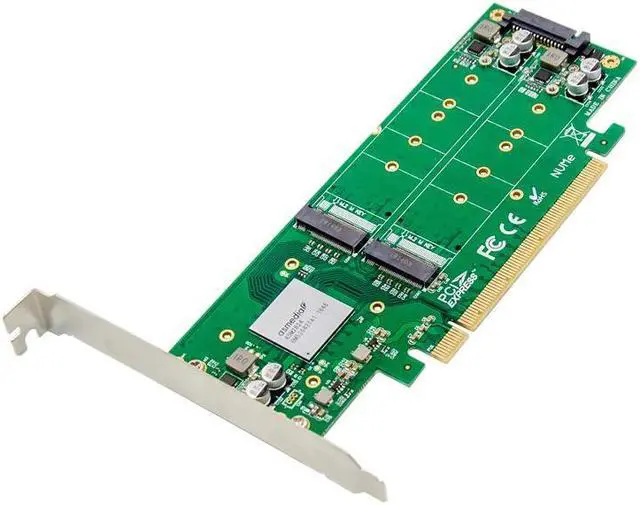

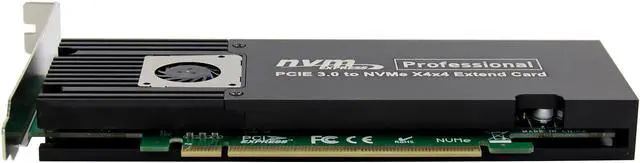

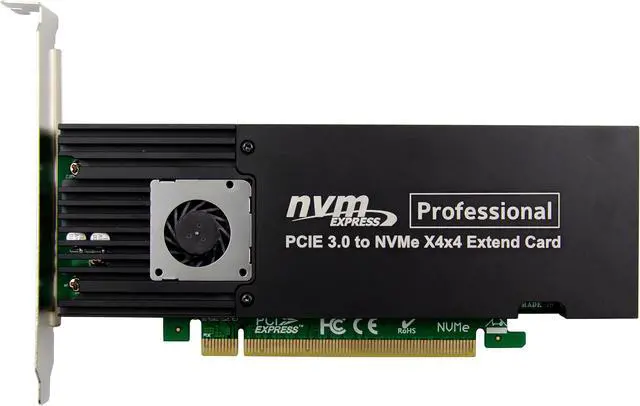

x16 ASM2824 to 4 port M.2 NVMe SSD Adapter expansion card Quad mkey nvme to pci-e converter

various high speed IO systems, including server, system storage or communication platforms.

Specification

Backwards compatible with 2.0 and 1.0

Supporting transferrate of 2.5Gb(250MB/s),5Gb(500MB/s),and 8Gb(1GB/s)per lane

PCI Express interface: x16

Supports NVM Express(NVMe)

Support for 4-Port x4 lane M.2 Key M NVMe SSD device

Supports M.2 SSD modules sizes:2230,2242,2260,2280

Supports M.2" M" key and "B+M" key with Protocol

2 Specification Revision 0.9

Automatic detection of lane configuration on boot-up

Support L1 substate deep power saving mode

Support wake up function in S3/S4

Support hot-plug, surprise remove

operating temperature range:0~85°C

Support operating system: Linux kernel3.17 or above,Win7,Win8,Win8.1,Win10 32or 64bit

No driver is required because the driver is transparent to the operating system

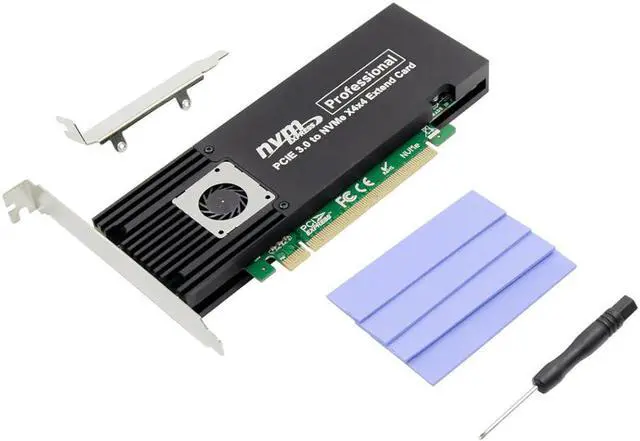

Package content

l 1 x x16 ASM2824 to x4*4 M.2 NVMe SSD adapter

1 x User's Manual

1 x Low profile bracket

3 x Screws

1x Screw driver

1 x heat sink

System Requirements

Linux-kernel3.17 or above,Win7/Win8/Win8.1/Win10 32or 64bit

One available PCI Express x16 slot
