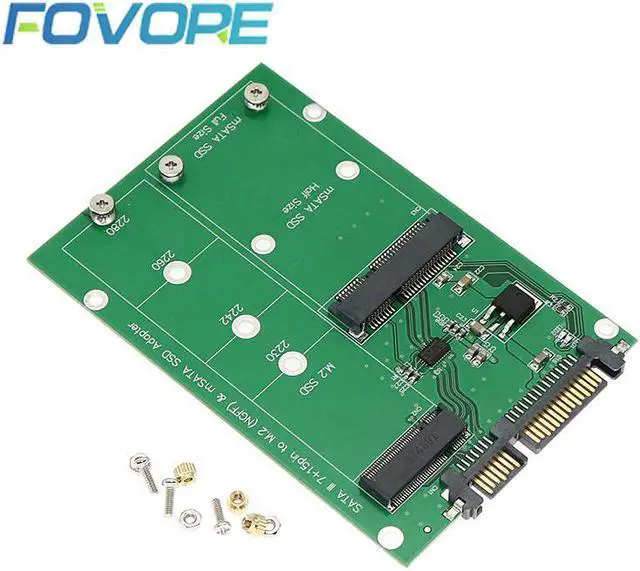

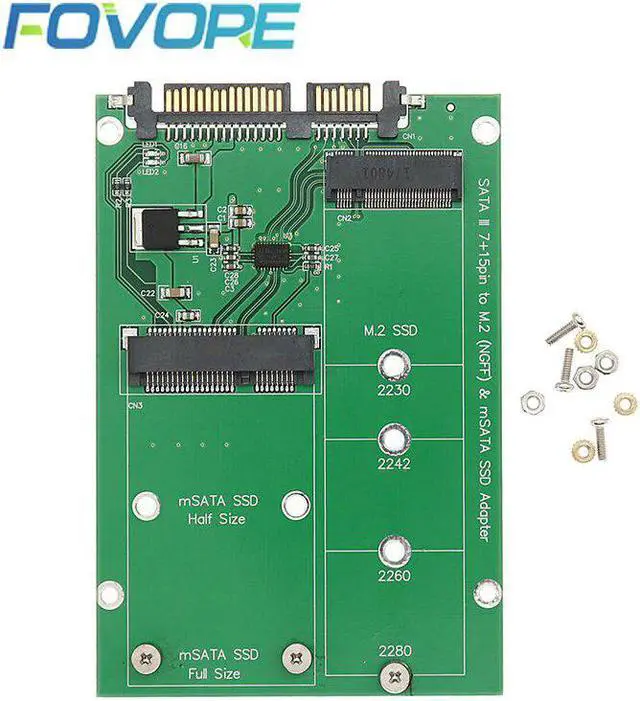

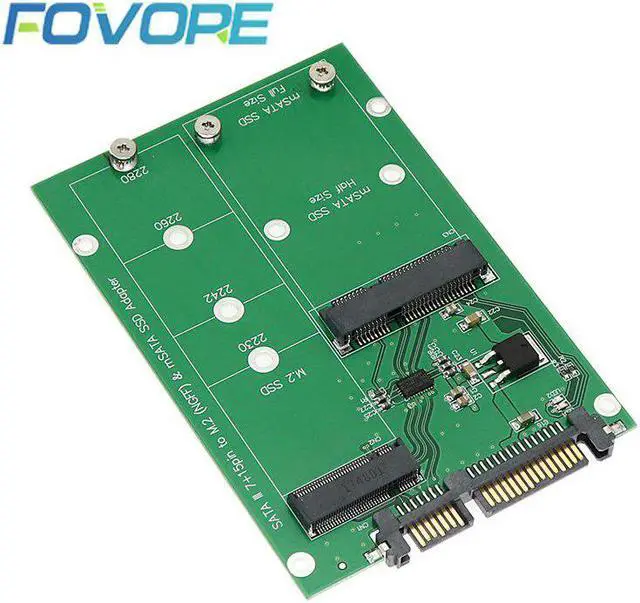

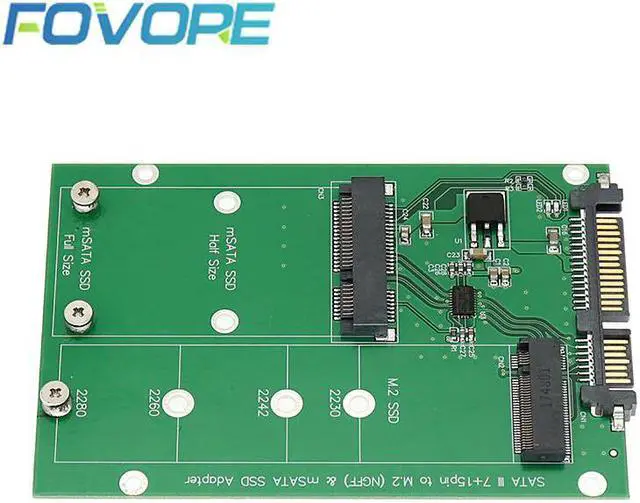

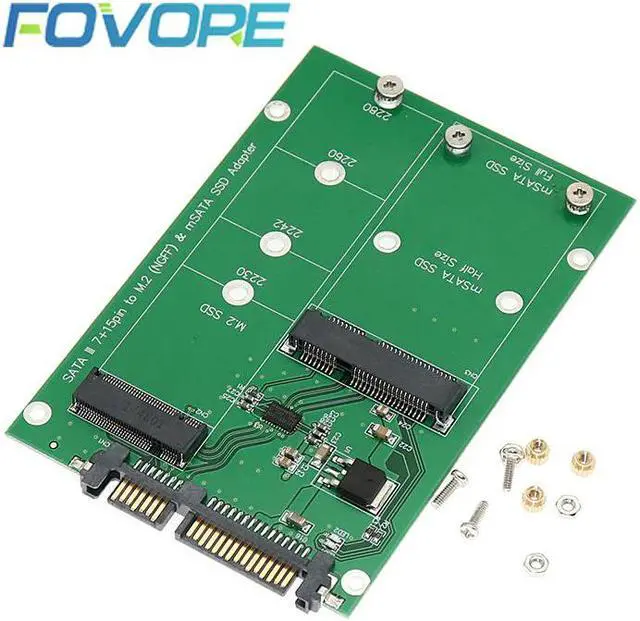

& M.2 (B-Key NGFF) 2in1 Sized Multiple SSD to SATA 3 III Adapter Converter

This card can be used for both purposes. It can connect 2.7CM/5CM SSD hard disk or convert (B KEY) M.2NGFF SSD hard disk of three specifications into SATA3.0 interface (two SSDs can not be used at the same time), give priority to identifying M.2NGFF SSD, and test OK 100% out of the factory.

Kindly Note:

If you insert two SSD at the same time, it can only recognize one SSD(M.2 NGFF SSD) first, but the hard disk doesn't work. (when the M.2 hard disk is inserted, the light is on. When the hard disk is inserted, the light is not lit.)

Features:

100% brand new.

M.2 (NGFF) & to SATA III Module.

Build in Mini PCI-e 52pin male connector.

Build in M.2 (NGFF) B key male connector.

2.5" SATA SSD Form Factor: 98 x 65 x 5mm.

Green LED indicate power status.

Red LED indicate active status.

Insert both M.2 & SSD on Board, M.2 SSD is the first priority, won't work.

Support SATA Reversion 3.2.

Compatible with PCI Express M.2 Spec. Version 1.0.

PWM synchronous buck converter Power IC.

3A maximum output current.

Short circuit protection.

In-rush current suppression.

Thermal shutdown protection.

ESD HBM (Human Body Mode)/2KV.

Support the M.2 (NGFF) SSD size

Type 2280-D2-B-M:80mm (L) *22mm (W)

Type 2260-D2-B-M:60mm (L) *22mm (W)

Type 2242-D2-B-M:42mm (L) *22mm (W)

Type 2230-D2-B-M:30mm (L) *22mm (W)

Support the SSD size

Half size :26.8mm (L) *30mm (W)

Full size :50.95mm (L) *30mm (W)

Applications:

Internet Appliances.

Industrial Computers.

Desk-top PC.

Kiosks.

Routers.

Firewalls.
