ADT- Graphics Cards Vertical Bracket PCIe 3.0 x16 graphics video card to PCIe 3.0 x16 slot extension cable for ATX PC-Case

ADT- PCI express 3.0 x16 Extension Cable

Brand name: ADT-

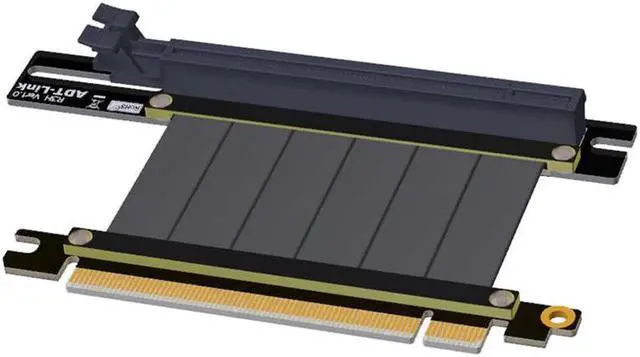

Product name: PCIe x16 to x16 extension cable

Product model: R33SH

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x16 graphics video card to PCIe x16 slot extension cable for ATX PC-Case

For Graphics Cards :RTX2080ti, GTX1080ti, Titan XP, radeon580, VEGA64......

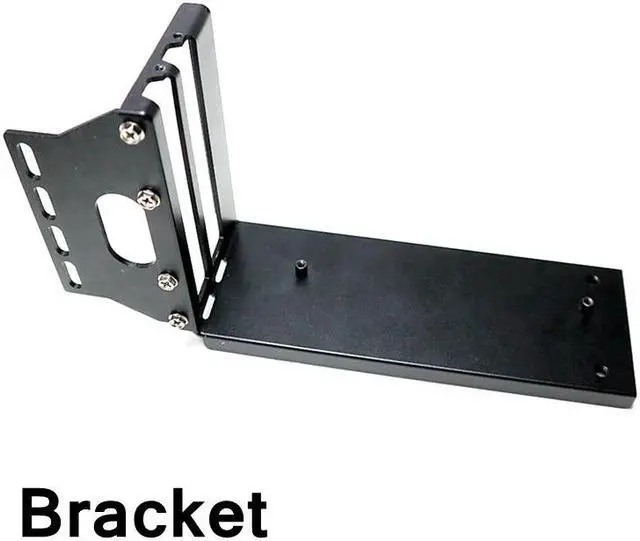

Product name: Graphics Cards Vertical Bracket

Materials: SGCC Steel

Net Weight: 0.2Kg

Dimension: 22cm x 14cm x 6.5cm

Support: PCIe area of your Case

Graphics card capacity: One graphics card per holder

Application: Vertical Graphics Card Holder Kit

Overview:

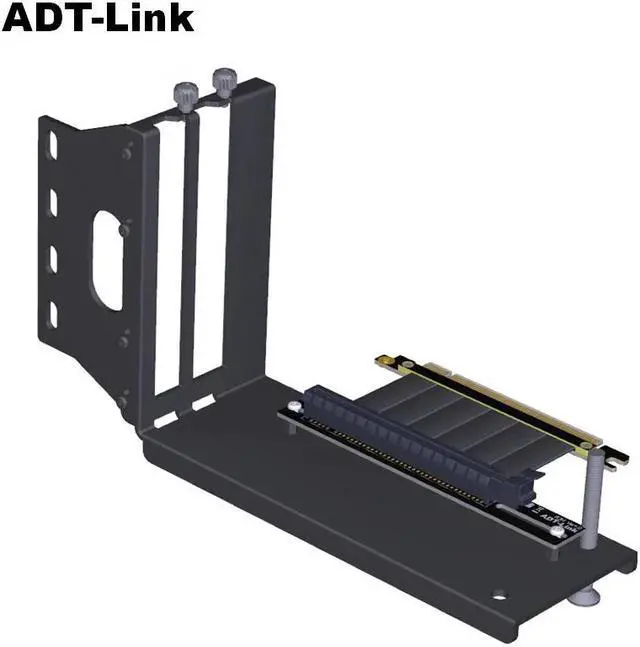

Designed for your regular ATX Case, this bracket allows you to vertically display a graphics card at your PCI slot area to nicely showcase it.

Installation couldn't be easier, install your graphics card on the holder, connect it to your motherboard with the included extension cable, and you're ready to go.

Assembly limitations: the chassis must have more than 6 pci slots, and the dimension of space length must be the length of video card plus 4.5cm to install.

Cable's  length does not include PCB and connector. Refer to the following dimensions

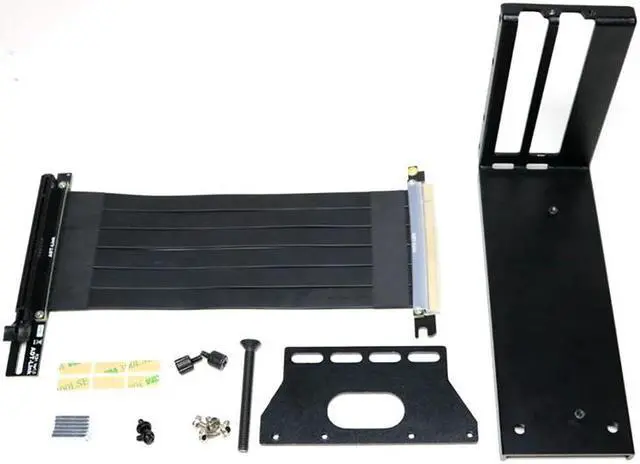

Packing list :

Graphics Cards Not include)

Graphics Cards Not include
