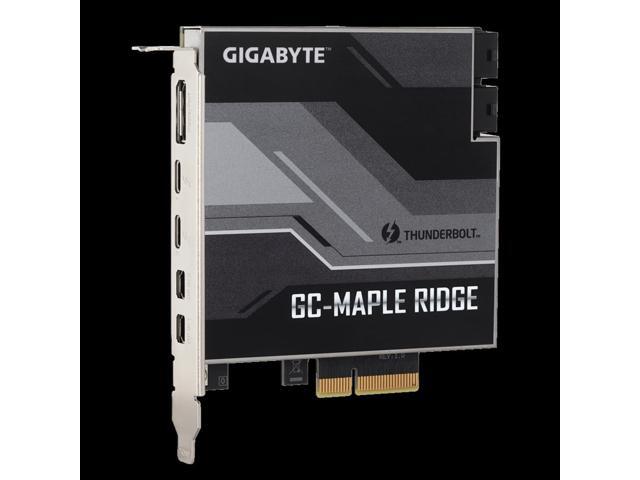

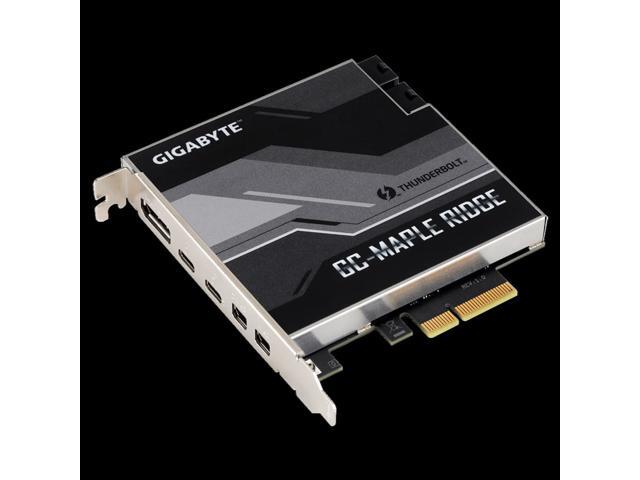

Gigabyte GC-MAPLE RIDGE Thunderbolt 4 PCI-Ex4 add on Card USB Type-C DisplayPort

Intel® Thunderbolt™ 4 Certified add-in card
Intel® JHL8540 Thunderbolt™ 4 controller
Dual Thunderbolt™ 4 Ports (USB Type-C™)
Max Bandwidth 40 Gb/s
DisplayPort 1.4 Capable with 4K Video Throughout
Daisy-chain up to 10 Devices (5 devices per port)
Support PD3.0 standard (up to 97W)
40 Gb/s Intel® Thunderbolt™ 4 Certified Add-in Card
The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 4 connectivity without having to upgrade to a whole new system.
Port 1 : Support 5V/3A 9V/3A 15V/3A 19V/5A Power Delivery Spec
Port 2 : Support 5V/3A 9V/3A Power Delivery Spec
Dual Thunderbolt™ 4 – The fastest 40Gb/s single-wire connection
Delivers speeds of up to 40Gb/s - that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.
