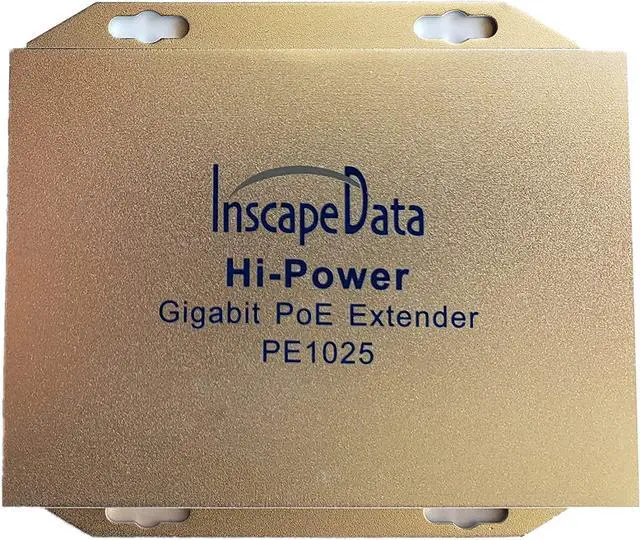

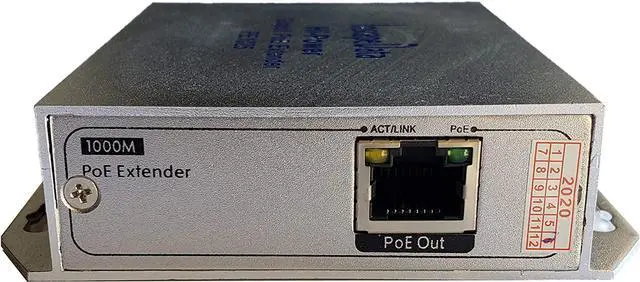

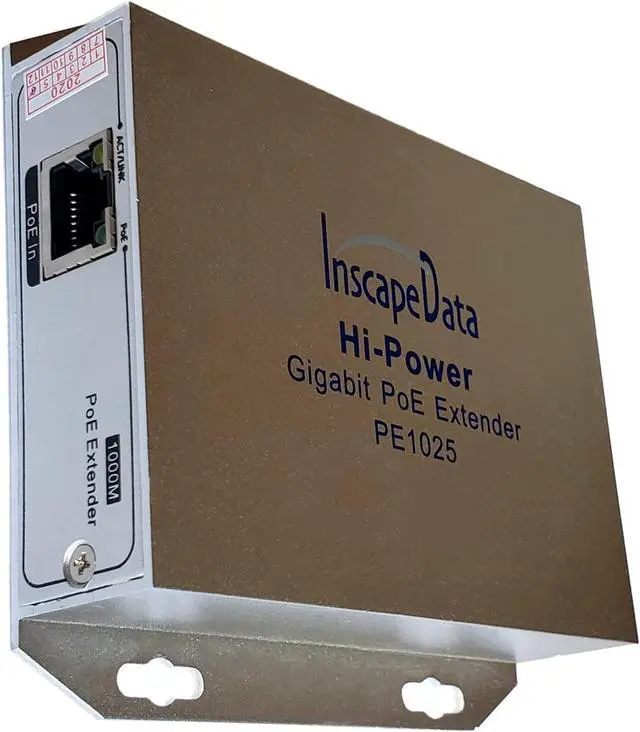

Inscape Datas LinkPower PE1025 single port 10/100/1000M 802.3 at 8PoE (Power over Ethernet) Extender is a simple device that is capable of extending the Ethernet transmission distance from 100 meters to 200 meters on a CAT5e/6 UTP cable. It is simple as plug and play with no additional power supply and set up required. It offers great flexibility to extend the distance of your PoE network and break the 100 meters limit distance. The PE1025 PoE eXtender supports forwards both Ethernet data and PoE power to remote devices with the following key features:
Extend PoE distance through Cat5e Ethernet cables from 100 Meters to 200 Meters
Compatible with IEEE 802.3 af/at PSE devices
Support 10/100/1000M data transmission through RJ45 port
Auto-negotiation and auto-MDIX fast Ethernet RJ45 port
Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
IEEE 802.3 at; IEEE 802.3 i; IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.1 at DTE Power via MDI
100Base-TX: Cat5 UTP (100 meters)
Store-And-Forward architecture
2x RJ45 PoE ports; maximum 25.5W for single PoE port
Front-end receiving and Back-end supply power
