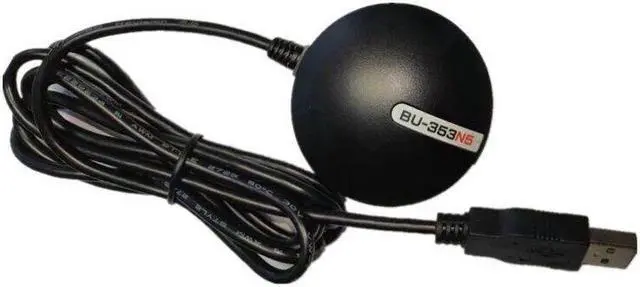

GlobalSat BU-353N5 USB GPS Receiver Satellite Navigation Position Enhancer Media

Product Description:

BU-353N5 features a USB interface, high GNSS sensitivity, and low power consumption. The BU-353N5 is powered by High sensitivity GNSS solution. The BU-353N5 can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. The BU-353N5 supports 75 channel all-in-view tracking.
BU-353N5 acquires and tracks satellites in the shortest time.
The cable allows for easy routing to your equipment behind, headliners and side panels and terminates to a custom USB connector.

Features:
High sensitivity solution

Very high chipset sensitivity (Tracking Sensitivity: -165 dBm)

Extremely fast TTFF (Time To First Fix) at low signal level

Support NMEA 0183 data protocol

Built-in Backup power to reserve system data for rapid satellite acquisition

Built-in patch antenna

Super-cohesive magnetic for mounting on the car

Water resisted and non-slip on the bottom

USB interface connection port

LED indicator for GPS fix or not fix

LED OFF: Receiver switch off

LED ON: No fixed, Signal searching

LED Flashing: Position Fixed

Specifications

:

Chipset: SiRF Star IV

Frequency: L1 1575.42MH z

C / A code: 1.023 MHz chip rate

Number of Channels: 48 channels tracking

Sensitivity: -163 dBm

Accuracy:

Location: 10 meters, 2D RMS

5 meters, 2D RMS, WAAS enable

Rate: 0.1 m / s

Time: 1 microsecond synchronized satellite

Coordinate information:

Default: WGS-84

Acquisition Time:

Readmission: Average 0.1 seconds

Hot Start: Average 1 seconds

Warm start: 38 sec average

Cold and warm start: 42 sec average

Related restrictions:

Height: 18, 000m (60, 000 ft) maximum

Rate: 515 m / sec (10, 000 knots) maximum

Gravity: Less than 4G

Power:

Main power input: 4.5V ~ 6.5V DC input

Power consumption: 80mA

Agreement:

Operational level: TTL level

Output Voltage: 0V ~ 2.85V

Transfer rate: 4, 800 bps

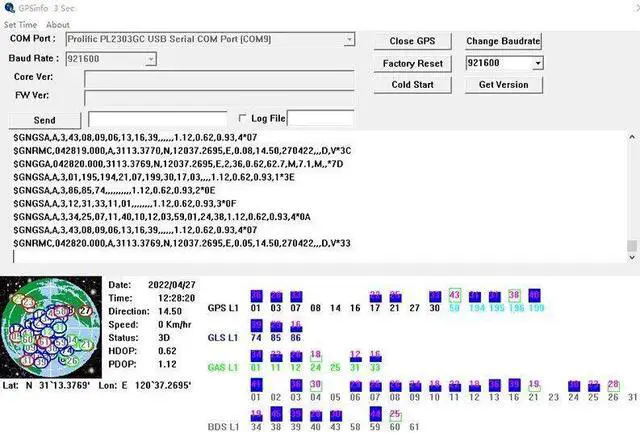

Output format: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL

Physical Characteristics:

Size: 53mm diameter, 19.2 mm height

Cable length: 1.5 m

Operating temperature: -40 ° C to +85 ° C

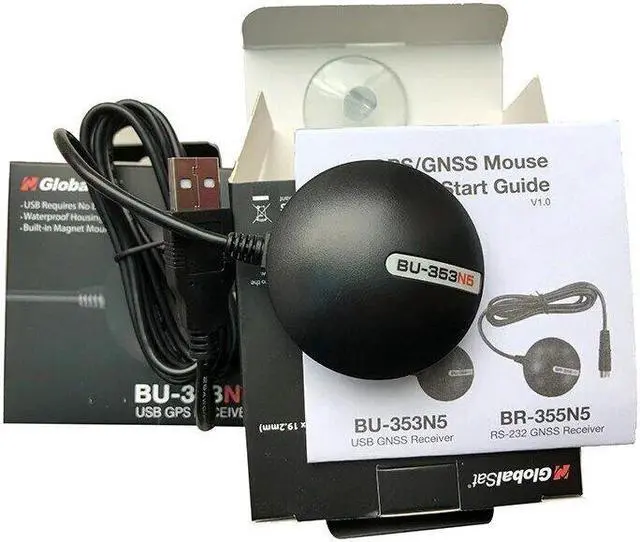

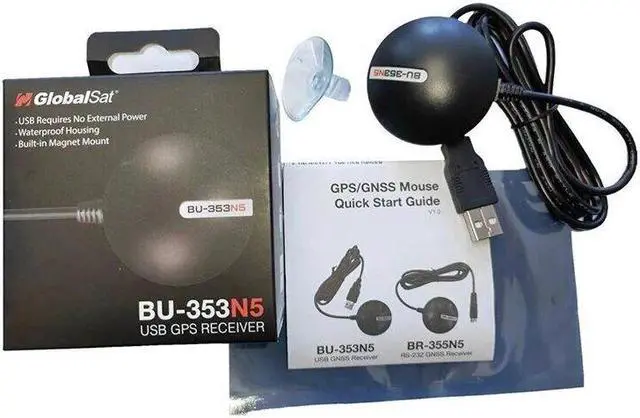

Package Included:

1. USB GPS Receiver

2. Suction Cup

3. CD Driver with user manual
