BUCIER PCIE to USB 3.2 Gen2 10G Expansion Card, 5 Port 3X USB Type-A and 2X Type-C Ports, Self-Powered, USB3.2 Hub Controller Adapter for Windows 10/11
Limited time offer, ends 09/20 By Electronics store
- 5 Ports 10GThis USB card has 3 USB Type-A and 2 USB Type-C Ports, supports USB 3.2 Gen2 data transfer up to 10Gbps, backward compatible with USB3.0 & USB2.0 & USB1.1. Connects to a wide range of USB devices such as USB keyboards, USB mice, USB speakers, USB KVM switches, USB HUBs, and many more USB-A and USB-C interface devices.
- PCIE X4Compatible for PCIe slot X4,X8,X16, not support X1,X2. Default with standard bracket, support multiple installation such as PC, server, workstation, NAS, etc.
- Self-Powered SupplyPlug and play without the need to install any power cable, very easy to install. Maximum current 1A each USB3.2 Type-A, 3A each USB3.2 Type-C. Supports USB battery charging Specification v1.2
- Easy UsedSupport Windows 10/11 OS system, drive-free installation, plug and play. Includes a CD driver disk if your system requires driver installation. Please note that due to his 5 number of ports and size, Low-Profile Bracket installation is not supported!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

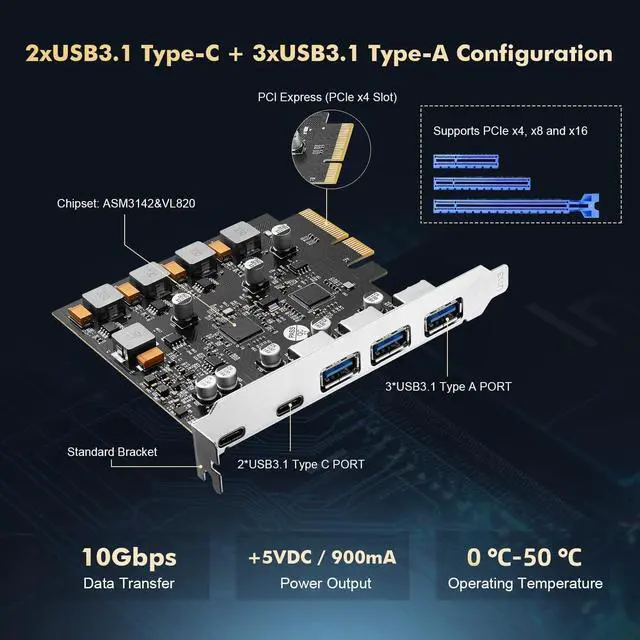

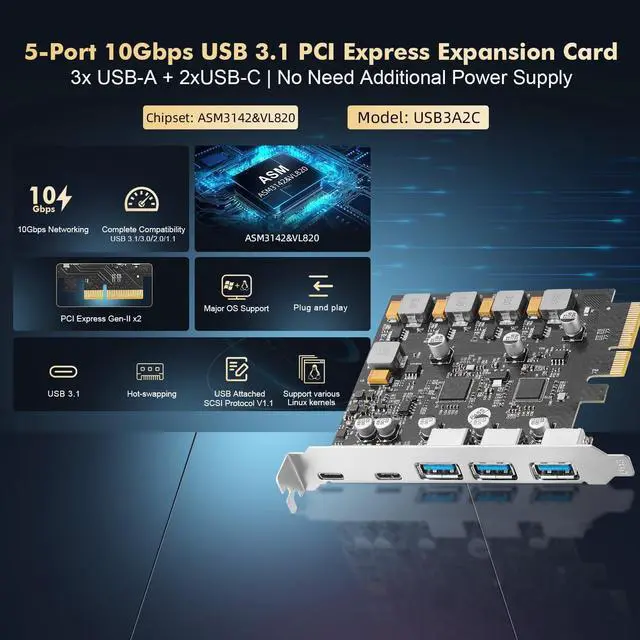

The PCIe ASM3142 3A2C USB 3.1 10Gbps Card is provides three USB-A and two USB-C ports by ASM3142&VL820 combination chips, bridging PCI Express to USB 3.1 Gen-II, compliant with USB 3.1 Specification Revision 1.0 and Intel eXtensible Host Controller Interface Specification revision 1.1, it supports the new feature of USB 3.1 Gen2, named multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB 3.1 Gen2 bus. The USB 3.1 Card application of Desktop PC, Workstations, Servers, etc.
Key Features:
Support PCI Express Gen-II x2
Compliant with PCI Express Base 3.0 Specification
Compliant with PCI Express card Electromechanical 2.0 specification
Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Compliant with eXtensible Host Controller Interface specification Revision 1.1
Compliant with USB Attached SCSI Protocol Revision 1.0
Compliant to USB Type-C Specification Rev 1.3
PCI Express interface: X4
Support high bandwidth performance with low latency
Support PCI Express Link power management
Support 3x USB 3.1 Type-A and 2x USB 3.1 Type-C
Each port transmission speeds up to USB 3.1 Gen-II 10Gbps
Maximum current 1A each USB 3.1 Type-A
Maximum current 3A each USB 3.1 Type-C
Supports USB battery charging Specification v 1.2
Support for Vendor specific charging modes eg, Apple 2.4A, Samsung, etc

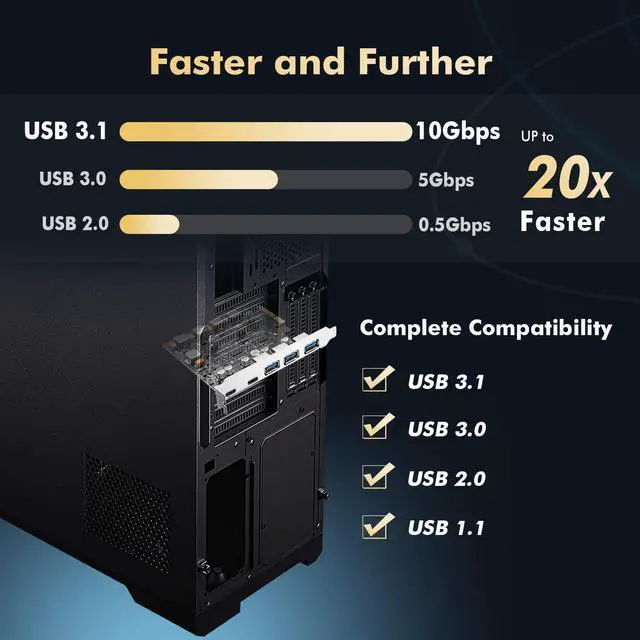

Support USB SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), HighSpeed (480Mbps), FullSpeed (12Mbps), and LowSpeed( 1.5M bps) transmission

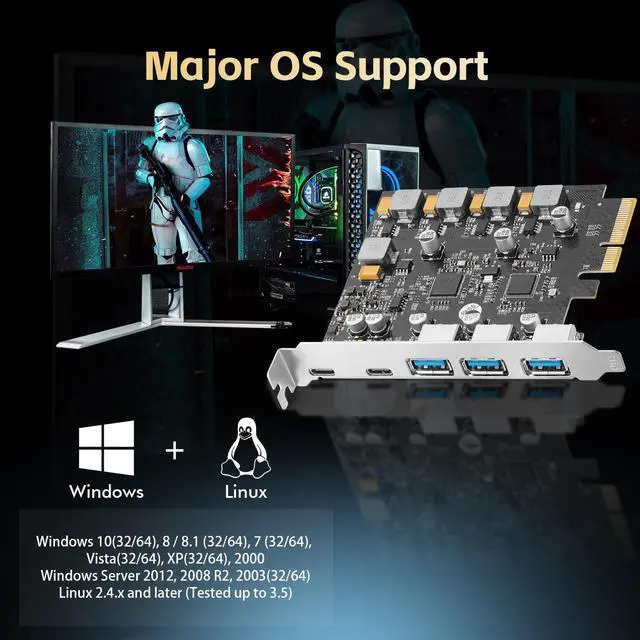

Support proprietary driver for Windows 7, and in box driver for Windows8, Window 8.1, Server2012 and Windows 10
Support various Linux kernels
Chipset: ASM3142+VL820
Hardware Installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computers cover.
3. Remove the slot bracket from an available PCIe X16 slot.
4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot brackets holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Complete PackageIncludes all you need for a perfect solution: 1 x PCI-E to 5 USB-ports, 1 x CD Driver. Provide full life-cycle support.
Key Features:
Support PCI Express Gen-II x2
Compliant with PCI Express Base 3.0 Specification
Compliant with PCI Express card Electromechanical 2.0 specification
Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Compliant with eXtensible Host Controller Interface specification Revision 1.1
Compliant with USB Attached SCSI Protocol Revision 1.0
Compliant to USB Type-C Specification Rev 1.3
PCI Express interface: X4
Support high bandwidth performance with low latency
Support PCI Express Link power management
Support 3x USB 3.1 Type-A and 2x USB 3.1 Type-C
Each port transmission speeds up to USB 3.1 Gen-II 10Gbps
Maximum current 1A each USB 3.1 Type-A
Maximum current 3A each USB 3.1 Type-C
Supports USB battery charging Specification v 1.2
Support for Vendor specific charging modes eg, Apple 2.4A, Samsung, etc
Support USB SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), HighSpeed (480Mbps), FullSpeed (12Mbps), and LowSpeed( 1.5M bps) transmission
Support proprietary driver for Windows 7, and in box driver for Windows8, Window 8.1, Server2012 and Windows 10
Support various Linux kernels
Chipset: ASM3142+VL820
Hardware Installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computers cover.
3. Remove the slot bracket from an available PCIe X16 slot.
4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot brackets holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Complete PackageIncludes all you need for a perfect solution: 1 x PCI-E to 5 USB-ports, 1 x CD Driver. Provide full life-cycle support.
