BUCIER PCIE to USB 3.2 Gen2 10Gbps Expansion Card, 2 Port USB Type-A and Type-C Ports, Self-Powered, Low Profile Bracket, USB3.2 Hub Controller Adapter for Windows 10/11
Limited time offer, ends 09/20 By Electronics store
- 2 Ports 10GThis USB card has 1 USB Type-A and 1 USB Type-C Ports, supports USB 3.2 data transfer up to 10Gbps, backward compatible with USB3.0 & USB2.0 & USB1.1. Connects to a wide range of USB devices such as USB keyboards, USB mice, USB speakers, USB KVM switches, USB HUBs, and many more USB-A and USB-C interface devices.
- PCIE X4Compatible for PCIe slot X4,X8,X16, default with standard bracket, also include low profilce bracket, support multiple installation such as PC, server, workstation, NAS, etc.
- Dual-mode Power SupplyPlug and play on most new motherboards without the need to install any power cables. Aslo support SATA 15pin power connector, if the motherboard model is older and cannot provide enough power, it can be powered from the PSU.
- Easy UsedSupport Windows 10/11 OS system, drive-free installation, plug and play. Includes a CD driver disk if your system requires driver installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

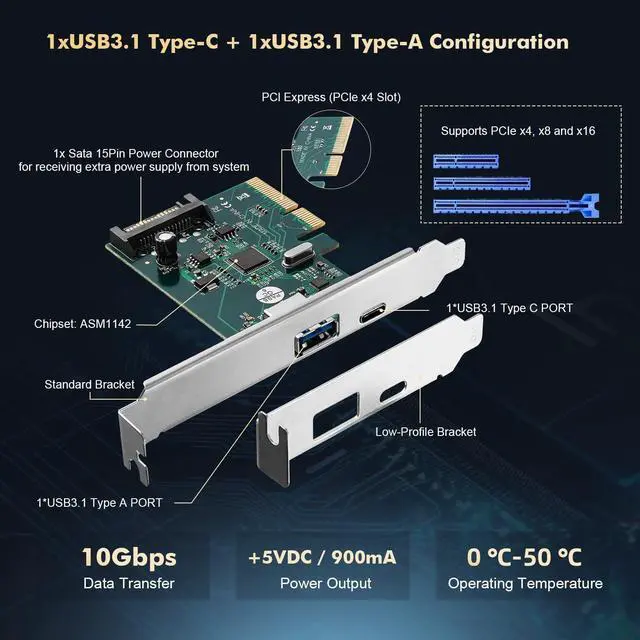

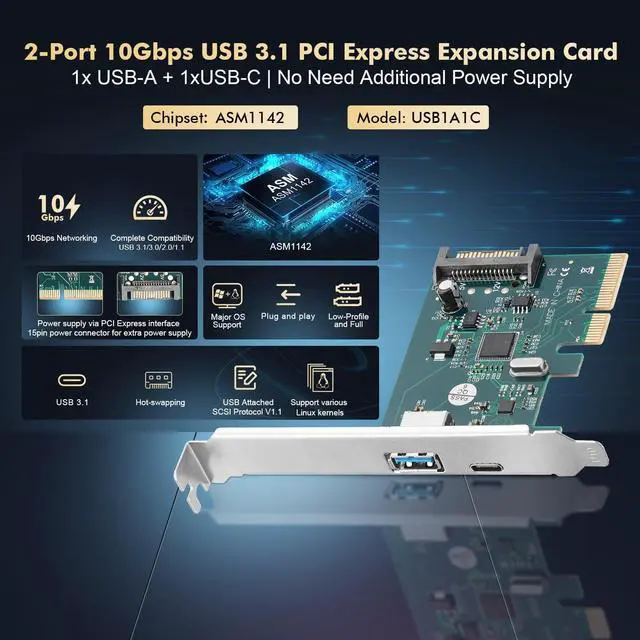

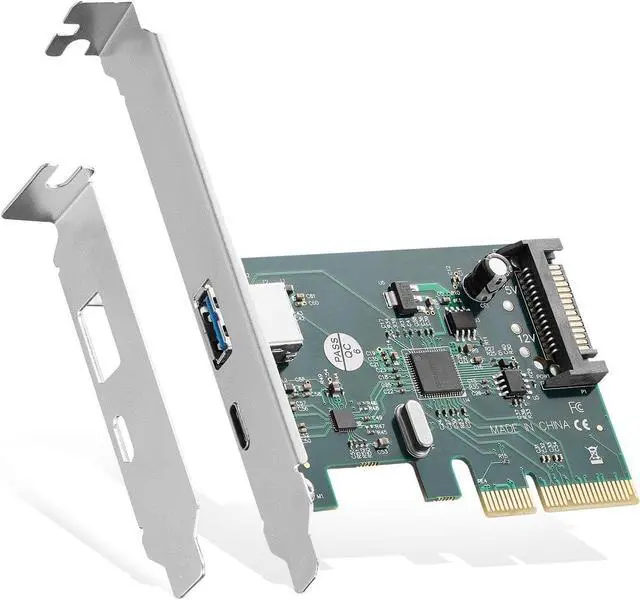

PCI-E ASM1142 1xType-C+ 1xType-A is a universal serial bus USB 3.1 host controller of ASMedia, which complies with the for Scalable Thermal Controller Interface Specification Revision 1.1. It bridges the PCI Express interface to the two ports of USB 3.1. Up to 10Gbps high-speed bandwidth, backward compatible with older USB functions and devices. It can configure PCI Express as Gen 2x2 or Gen 3x1, conform to the USB Attach SCSI protocol revision 1.0, and support the debugport function.
Key Features:
Chipset: ASM1142
PCI Express Base Specification Revision 2.0 dual-lane (x2)
Compliant with Universal Serial Bus 3.1 specification Gen2
Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
Compliant with PCI Bus Power management interface Specification Revision 1.2
Compliant with USB Attached SCSI protocol Revision 1.1
Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
Supports USB data transfer rate of 10G/5G/480/12/ 1.5 Mbps.
1*USB 3.1 Type C PORT, 1*USB 3.1 Type A PORT
Each USB port supplies maximum +5VDC / 900mA power output to USB device
Built-in over current protection on each USB port
Support device remote wakeup function from USB keyboard or mouse

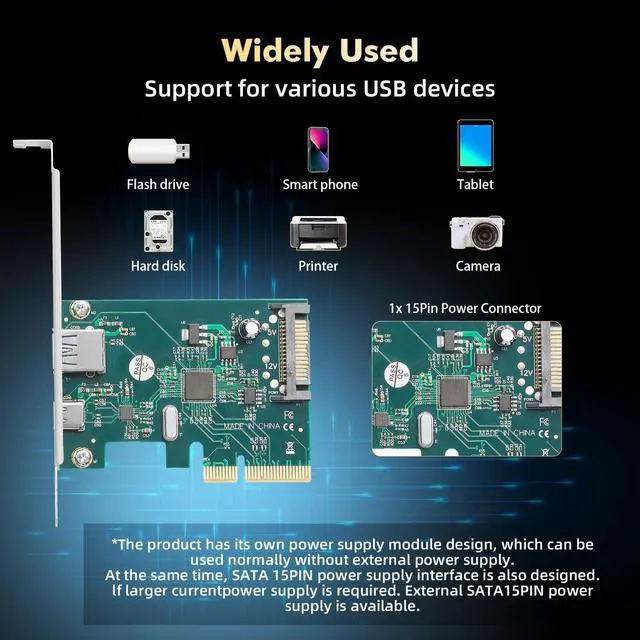

Built-in SATA-15pin power connector for receiving extra power supply from system
Hot-swapping feature allows connect/disconnect device without powering down the system.

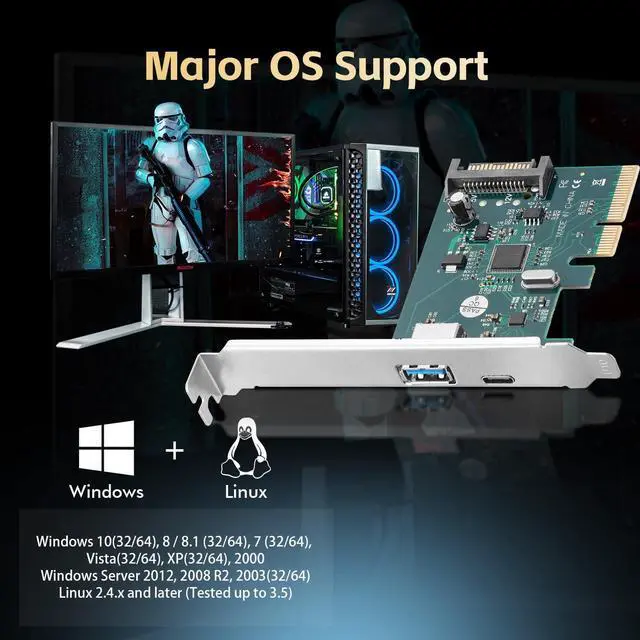

Support Windows Server2003/Vista/7/8/ 8.1 /server2012 R2 x64 (32/64 bit)
Hardware Installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computers cover.
3. Remove the slot bracket from an available PCIe X16 slot.
4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot brackets holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Complete PackageIncludes all you need for a perfect solution: 1 x PCI-E to 2 USB-ports, 1 x Low-Profile Bracket. 1 x CD Driver. Provide full life-cycle support.
Key Features:
Chipset: ASM1142
PCI Express Base Specification Revision 2.0 dual-lane (x2)
Compliant with Universal Serial Bus 3.1 specification Gen2
Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
Compliant with PCI Bus Power management interface Specification Revision 1.2
Compliant with USB Attached SCSI protocol Revision 1.1
Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
Supports USB data transfer rate of 10G/5G/480/12/ 1.5 Mbps.
1*USB 3.1 Type C PORT, 1*USB 3.1 Type A PORT
Each USB port supplies maximum +5VDC / 900mA power output to USB device
Built-in over current protection on each USB port
Support device remote wakeup function from USB keyboard or mouse
Built-in SATA-15pin power connector for receiving extra power supply from system
Hot-swapping feature allows connect/disconnect device without powering down the system.
Support Windows Server2003/Vista/7/8/ 8.1 /server2012 R2 x64 (32/64 bit)
Hardware Installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computers cover.
3. Remove the slot bracket from an available PCIe X16 slot.
4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot brackets holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Complete PackageIncludes all you need for a perfect solution: 1 x PCI-E to 2 USB-ports, 1 x Low-Profile Bracket. 1 x CD Driver. Provide full life-cycle support.
