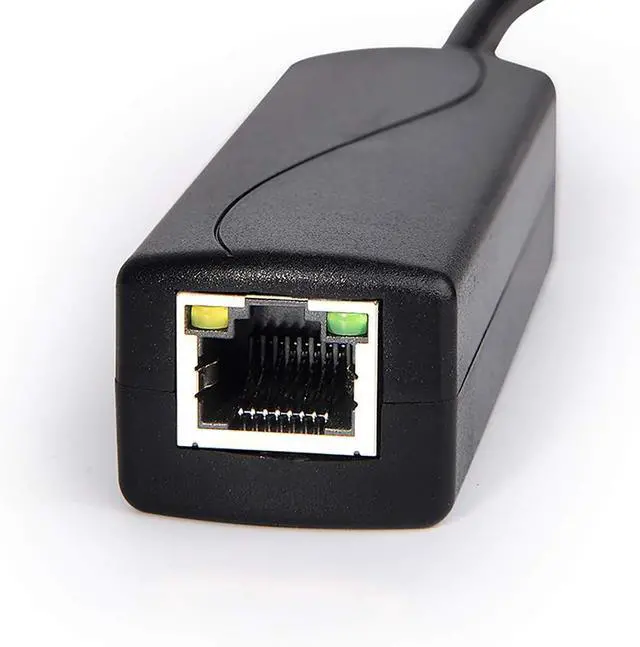

BUCIER Gigabit PoE Splitter 12V 1A Output, IEEE 802.3af Standard Compliant 10, 100, 1000Mbps Power Over Ethernet Splitter Adapter for Security Camera CCTV Surveillance 5.5x2.1mm DC Plug
Limited time offer, ends 09/20 By Electronics store
- PoE 48V to DC 12V/1AConvert 48V PoE to DC 5.5*2.1 mm 12V/1A output. DC cable for power supply and RJ45 cable for netework. Non-PoE devices with DC 5.5*2.1 mm ports can enjoy the same convenience of POE power as POE devices.
- Max 12W DC OutputAuto detecte, appropriate power output to connected devices. Up to Max 12W (12V/1A) via DC 5.5*2.1 mm connector.
- Gigabit Speed up to 1000MbpsSupport fast gigabit transmission, compatible with 10/100/1000Mbps rates.
- Plug and Play Simply connect to terminal equipment and work, easy to use, avoid complex configuration.

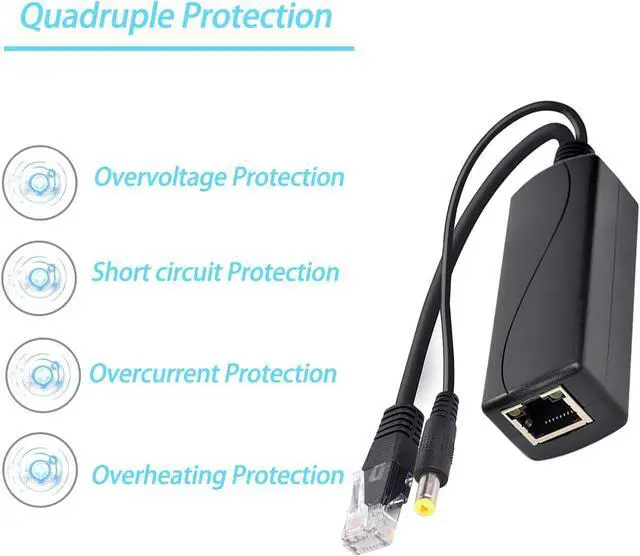

- Multiple ProtectionIsolation circuit protection, Short circuit protection, Overvoltage protection, effectively protect your equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
Overview:
PoE splitter is an economical and practical PoE remote power equipment base on IEEE 802.3 af standard.
It can separate the power and data via cable transmission and proper matching use with PoE switch or PSE injector which meet standard IEEE 802.3 af, Provides power and data at the same time for the terminal device does not support PoE.

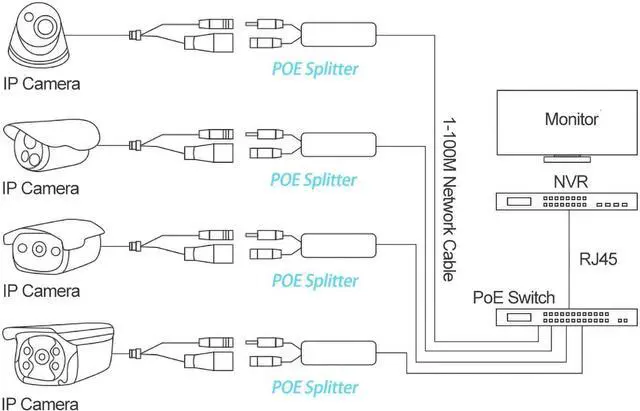

PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other PoE practical place, and is not restricted by layout of power line.
Support international standard IEEE 802.3 af (13W);
POE port Support 10/100/1000Mbps data transmission
PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
12V power output, easy to access Poe network for non-PoE terminal
Support the isolation circuit protection, can effectively protect electrical equipment.
Support the short circuit, overvoltage protection
1500V high voltage isolation
Transfer Rate: 10/100/1000Mbps (Gigabit)
Power: Input 48V DC / 0.35A, Output 12V/1A
Standard: IEEE 802.3 af( 15.4W )
TRNF: 1/2(+), 3/6(-); 4/5(+), 7/8(-)

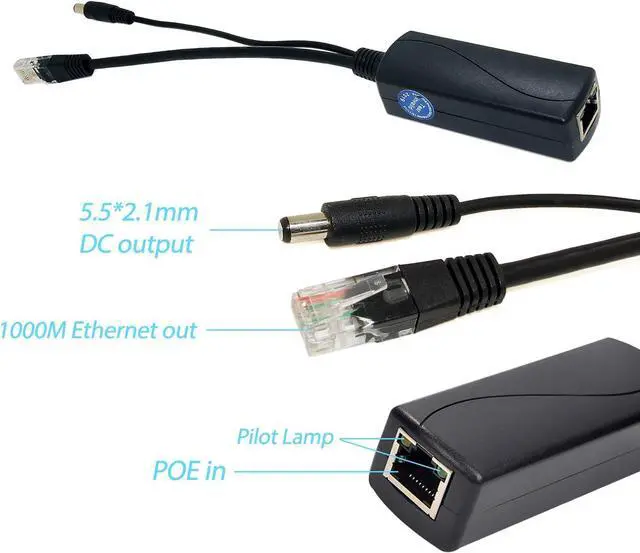

Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output( 5.5 x 2.1 mm)
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
LED: Yellow PoE lamp
Temperature: Work within -20~50°, Storage within -30~60°
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
DC Jack: 5.5 x 2.1 mm

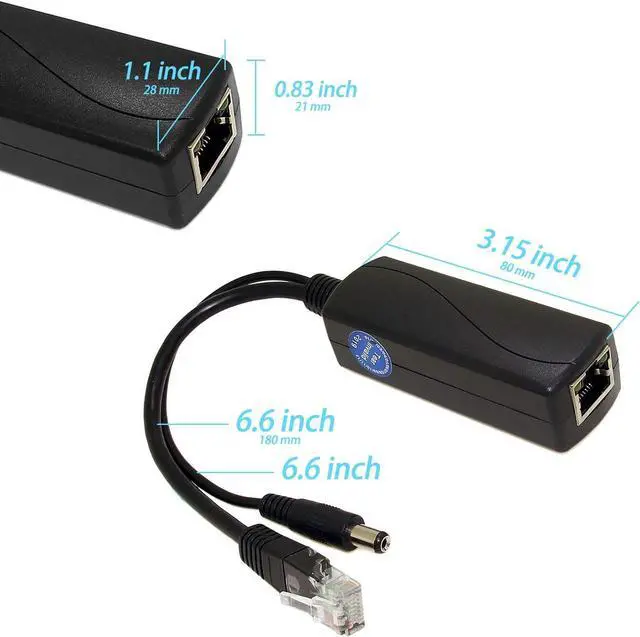

Dimension: 27.5 x 2.8 x 2.3 cm
Weight: 0.05 kg
Package Content:
1 x POE Splitter
Overview:
PoE splitter is an economical and practical PoE remote power equipment base on IEEE 802.3 af standard.
It can separate the power and data via cable transmission and proper matching use with PoE switch or PSE injector which meet standard IEEE 802.3 af, Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other PoE practical place, and is not restricted by layout of power line.
Specifications
:Support international standard IEEE 802.3 af (13W);
POE port Support 10/100/1000Mbps data transmission
PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
12V power output, easy to access Poe network for non-PoE terminal
Support the isolation circuit protection, can effectively protect electrical equipment.
Support the short circuit, overvoltage protection
1500V high voltage isolation
Transfer Rate: 10/100/1000Mbps (Gigabit)
Power: Input 48V DC / 0.35A, Output 12V/1A
Standard: IEEE 802.3 af( 15.4W )
TRNF: 1/2(+), 3/6(-); 4/5(+), 7/8(-)
Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output( 5.5 x 2.1 mm)
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
LED: Yellow PoE lamp
Temperature: Work within -20~50°, Storage within -30~60°
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
DC Jack: 5.5 x 2.1 mm
Dimension: 27.5 x 2.8 x 2.3 cm
Weight: 0.05 kg
Package Content:
1 x POE Splitter
