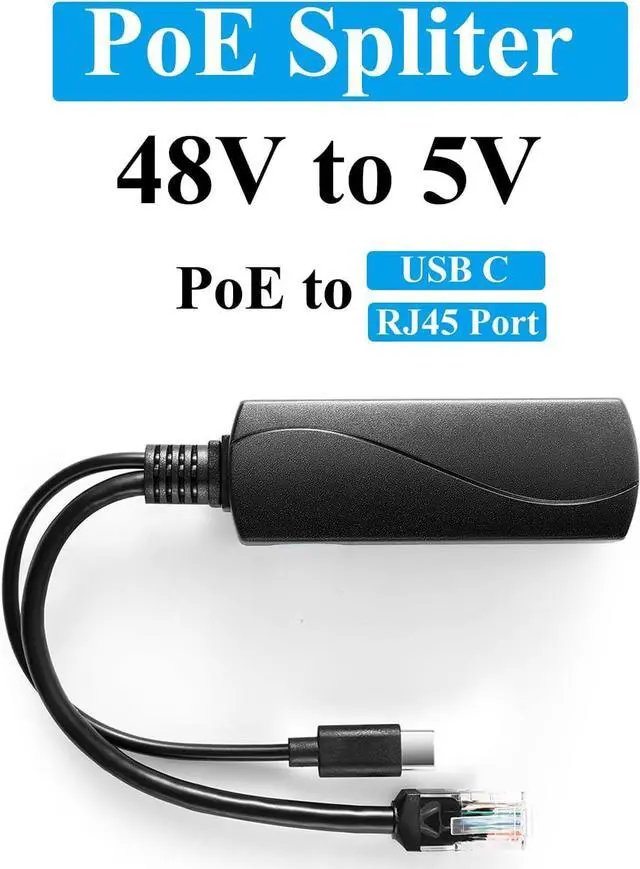

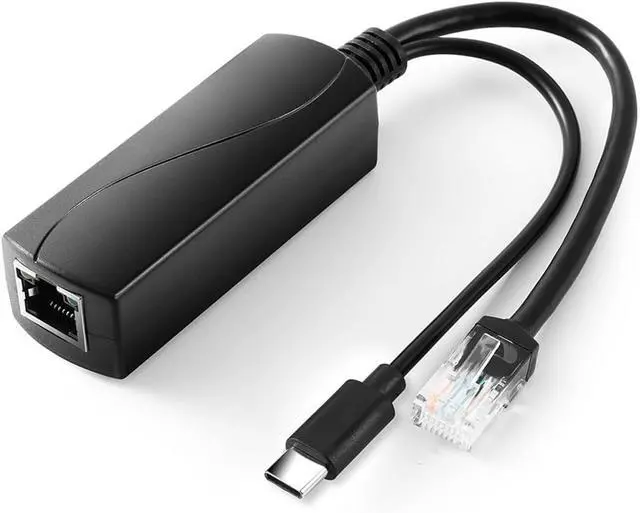

BUCIER Type C PoE Splitter 5V 2.4A Output, IEEE 802.3af Standard 10, 100Mbps for Type C RJ45 Port Power Over Ethernet Type C Splitter Adapter

Product Description
Overview:
TYPEC PoE splitter is a new model: With RJ45 port and DC port with TYPE C.
TYPEC PoE splitter base on IEEE 802.3 af standard and can separate the power and data via cable transmission.
Proper matching use with POE switch or PSE injector which meet standard IEEE 802.3 af, provides power and data at the same time for the terminal device does not support PoE.
Output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other POE practical place, and is not restricted by layout of power line.

Specifications

:
Support international standard IEEE 802.3 af( 12.5W );
POE port Support 10/100Mdata transmission
PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
5V/ 2.4A power output using Type-C, the Type-C port only for power-charging.
Support the isolation circuit protection, can effectively protect electrical equipment.

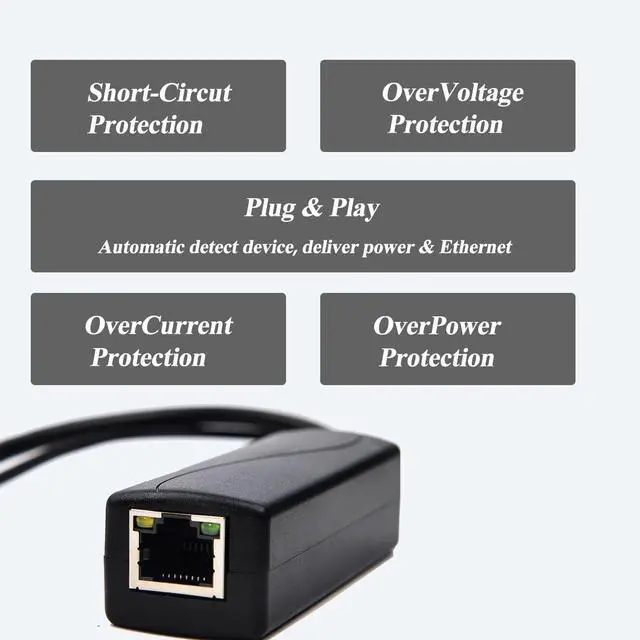

Support the short circuit, overvoltage protection
1500V high voltage isolation

Transfer Rate: 10/100M

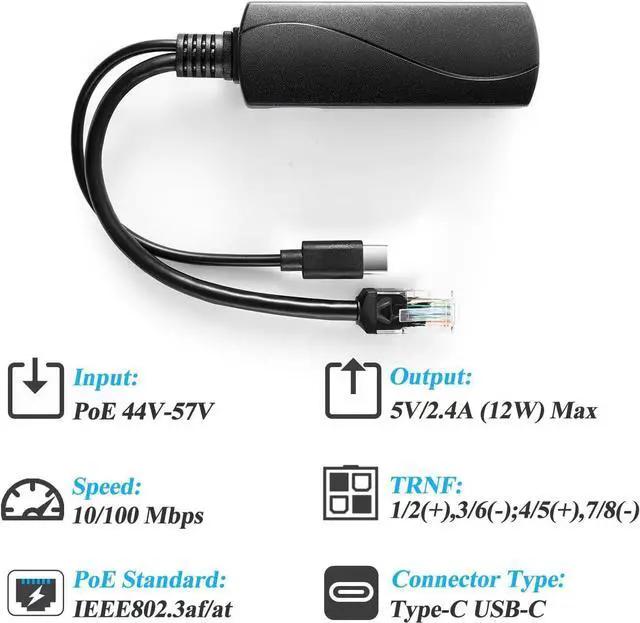

Power: Input 48V DC / 0.35A, Output 5V/ 2.4A
Standard: IEEE 802.3 af( 12.5W )
TRNF: 1/2(+), 3/6(-); 4/5(+), 7/8(-)

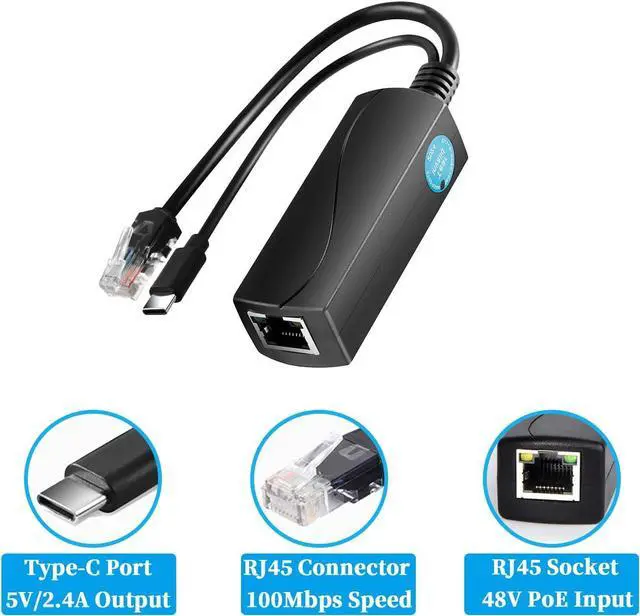

Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output(Type-C)
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
LED: Yellow PoE lamp
Temperature: Work within -20~50°, Storage within -30~60°
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
Dimension: 27.5 x 2.8 x 2.3 cm
Weight: 0.05 kg

Package Content:
1 x POE Splitter
