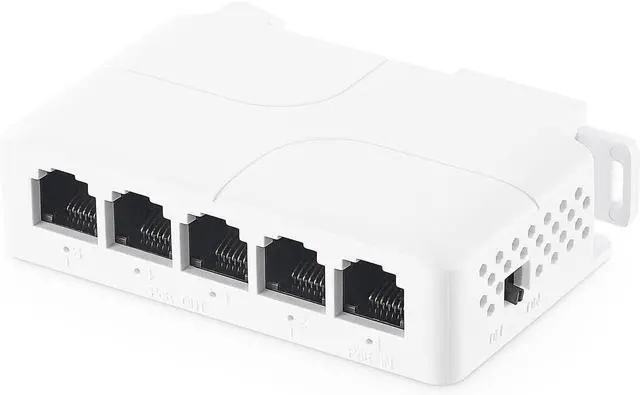

BUCIER PoE Passthrough Switch, 1 PoE in 4 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 100Mbps Ethernet, Din Rail & Wall Mount Plug and Play
Limited time offer, ends 09/20 By Electronics store
- PoE PassthroughInclude 1 PoE In 4 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required
- IEEE 802.3 af/at/bt Support standard PoE, Port 1 Input Max 90W(IEEE802.3bt), Port 2 Output 60W(IEEE802.3bt), Port 3-5 Output Max 30W(IEEE802.3at), PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 2: 1/2 (+), 3/6 (-),4/5(+), 7/8(-); Output Port 3-5: 1/2 (+), 3/6 (-)
- VLAN & Extend Mode Support VLAN mode and extension 250M, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization. POE extends transmission up to 250 meters at 10Mpbs.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About this item

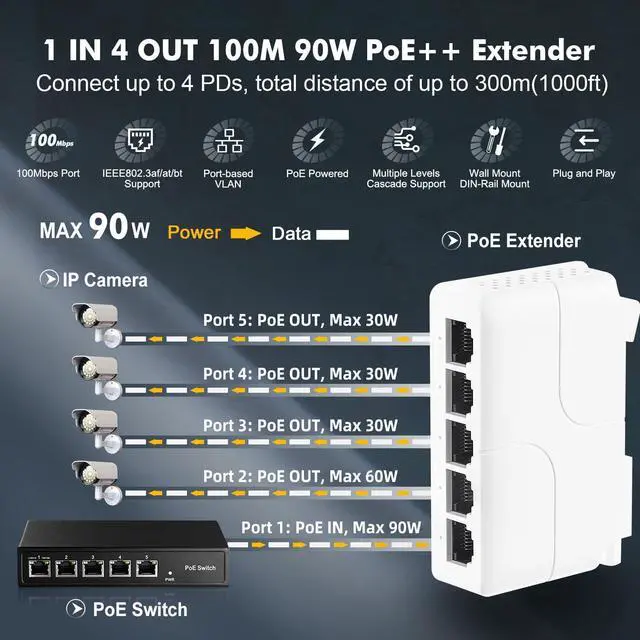

PoE PassthroughInclude 1 PoE In 4 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

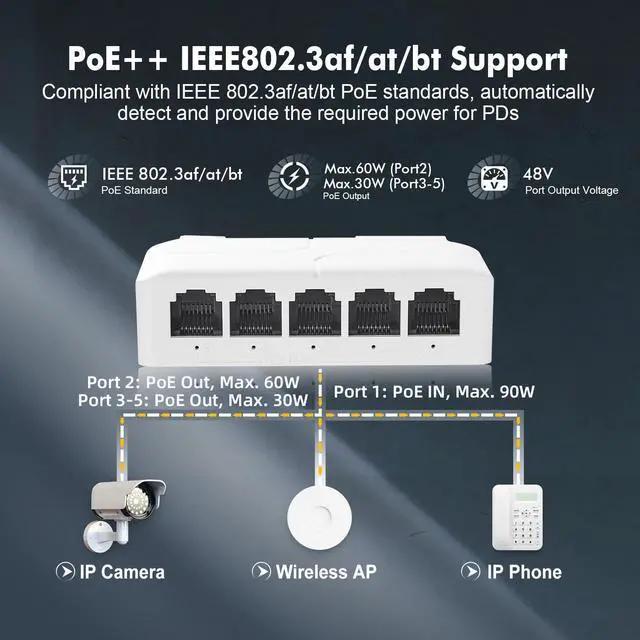

IEEE 802.3 af/at/bt Support standard PoE, Port 1 Input Max 90W(IEEE 802.3 bt), Port 2 Output 60W(IEEE 802.3 bt), Port 3-5 Output Max 30W(IEEE 802.3 at), PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 2: 1 /2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 3- 5: 1 /2 (+), 3/6 (-)

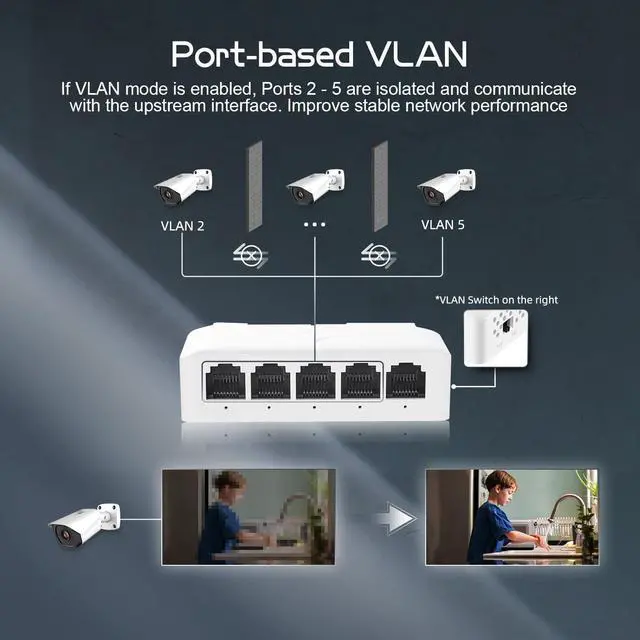

VLAN & Extend Mode Support VLAN mode and extension 250M, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization. POE extends transmission up to 250 meters at 10Mpbs.
Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*.

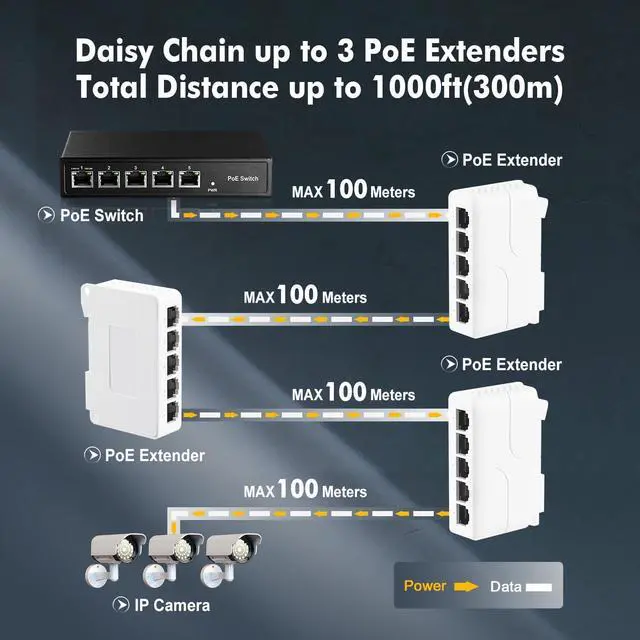

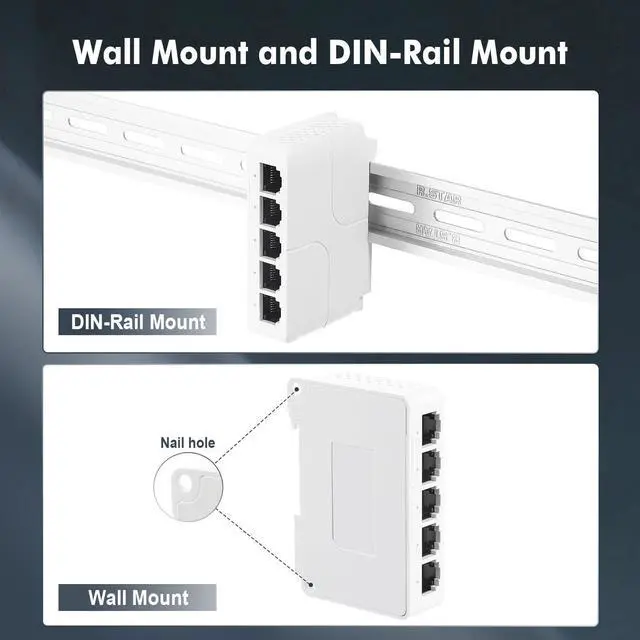

Easy Install Support wall mount and din rail, smaller size save space, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
PoE PassthroughInclude 1 PoE In 4 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required
IEEE 802.3 af/at/bt Support standard PoE, Port 1 Input Max 90W(IEEE 802.3 bt), Port 2 Output 60W(IEEE 802.3 bt), Port 3-5 Output Max 30W(IEEE 802.3 at), PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 2: 1 /2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 3- 5: 1 /2 (+), 3/6 (-)
VLAN & Extend Mode Support VLAN mode and extension 250M, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization. POE extends transmission up to 250 meters at 10Mpbs.
Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*.
Easy Install Support wall mount and din rail, smaller size save space, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
