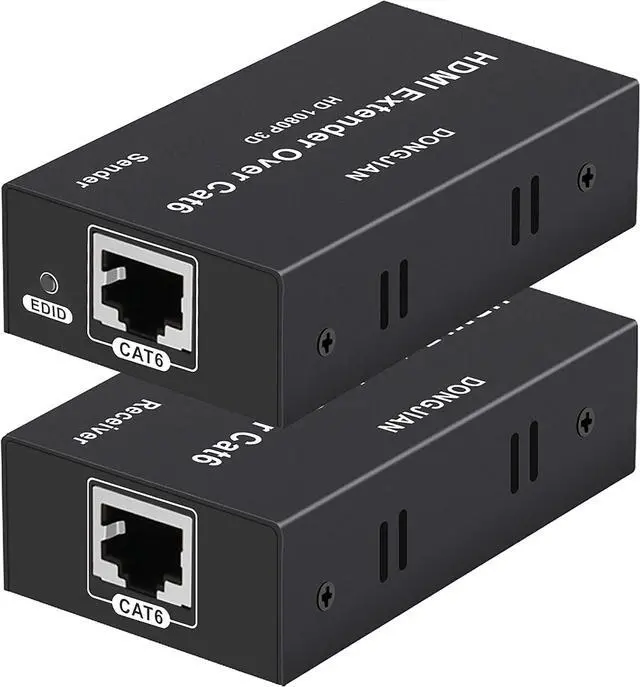

BUCIER HDMI Extender 196ft HDMI Over Single Cat5E/6/7 HDMI Repeater HDMI Balun Sender Transmitter Receiver Support 1080p 3D HDMI 1.4a HDCP EDID
- HDMI Extender over CAT6This plug and play HDMI extender help you transmit high-resolution video and audio simultaneously, for 196ft transmit via oxygen free copper CAT6 LAN cable. Zero Video Latency, making it a great choice for outdoor or indoor, project, video conference.Support resolution of 1080p
- EDID copyThe EDID copy function allows the signal source and the display to be connected without obstacles, and to obtain the best matching image and sound.
- HDMI Lossless TransmissionSupport resolution up to 1080p@60hz and distance up to 196ft between the sender and receiver unit; ensure crystal clear & distortion-Free & no latency, we recommend to use oxygen free copper Cat 6 cable; Support audio format: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
The HDMI extender can use a CAT6 cable to transmit the HDMI signal to a display no more than 196ft.
Specification:
Support resolution: 3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz
Support audio format: DTS-HD/DTS/DSD
Max transmission bandwidth: 1.65G bps
Input/Output HDMI cable distance: 16ft (5m) AWG26 HDMI standard cable
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V
NOTE: UTP cables must follow the IEEE-568B standard.

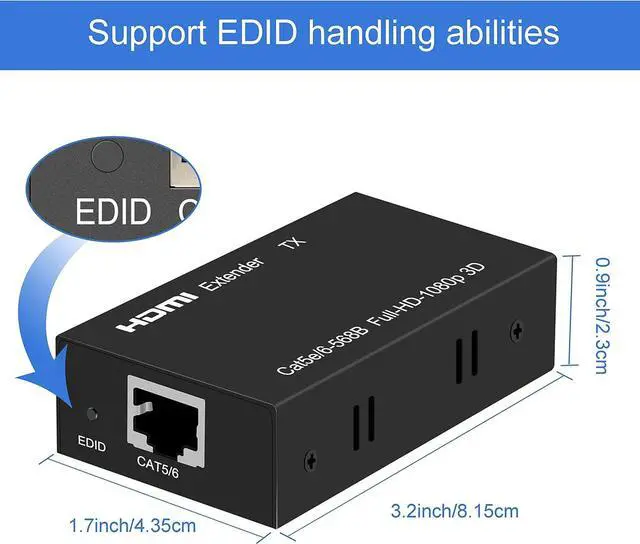

EDID copy
Connect the sender and the monitor with an HDMI cable.
Connect the power and press the EDID button, indicator will flash 3 times.
After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.
(Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings)

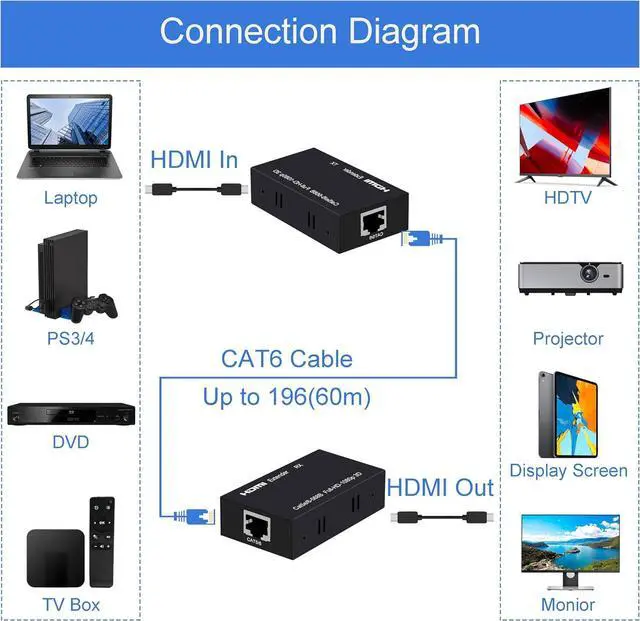

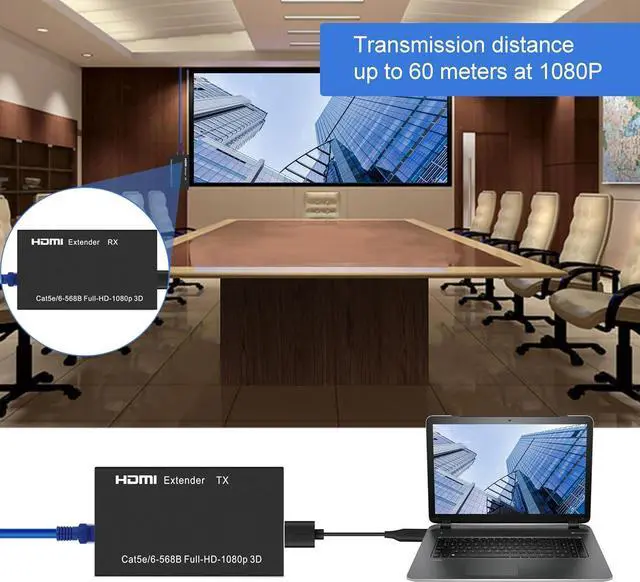

Long distance
Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender
Our equipment supports 3D effects to give you an immersive experience
Note: Requires both your input and output to support 3D functionality
Note: Oxygen-noting copper Cat 6 cable is recommended for better transmission.

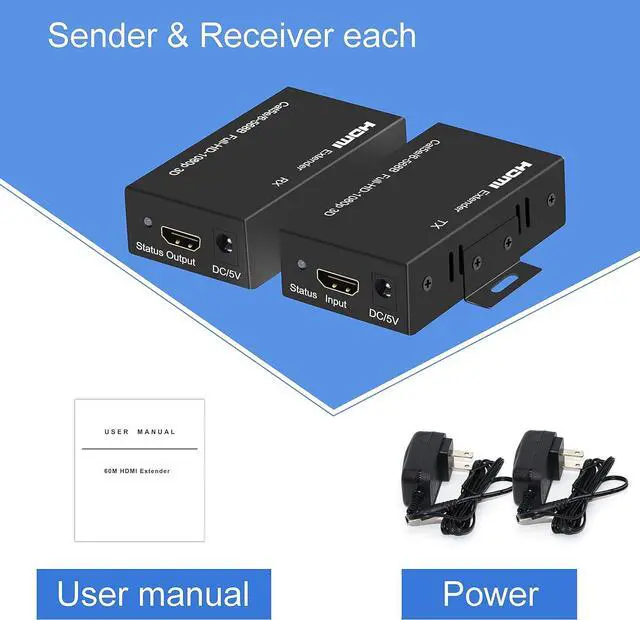

Products include
HDMI sender x 1
HDMI Receiver x 1
5V DC power supply x 2
User's Manual x 1
Brackets x4
NOTE: (Please
note: The TX and RX of this product must be connected to a power adapter, single-sided power supply is not supported)
High compatibility & Multi-scene applicationsBuilt-in automatic adjustment system and ESD protection system. Compatible with PC, game console, Blu-ray player, media player, etc.; It can be widely used in the area of education, outdoor or indoor LED display screens, project, video conference, metro, multimedia home theater, etc.
The HDMI extender can use a CAT6 cable to transmit the HDMI signal to a display no more than 196ft.
Specification:
Support resolution: 3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz
Support audio format: DTS-HD/DTS/DSD
Max transmission bandwidth: 1.65G bps
Input/Output HDMI cable distance: 16ft (5m) AWG26 HDMI standard cable
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V
NOTE: UTP cables must follow the IEEE-568B standard.
EDID copy
Connect the sender and the monitor with an HDMI cable.
Connect the power and press the EDID button, indicator will flash 3 times.
After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.
(Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings)
Long distance
Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender
Our equipment supports 3D effects to give you an immersive experience
Note: Requires both your input and output to support 3D functionality
Note: Oxygen-noting copper Cat 6 cable is recommended for better transmission.
Products include
HDMI sender x 1
HDMI Receiver x 1
5V DC power supply x 2
User's Manual x 1
Brackets x4
NOTE: (Please
note: The TX and RX of this product must be connected to a power adapter, single-sided power supply is not supported)
High compatibility & Multi-scene applicationsBuilt-in automatic adjustment system and ESD protection system. Compatible with PC, game console, Blu-ray player, media player, etc.; It can be widely used in the area of education, outdoor or indoor LED display screens, project, video conference, metro, multimedia home theater, etc.
