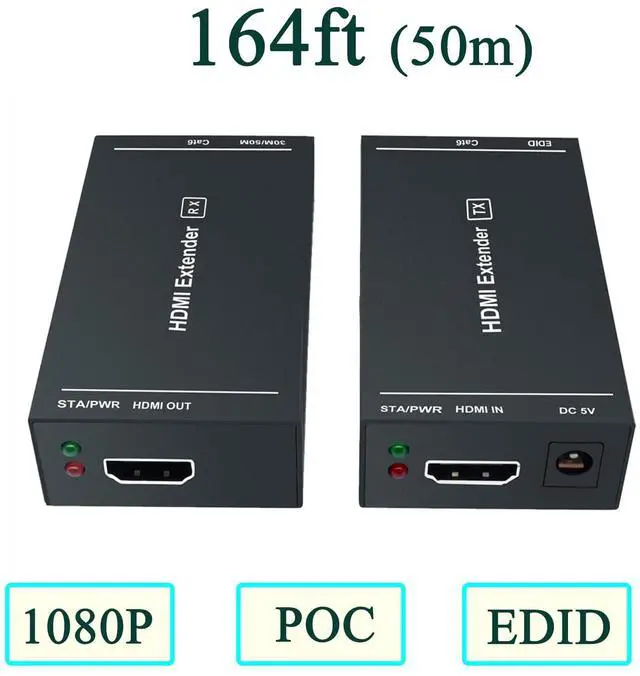

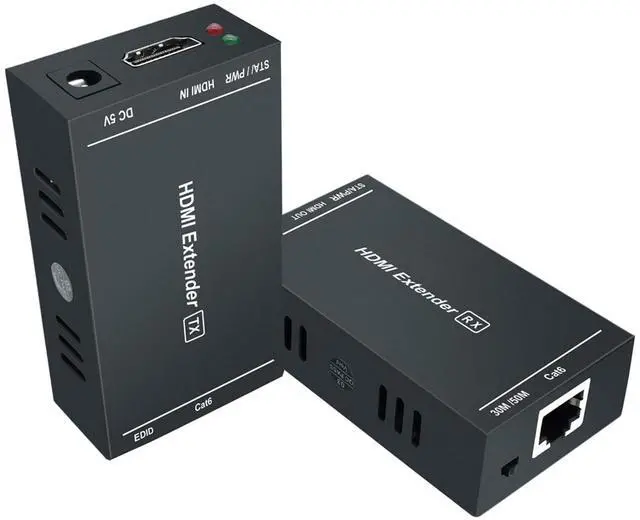

BUCIER HDMI Extender 1080p@60Hz, 3D, Over Single Cat5e/Cat6/Cat 7 Cable Full HD Uncompressed Transmit Up to 164 Ft(50m), EDID and POC Function Supported (Transmitter and Receiver)

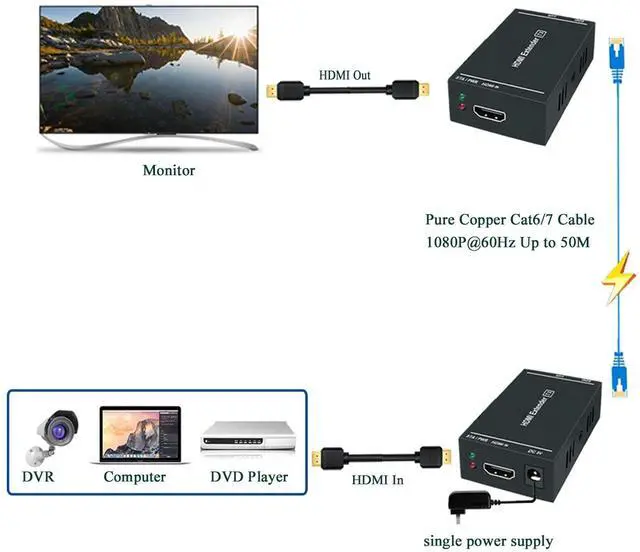

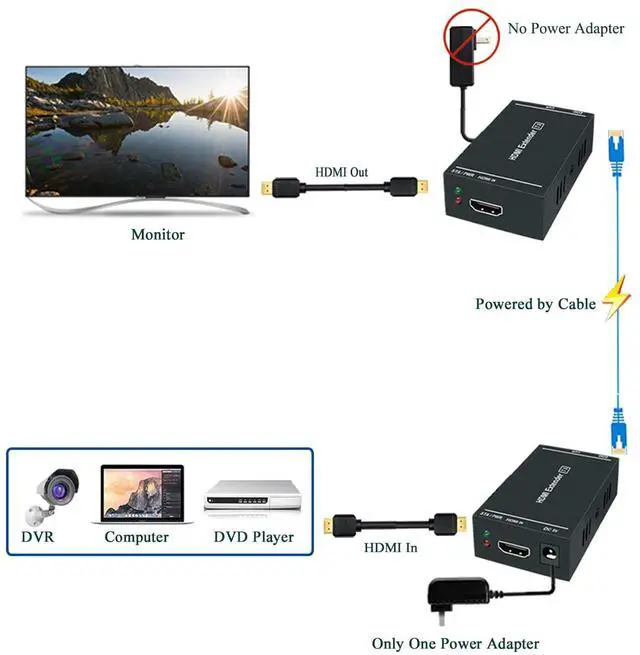

1. IntroductionThe HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. 2. Features1Transmits HDMI video and audio signals up to 50M over a single CAT6 cable;2Support video resolution up to 1920*1080@60Hz, 3D signal;3EDID Copy, able to adapt to a variety of complex application environment;4Compliance with HDMI 1.3 standard;5Built-in automatic adjustment system, make the image smooth, clear and stable;6Built-in ESD protection system;7High compatibility, can auto-match source and display device;8Simple and convenient installation, plug and play, no need to setup; 3. Specifications: (1) Maximum pixel clock: 165MHz(2) Maximum data rate: 6.75Gbps(3) Resolution range: Up to 1920*1080@60Hz,3D(4) Connector:HDMI- A(5) Impedance:100; (6) Ethernet Interface: RJ45 (7) Ethernet Transmission distance: CAT6/CAT7---50M 4. Other (1) Power supply: DC 5V (2) Power dissipation: MAX 3W (3) Temperature Operating: -5 ~ +70(4) Humidity Operating: 5% ~ 90% (5) Dimension:81*43*23mm(6) The warranty: 1 year free warranty 5. Packing List(1) 1x HDMI transmitter(2) 1x HDMI receiver(3) 1x User manual(4) 1x Power adapter

Additional Features

• [ETHERNET HDMI EXTENDER EASY INSTALLATION]Plug and play, no driver is needed, the metal shell is sturdy, the fuselage is equipped with heat dissipation ports, which effectively reduces the damage caused by heat to the machine and prolongs the service life.
• [HIGH COMPATIBILITY AND WIDELY APPLICATIONS]Compatible with PC, game console, Blu-ray player, media player, etc.; It can be widely used in the area of education, outdoor or indoor LED display screens, project, video conference, metro, multimedia home theater, etc. We provide a 1-year free warranty on all of our products. If you have any questions about the product, please contact us. Contact Way: Click Sold by store name-Front store page- Ask a question.
