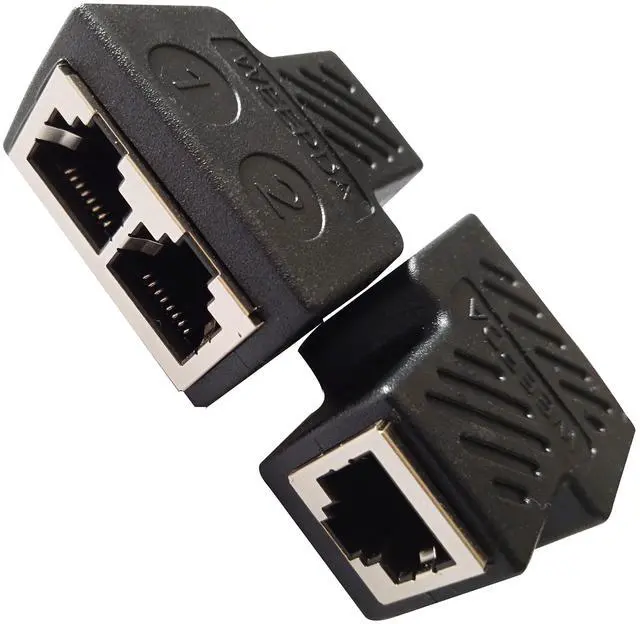

BUCIER RJ45 Splitter Adapter 1 to 2 Female to 2 Female Ethernet Network 100 Mbps 2-Pack

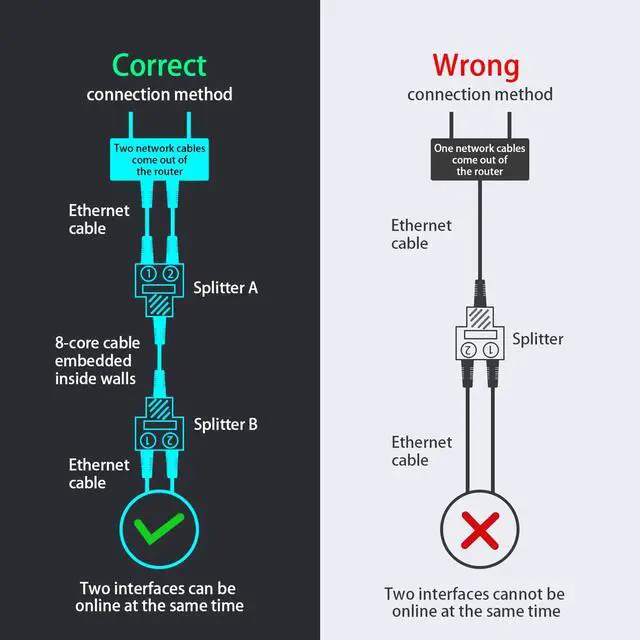

- NOTE:1,the signal transmission of two cable groups are not interfered with each other.And The speed of each cable groups (1 and 2) can reach 100 megabytes.2, A pair of RJ45 Splitters must be used together correctly to connect the TWO devices to the network at the Same Time. Only use one Ethernet Splitter can only support ONE device to network.
- NOTE:2 RJ45 Splitter adapters must be used at the same time. This RJ45 Female to 2 Female Splitter Coupler is mainly used to solve the connection problem caused by insufficient wiring.Easy to use, no need to plug,It can not be divided into two outputs,only can switch network.
- NOTE:This RJ45 Ethernet Splitter 1 to 2 Network Adapte is not a router or network switch,it does not have the function of the assign IP addresses.Widely used: By dividing the network cable into 2 parts, the 2 devices can be online at the same time, such as: laptop, TV box,router,camera.Plug and play,no need to set.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

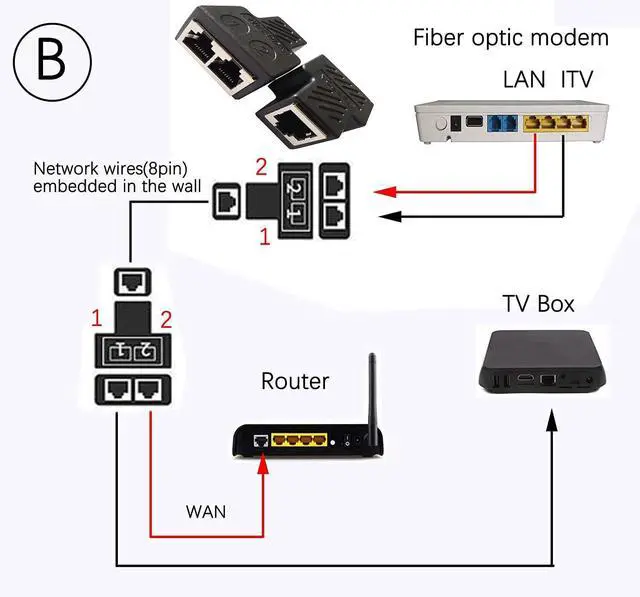

Family Application Case 1:If when decorating, weak current connect to a TV in living room by only one network wire string,and signal of the router in the weak current is weak
a.The iTV port of fiber optic modem connect to RJ45-A port marked"2"
b.The router of fiber optic modem connect to RJ45-A port mark"1"
c.RJ45-A the third port unmarked connect to network wall plate in the living room by wires embedded in the wall
d.The wall plate connect to the other RJ45-B adapter
e.The port of RJ45-B marked"1" connect to router
f.The port of RJ45-B marked"2" connect to the set-top box
Set-top boxes and routers can work simultaneously
Family Application Case 2:If fiber optic modem left one port and two rooms has network wires.And one of the room is equipped with a router, then using this two RJ45 adapter can make you surf Internet in another room
a.The last port of fiber optic modem connect to RJ45-A port marked"2"
b.The computer without router connect to RJ45-A port marked"1"
c.RJ45-A the third port unmarked connect to RJ45-B the third port unmarked by wires embedded in the wall
d.WAN port of the router connect to RJ45-B port marked"2"
e.LAN port of router connect to RJ45-B port marked"1"
f.Two computers in different rooms can surf the Internet at the same time

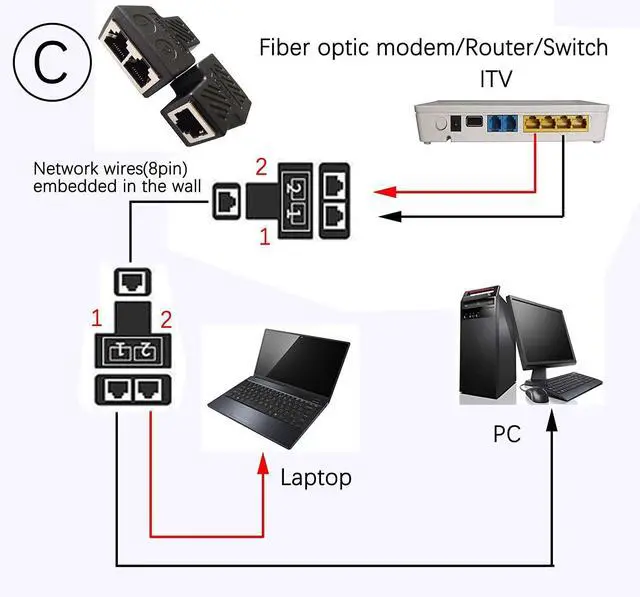

Family Application Case 3:If the room has only one Lan port, this pair RJ45 adapter can allow two computers on the internet in the same time and in the same room
a.Two LAN ports of router separately connect to two ports of RJ45-A marked "1" and "2"
b.RJ45-A the third port unmarked connect to network wall plate in the room by wires embedded in the wall
c.The network wall plate port connect to RJ45-B third port unmarked
d.Two RJ45-B port s marked "1" and "2" separately connect to two computers
e.Two computers can on the internet in the same time

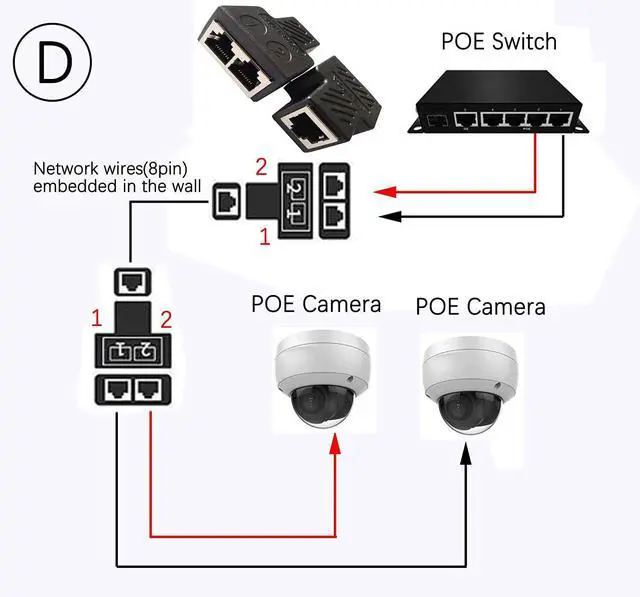

Engineering connection Case 4:refer to the schematic diagram of the product pictures above.
