On Cards PCIE to M2/M.2 Adapter SATA M.2 SSD PCIE Adapter NVME/M2 PCI E Adapter SSD M2 to SATA PCI-E Card M Key +B Key

On Cards PCIE to M2/M.2 Adapter SATA M.2 SSD PCIE Adapter NVME/M2 PCIE Adapter SSD

M2 to SATA PCI-E Card M Key +B Key

Specification

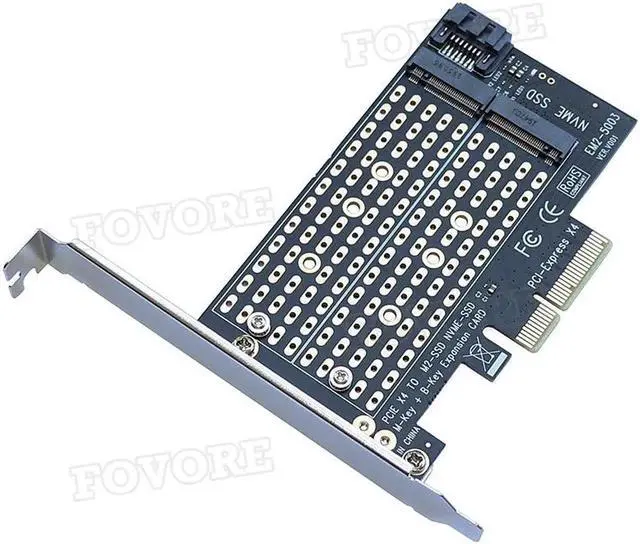

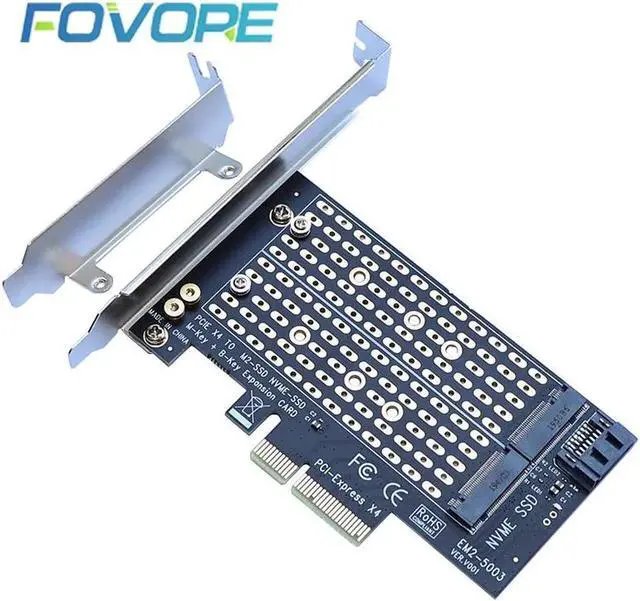

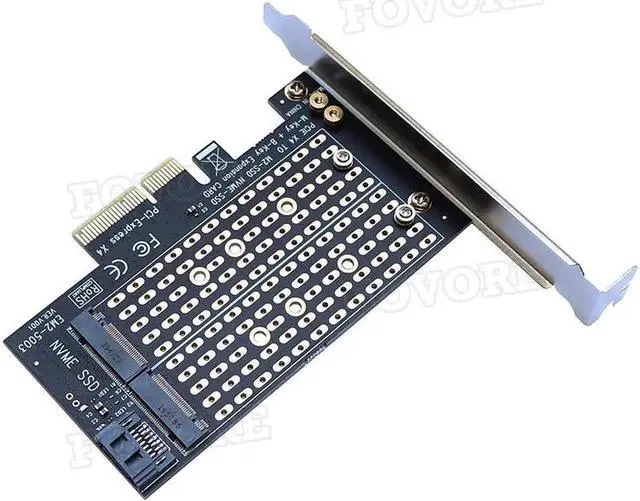

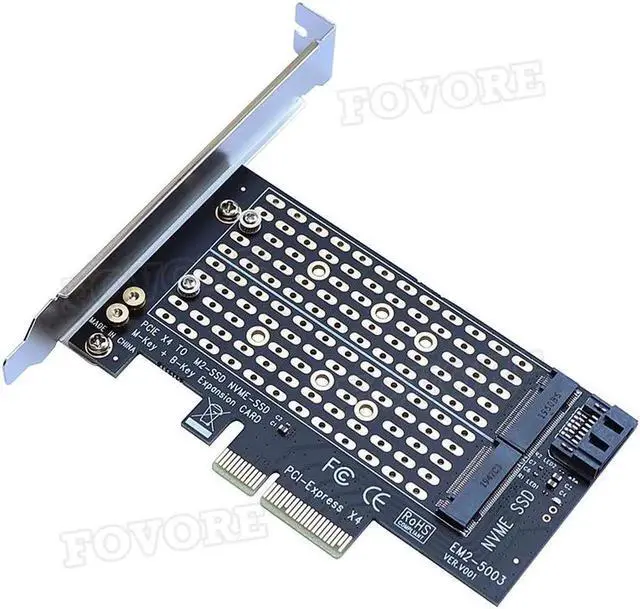

Product name: M.2 NVME to PCI-E 3.0 X4 Expansion Card

Type: PCIE to M2 Adapter

Internal Interface: M Key + B Key Dual Ports

Support Slots: PCI-E 3.0 X4 GEN3 (Compatible with X4 X8 X16 slot)

Support devices: PCI-E specification m.2 NVMe and SATA specification M.2 NGFF disk

Support system: Windows XP/Vista/7/8/10, Linux, Mac OS.

Features

M key M.2 NGFF SSD to PCI-E X4 adapter or B key M.2 NGFF SSD to SATA adapter.

The speed and other properties is not changed, only change the interface type and without any

software or drivers.

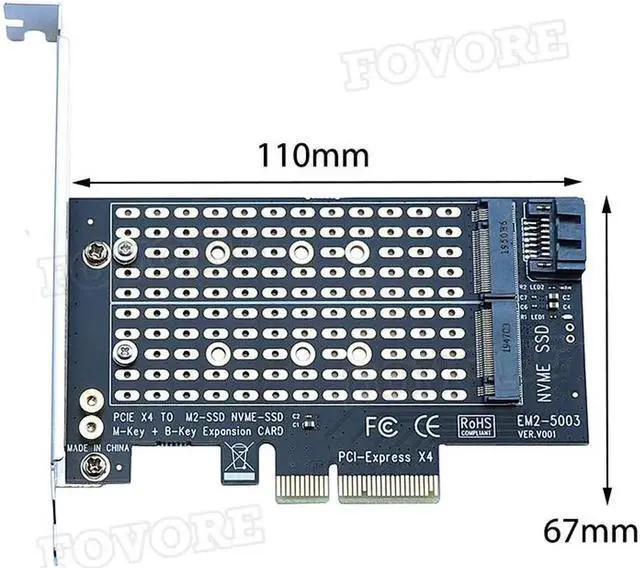

Support size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm M.2 NGFF SSD.

Macth with two kinds of Metal sheet ( length: 8 cm, 12 cm )

Compatible with any operating system ( On the premise of operating system must be compatible

with your hard disk ).

About M.2 NGFF SSD interface standard

Socket 2(B key 2 LANE):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM

models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of

SSD) two different transfer mode.

Socket 3(M key,4 LANE):PCI-E 4X(such as MZHPU128HCGM MZHPU256HCGL and MZHPU512HCGL models

of SSD) transfer mode.

You'll receive

1 x PCI-E to M.2 NVME Adapter

1 x Low Profile Bracket

2 x Screws
