Express 3 Port Video Capture Expansion Card Firewire XIO2213AZAY Chipset 1394B 1394A e 1.1 X1 Card

Express 3 Port Video Capture Expansion Card Firewire XIO2213AZAY Chipset 1394B 1394A e 1.1 X1 Card

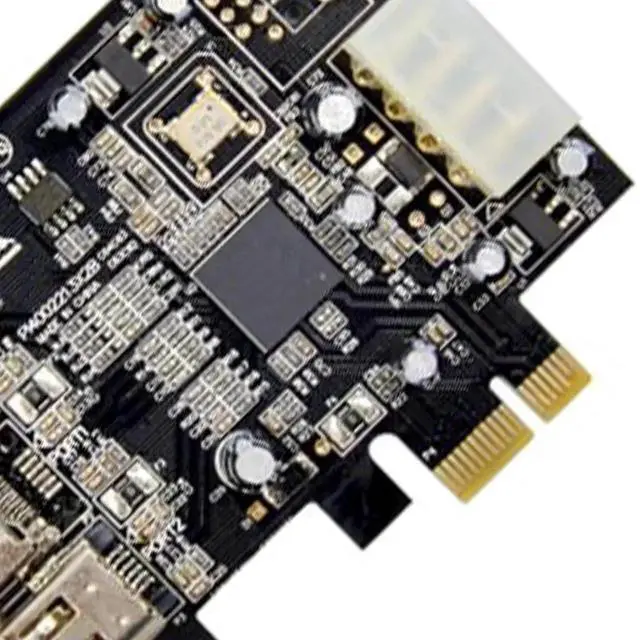

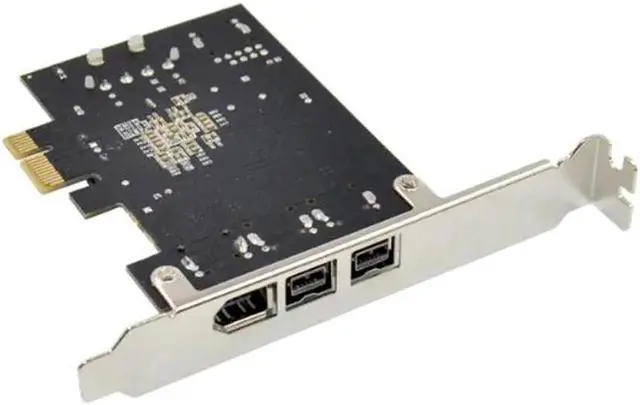

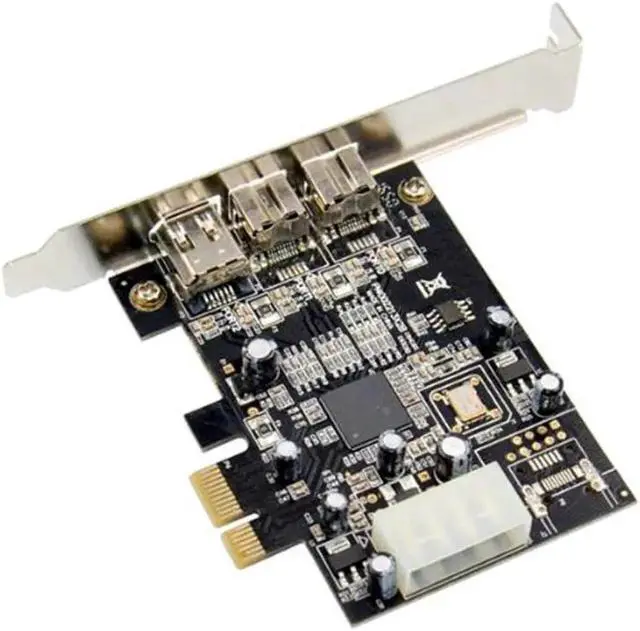

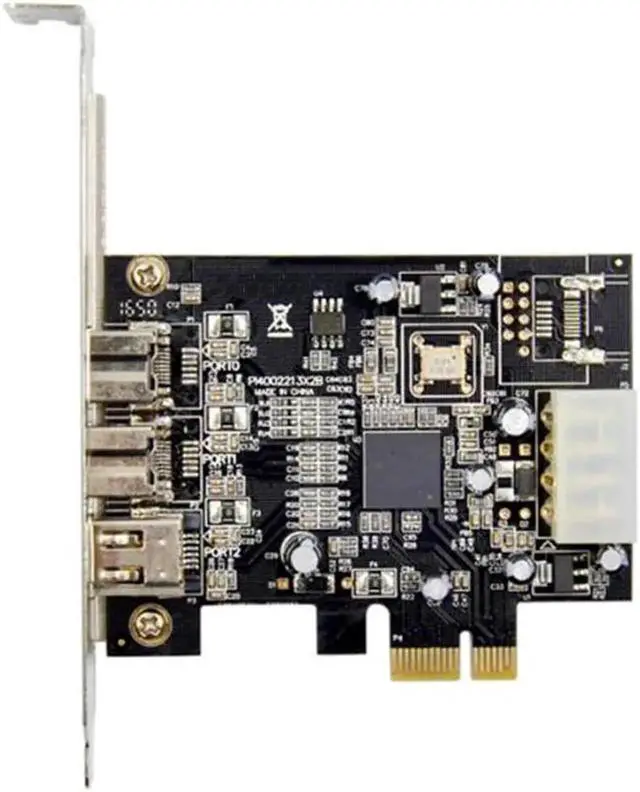

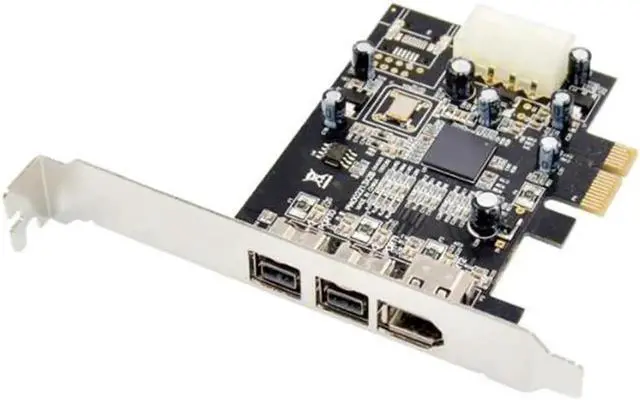

1.TI XIO2213A is a multi-function Express bus interface, which is internally connected to the link layer controller of a 1394b open host controller with a three-port 1394b PHY2. After the XIO2213A is correctly configured, the solution can provide complete Express and 1394b functions and performance3. Provide two FireWire 800 (1394b) ports and a 1394a (6 pin) port for multiple 1394b / 1394a device connection4. Support 100, 200, 400 and 800 Mbps data transmission rate5. Built-in 4-pin power connector to provide additional power when connected to the system power (recommended)Supports hot swap and plug-and-play connection of peripheral devicesSuitable for all types of FireWire 800 (1394b) and 1394a devices, including portable hard drives, DV camcorders, digital cameras, CD-RW / DVD-ROM drives and other o / video devicesDriver supported Windows98SE / ME / 2000 / XP / Server 2003 / Vista / WIN7Name: 3-port video capture expansion cardsize:87*69mmMaterial:ABS + Metalcolour:BlackPackage Contents:1 * 3 port video capture expansion cardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
