USB 3.2 PCIE PCI Express Expansion Card PCI-E 4X to USB3.2 Gen2 x2 Type-c Host Controller Card 20Gbps for Desktop

product description:

Colour: Black

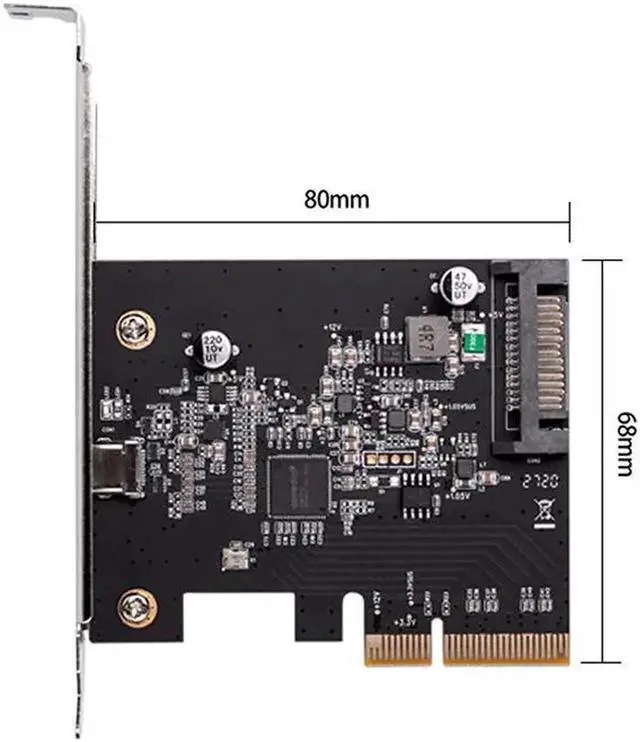

Size: 80*68mm

Weight: 120g

Product name: PCIE to USB3.2 Type-C host controller card

Product introduction:

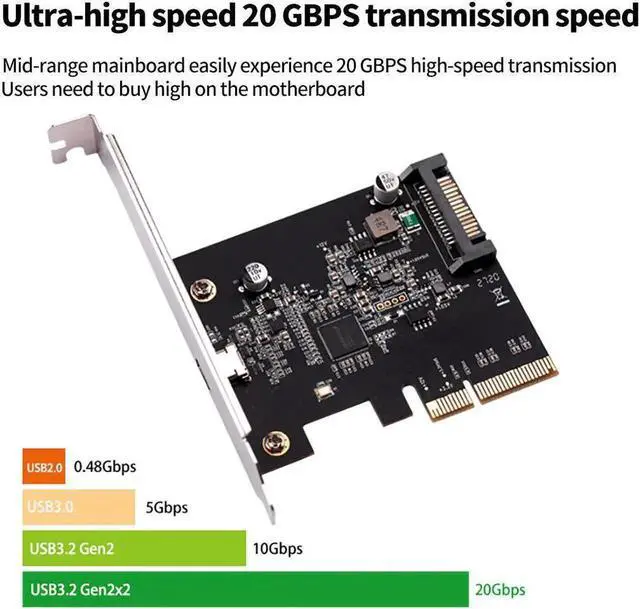

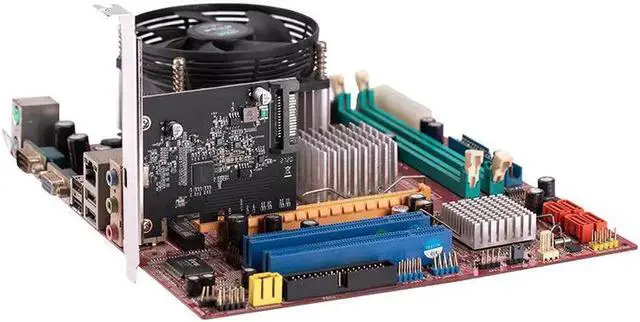

This adapter card can convert the PCIe interface on the motherboard to a USB3.2 Type-C high-speed data transmission interface, and the theoretical transmission speed can reach 20Gbps. It is also backward compatible with USB3.2Gen2 devices. The speed of USB3.2Gen2x2 is twice that of USB3.2Gen1. It is specially manufactured to provide faster and higher data transfer rates for personal computers, consumer electronics and communication devices.

product features:

Support PCI Express Gen-III x4

Support PCI Express Base 3.1a specification

Compliant with PCI Express card electromechanical 2.0 specification

Compliant with PCI Express mini card electromechanical 1.2 specification

Compliant with PCI PCI bus power management interface specification revision 1.2

Compliant with PCI PCI local bus specification revision 3.0

Integrated spread spectrum controller for PCI Express interface

Does not support reverse channel

Compliant with Universal Serial Bus 3.1 specification revision 1.0

Compliant with Universal Serial Bus Specification Revision 2.0

Compliant with SCSI protocol revision 1.0 for USB connection

Support multiple input function

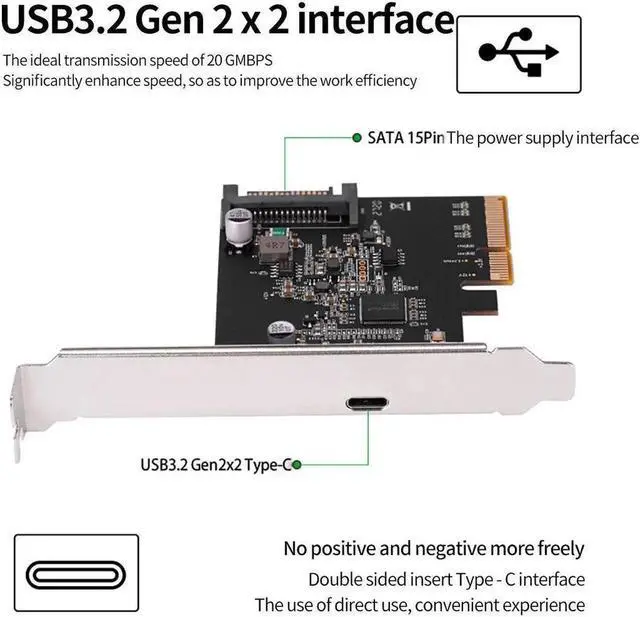

Support one USB3.2 port

Support USB3.2 and USB2.0 link power management

Support control, batch, stream, interrupt, synchronous transmission type

Support USB3.2Gen2 x2

Transmission speed up to 20Gbps

Compliant with xHCI (Extensible Host Controller Interface) specification revision 1.1

5V/3000mA power output with C-type port
