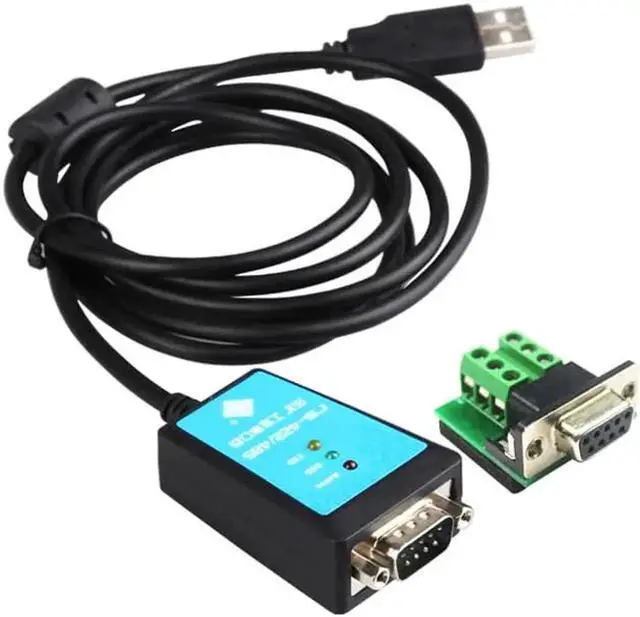

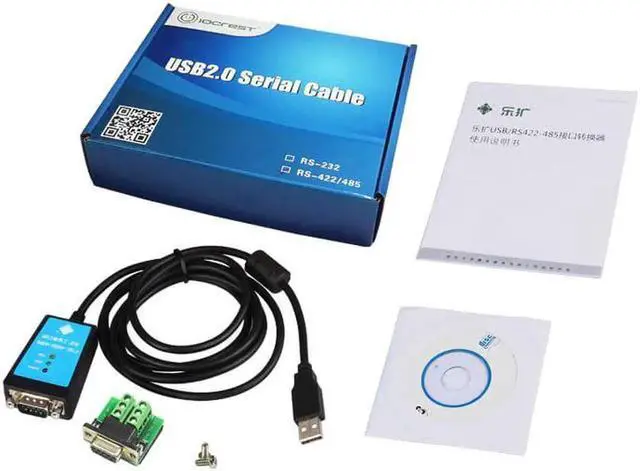

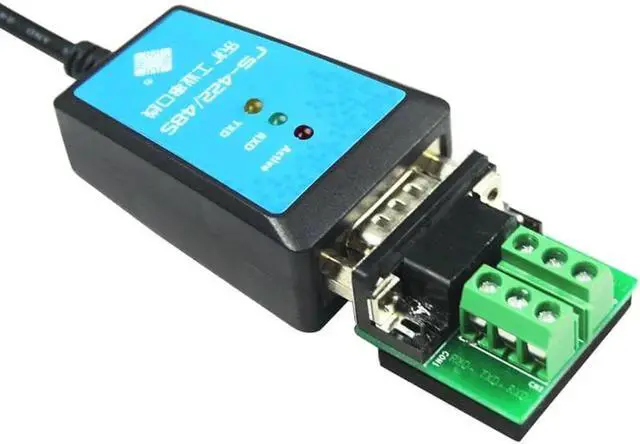

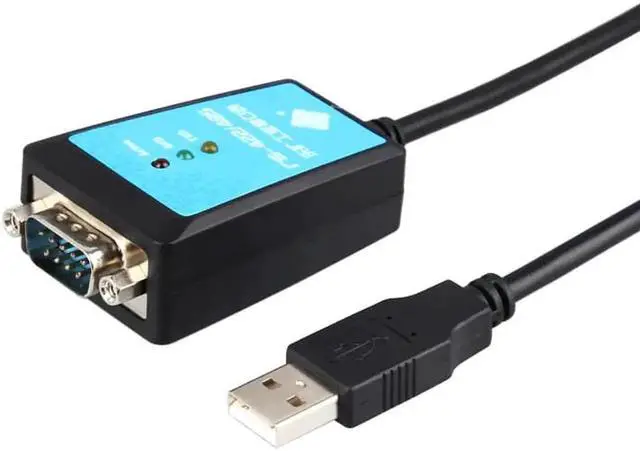

2.0 to RS422 RS485 Converter Adapter Serial Cable FTDI Chipset with Magnetic Ring Serial Communication Cables 180cm

2.0 to RS422 RS485 Converter Adapter Serial Cable FTDI Chipset with Magnetic Ring Serial Communication Cables 180cm A new 2.0 to RS422/485 Converter. 2.0 to COM port, 9Pin serial Cable. FTDI Chipset, Line length:1.8M, Magnetic Ring, with LED. SKU: IO-4285-02

Specifications: 1.Standards:conforming to V1.0, 1.1 and 2.02.RS-485,RS-422 TIA/EIA Standard3. signals: VCC, DATA+, DATA-, GND and FG4.RS-422 Signal: T/R+,T/R-,RXT+,RXD-,GND; RS-485 signals:T/R+,T/R-.GND5.Working mode: asynchronous working,point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)6.Single chip to asynchronous serial data transfer interface7.Direction control: Adopt the technology which automatically controls the data-flow direction,automatically distinguish and control the data-transmission direction;8.Support Bits per second Data transfer rates from 300 baud to 921600baud;9.UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none10.Flow control none,hardware and xon/xoff11.Synchronous and asynchronous bit bang interface options with RD#and WR#strobes12.Transmission distance:RS-485/422 port:1.2km(300bps-921600bps). port:No more han 5 meters13.Interface protection: surge protection and ±15KV ESD protection14.Load capability;Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment15.Signal indication:indicator lights for Power (PWR),Send (TXD) and Receive (RXD)16.Transmission media: twisted-pair cable or shielded cable;17.Extended operating temperature range;-40 to 85Degree Applications: to UART CablePOS Printer TerminalNetworking SystemIndustrial and Power Meter Bar Code Reader Digital Camera Interface Wireless/Wired Modem
