Vszerda Cat6 Keystone Jacks, 10-Pack RJ45 Keystone Jack, Ethernet Keystone Modular Female Connectors, White
Limited time offer, ends 07/22 By YuXuan Technology

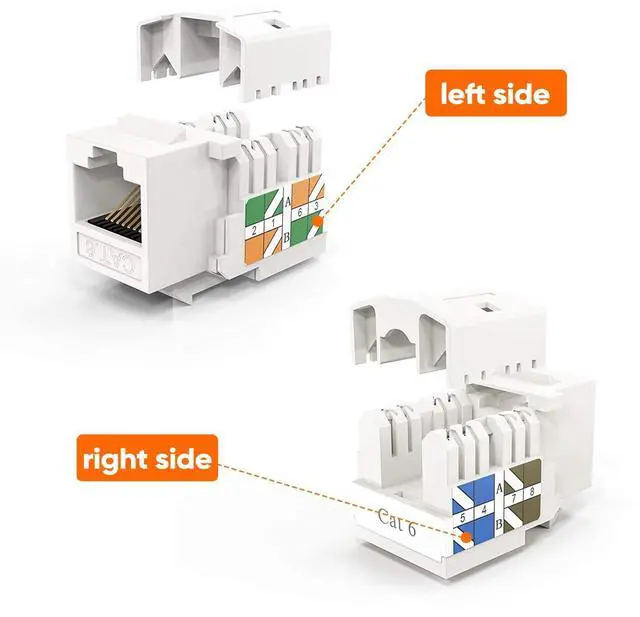

- High Performance: Supports T568A and T568B wiring with color-coded 110 blocks. CableCreation keystone jack support 110 or Krone dual-type termination and accepts 23 or 24 AWG solid Ethernet cables
- High-Speed Data Transmission: Transmission speed of cat6 keystone up to 1000 Mbps with no loss of data speed or quality. Note: The transmission speed is affected by the quality and length of the network cable, resulting in data speed loss
- Wide Compatibility: For most patch panels,24 port patch panel is not recommended, surface mount boxes, or wall plates or face plates with standard keystone ports, RJ45 keystone can snap right into the faceplate and hold tightly

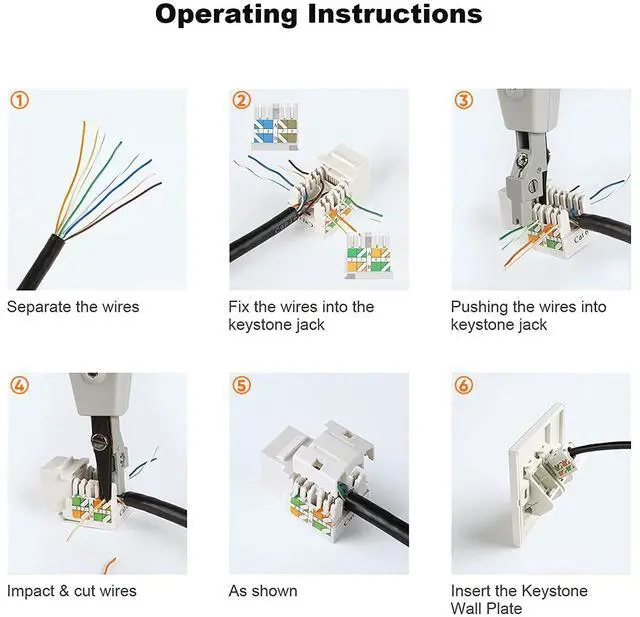

- Easy To Use - Just cut the cable jacket and separate the wires, fasten each cord according to color code, push the cables into the RJ45 keystone, cut off any excess wires, place the cap, and done
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

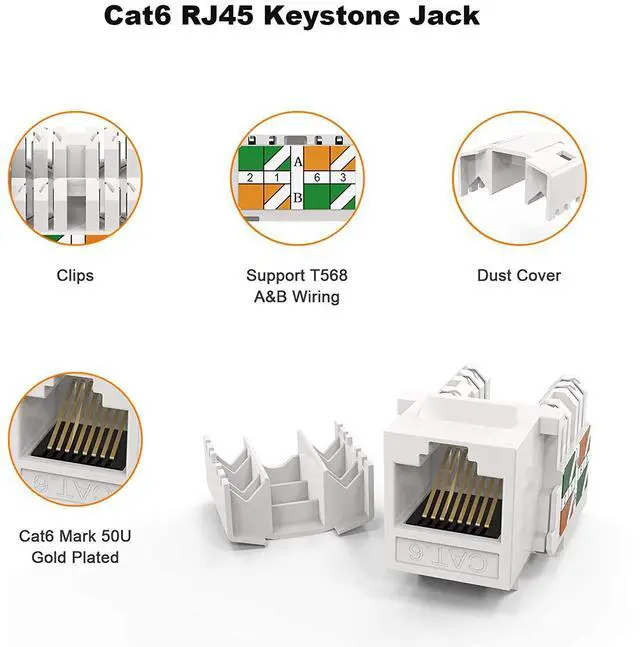

Specifications Color Coded Blocks for T568A and T568B Wiring Dual IDC Modules (110 or Krone) with Covers Compatible with 23 or 24 AWG Solid Wires Contact Plating: 50 Micron Gold Plated UL Listed, TIA/EIA 568-C.2 Verified, RoHS Compliant Package include 10 x Keystone module Connector Note: It do not compatible for 24p 1U patch panel/ 1U APC/ 6 (or 8) gang insert for a wall plate. This RJ45 keystone suitable for single keystone wall plate.
Additional Features
- Multi-scense Application: Widely used in the home, company, surveillance, engineering, and another network cabling. Cat6 keystone can be used with Cat6 and is backward compatible with Cat5, Cat5e ethernet solid/stranded cables
