Vszerda CAT6 RJ45 Rectangular Panel Crimp Adapter No Tool RJ45 8P8C Female Panel Mount Ethernet Connector RJ45 Crimping Mount Socket T568A/B, for Equipment Panel Desktop Wall
Limited time offer, ends 02/03 By Jinwen Electronics
- [No Crimping Tool Required]CAT6 RJ45 Rectangular Panel Mount Connector socket. No need for special RJ45 crimping tool, double crimp cover ensures full contact between core and pin.

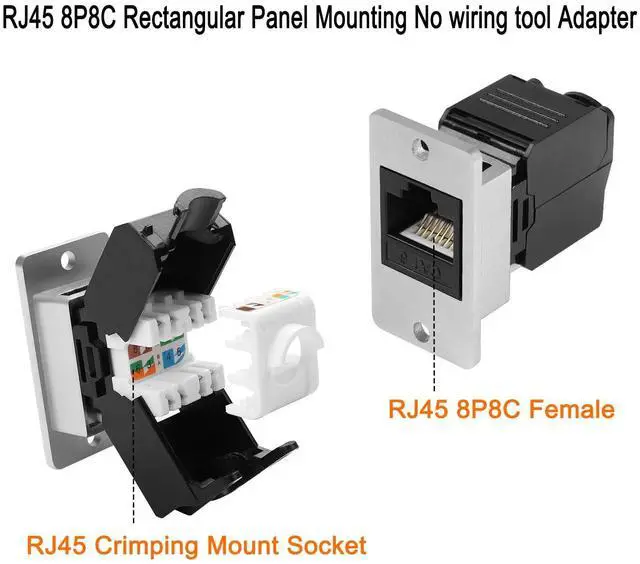

- [Panel Mount]RJ45 8P8C Rectangular Panel Mounting No wiring tool Adapter. Metal rectangular panel housing, can be fixedly mounted on the equipment panel, desktop, wall, floor plug by 2 M3 screws, easily extend extend RJ45 network ports.

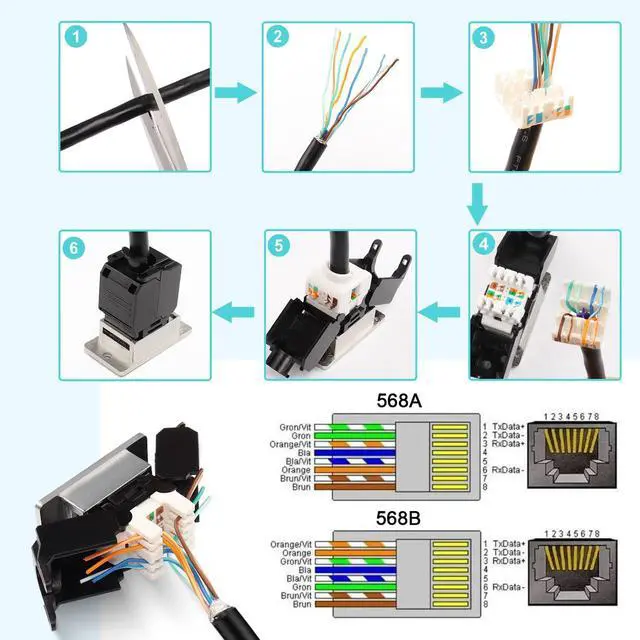

- [Quick Wiring]RJ45 8P8C Panel Mount Ethernet connector socket. Simply snap the twisted pair cable into the cable clamp according to T568A/T568B wire sequence. Then press the white crimp cap and close the black protective cap to achieve quick wiring of the network cable.
- [Marking the Wire Sequence]RJ45 8P8C crimp wire Panel mount socket. Suitable for the development of custom RJ45 port input/output configuration, crimp clips are clearly marked with T568A/T568B 2 kinds of wiring sequence of the corresponding colour, so that you do not make a mistake wiring.

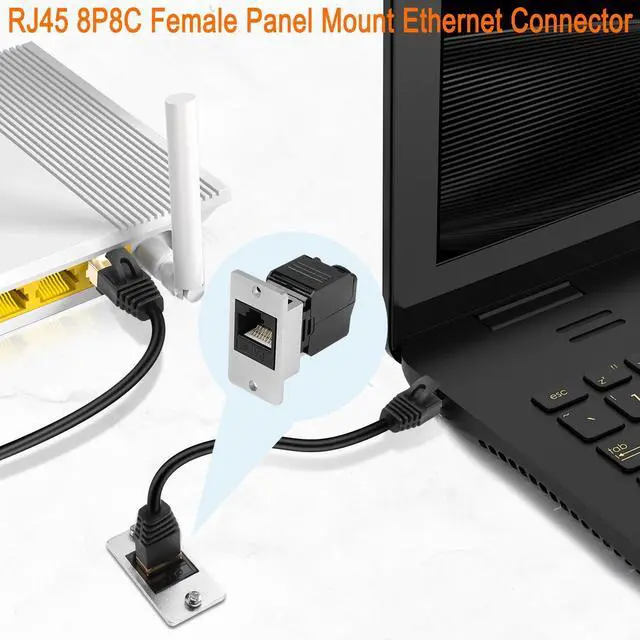

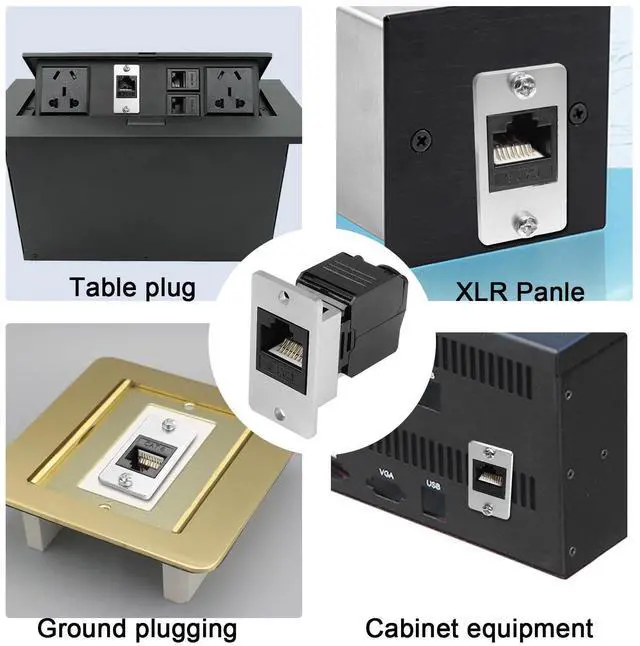

- [Application]RJ45 rectangular panel mount Crimp socket module. Used for RJ45 wiring in home network, industrial network, UTP cable, outdoor Ethernet network cable, LED equipment, underground engineering, communication field, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Cat6 RJ45 Rectangular Panel Mount crimp connector socket. No special RJ45 wiring tool is needed, just snap the twisted pair cable into the cable clamp according to T568A/T568B wire sequence. Then crimp the white crimp cap and close the black protective cap for quick wiring of the network cable. The double crimp cap ensures that the wire core is in full contact with the pins. The metal rectangular panel housing can be fixedly mounted on equipment panel, desktop, wall, and ground plug by 2 M3 screws to easily extend the extension RJ45 network port. Suitable for developing customised RJ45 network port input/output configurations for RJ45 cabling in home networks, industrial networks, UTP cables, outdoor Ethernet network cables, LED equipment, underground engineering, communication fields, etc. The crimp clips are clearly marked with the corresponding colours of T568A/T568B 2 wire sequences, so that you can connect the wires without mistakes.

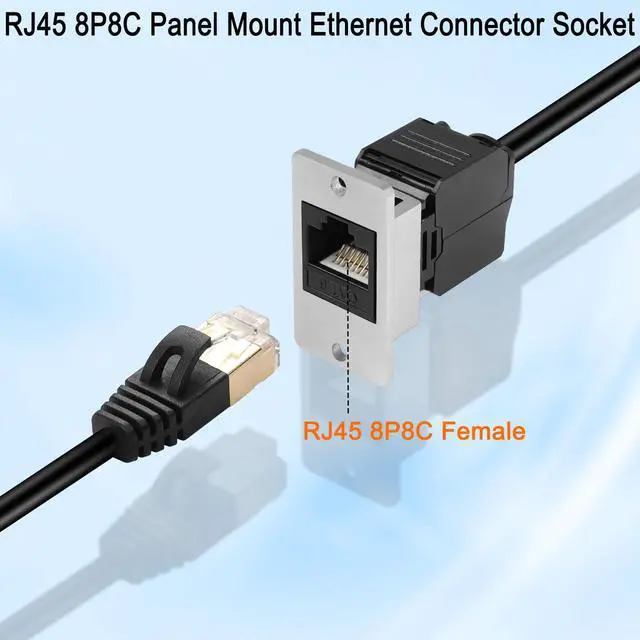

Port Type: RJ45 8P8C Female
Connection Method: 8Pin terminal crimping
Wire Type: Cat6 /Cat5e/Cat5
Wire Sequence: T568A/T568B
Shielded or not: No
Design: Rectangular panel mount, card wire clip
Mounting screws: M3

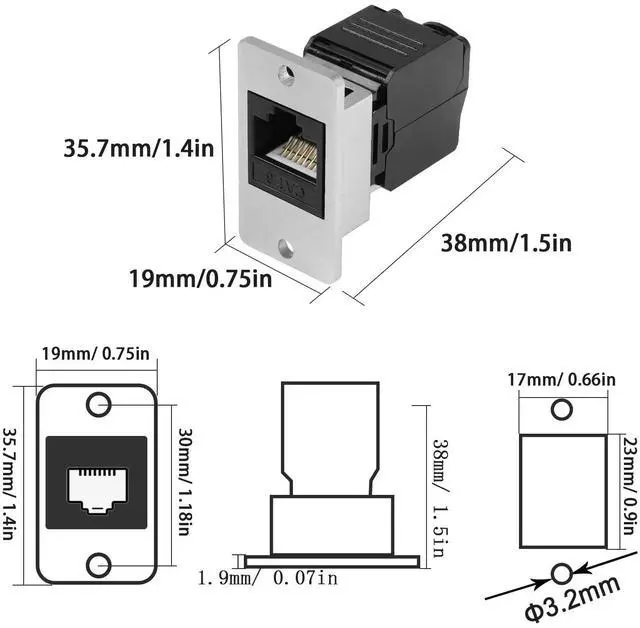

Hole spacing: 30mm
Package: 1*CAT6 RJ45 female to crimp terminal rectangular panel Mount adapter. 2*M3 screw
