Vszerda 2.5GBase-T PCIe Network Adapter RTL8125B 2500/1000/100Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller Support PXE for Windows/Linux/MAC with Low Profile

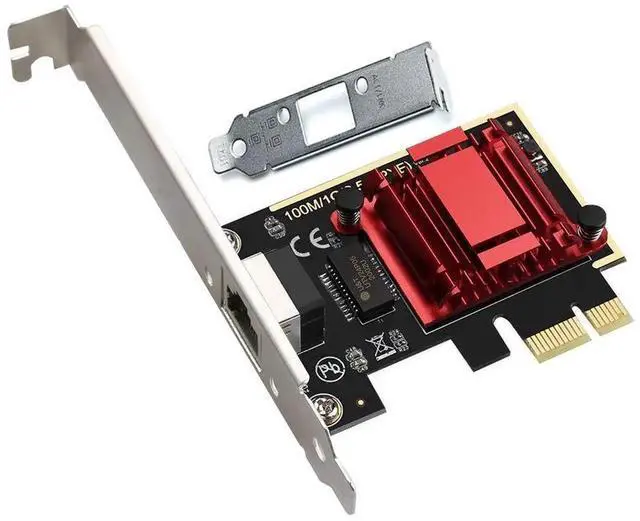

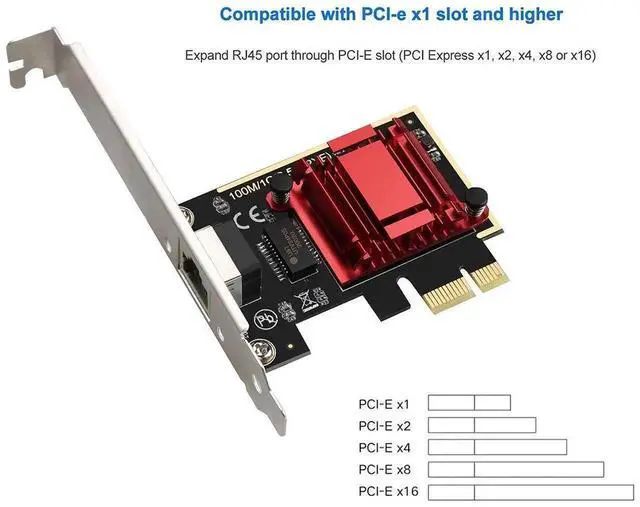

- Compatible for X1,X4,X8,X16Comes with low profilce bracket
- Driver link was changed,pls freely download here. Driver link: https://www.realtek.com/Download/Index?cate_id=194&menu_id=368
- Support PXE function an Wake on LAN
- Support DSM,PVE,ikuai,unraid6.9.2, OpenWrt ESXI6.7 (Doesnt support ESXI 7.0)
- Freely compatible, the network card can support multiple system: Windows ME/98SE/2000/XP, Win7 / Win8 / Win10 / Vista / Sever 2003/2008 / 2012 /2016/ Linux / DOS/MAC OS
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet.
Product Feature.
It offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
Specification
ChipsetRTL8125B
Port number1* RJ45
StandardIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3azIEEE 802.3bz
Network media10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP
Data ratePCI Express 1x slot
Auto MDIXYES
Full Duplex SupportYES
LED Indicator100M/1G/2.5G Link/Act
Dimension71.5*50*1.6mm
Support OSWindows10(32/64), Win7 (32/64), Win8,8.1 (32/64)Windows Server 2012,2008LinuxMac OS
Support PXE function.
Support Wake on LAN
Support 2.5G and 1G Lite mode
Compatible with NBASE-T Alliance PHY Specification
Supports PCI Express 2.1
Supports 1-Lane 2.5G/5Gbps PCI Express Bus
Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE802.3az(Energy Efficient Ethernet)
Supports IEEE802.3bz(2.5GBASE-T)
Supports Full Duplex flow control(IEEE 802 .3x)
Packing list
1xPCIE 2.5G LAN Card
1x Low profile Bracket
