AFL FAST-LC-SM-6 FastConnect LC Singlemode SM OS2 Fiber Optic Connector, 6-Pack

AFL FastConnect LC Singlemode OS2 SM Fiber Optic Connector, 6-Pack FAST-LC-SM-6

AFL FASTConnect® field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

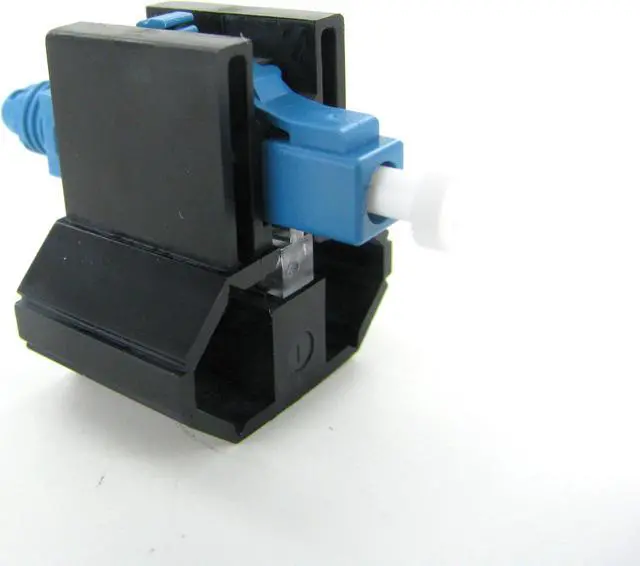

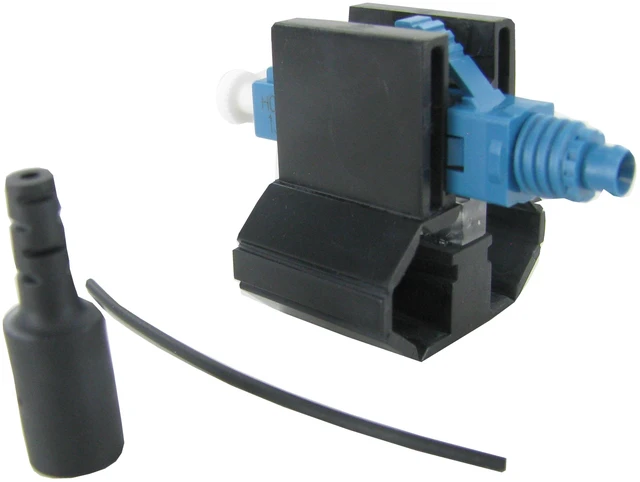

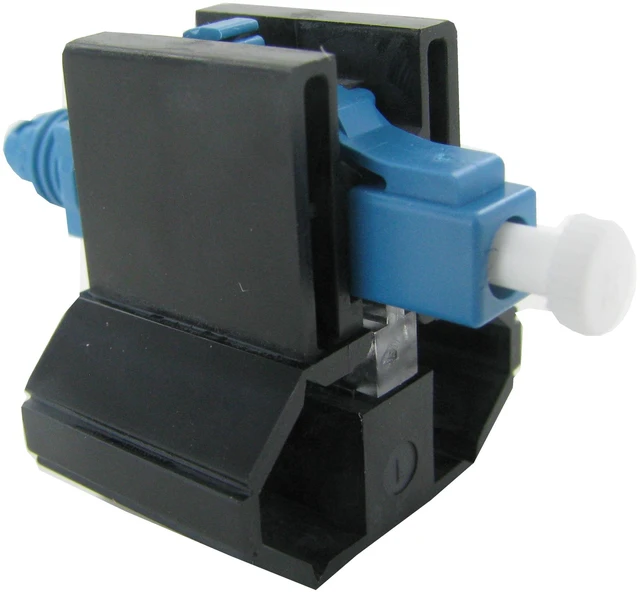

FASTConnect® connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a pass/fail signal once physical contact is achieved.
