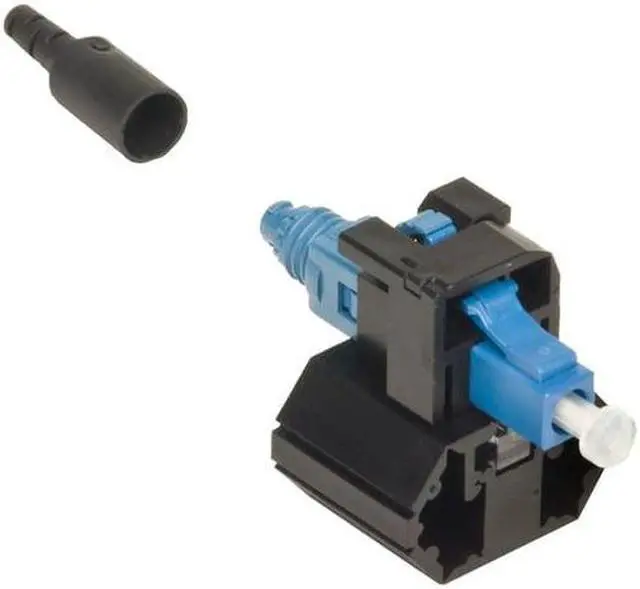

Commscope SFC-LCF-09-8X QWIK II LC SM Fiber Optic Connector 760117895

Portfolio CommScope®
Product Type Fiber connector
Product Brand Qwik II® | TeraSPEED®
Product Series Qwik II
Body Style BTW
Color, boot Black
Color, housing Blue
Ferrule Geometry Factory polished
Interface LC/UPC
Interface Feature Field Installable | Mechanical splice
Length 42.6 mm | 1.677 in
Compatible Cable Diameter 0.25 mm | 0.010 in | 0.9 mm | 0.035 in
Ferrule Material Zirconia
Cable Retention Strength, maximum 1.00 lb @ 0 °
Fiber Mode Singlemode
Fiber Type OS2
Insertion Loss Change, mating 0.2 dB
Optical Components Standard ANSI/TIA-568. 3-D
Insertion Loss Change, temperature 0.3 dB
Insertion Loss, maximum 0.5 dB
Insertion Loss, typical 0.2 dB
Return Loss, minimum 45 dB
Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Choking Hazard Small parts. Not for children under 3 years.

Overview

Specs

Reviews

Commscope Qwik II® Field Installable LC Connector, Singlemode-UPC, Blue, for 250/900um, single pack
Part # SFC-LCF-09-8X
