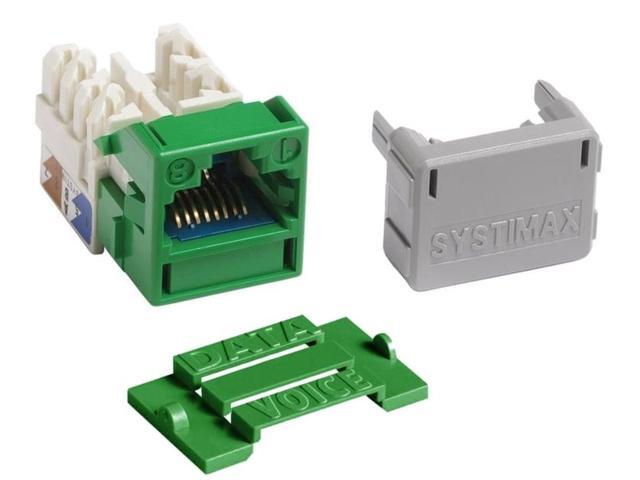

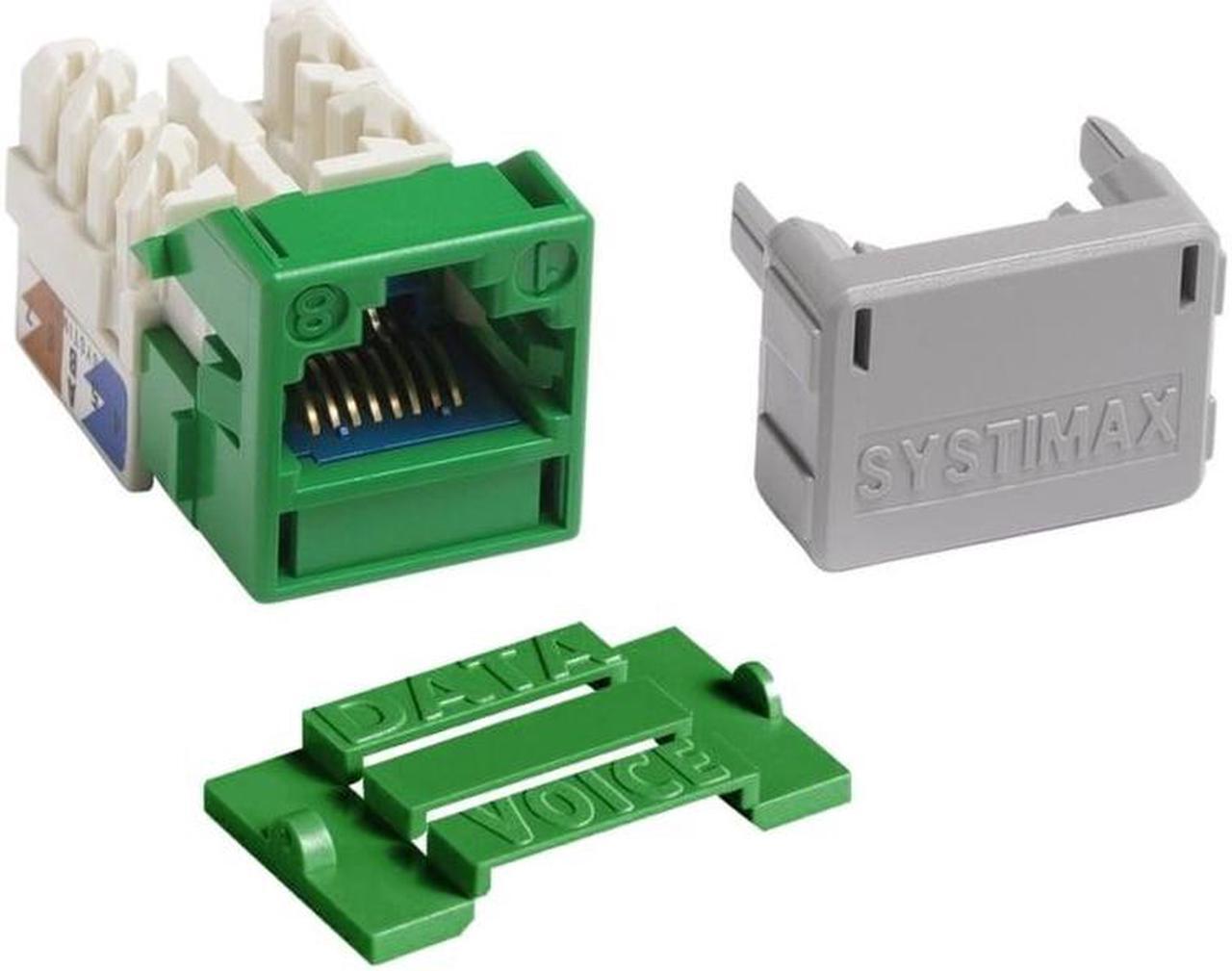

Commscope Systimax MGS600 Green Cat6a M-Series RJ45 Unshielded Modular Jack, 760092403

Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class EA and ANSI/TIA-568-C.2 Category 6A
Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate
Universal design and label supports both T568 A & B wiring
IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
Support network line speeds up to at least 10 gigabits per second
Low-profile rear protective strain relief cap, protects against contamination and secures the connection

Choking Hazard Small parts. Not for children under 3 years.

Overview

Specs

Reviews

Commscope GigaSPEED X10D® M-Series Modular Jack, RJ45, Cat6A Unshielded, Green

Additional Information
Date First Available	June 12, 2024
