M2 NGFF TO PCIE X4 Adapter Support PCI Express 3.0 2230 2242 2260 2280 Size M Key and B Key SATA Port Expansion Card

Specification

Type: PCIE to M2 Adapter

Built-in Interface: M Key + B Key dual interface

Support Slots: PCI-E 3.0 X4 GEN3 (Compatible with X4 X8 X16 slot)

Support devices: PCI-E specification m. 2 NVMe and SATA specification M. 2 NGFF disk

Support system: Windows XP/Vista/7/8/10, Linux, Mac OS.

Features:

M key M. 2 NGFF SSD to PCI-E X4 adapter or B key M. 2 NGFF SSD to SATA adapter.

The speed and other properties is not changed, only change the interface type and without any software or drivers.

Support size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm M. 2 NGFF SSD.

Macth with two kinds of Metal sheet (
length: 8 cm, 12 cm )

Compatible with any operating system ( On the premise of operating system must be compatible with your hard disk ).

About M. 2
NGFF SSD interface standard:

Socket 2 (B key 2 LANE): there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode.

Socket 3(M key,
4 LANE): PCI-E 4X (such as MZHPU128HCGM MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.

Package::

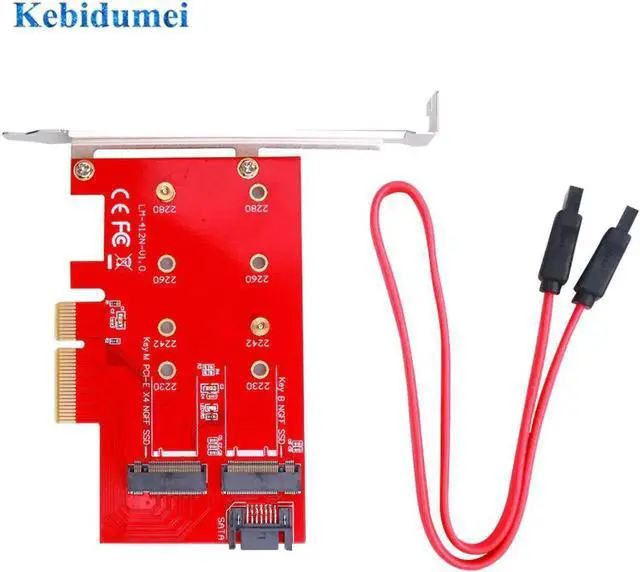

1 x Card
