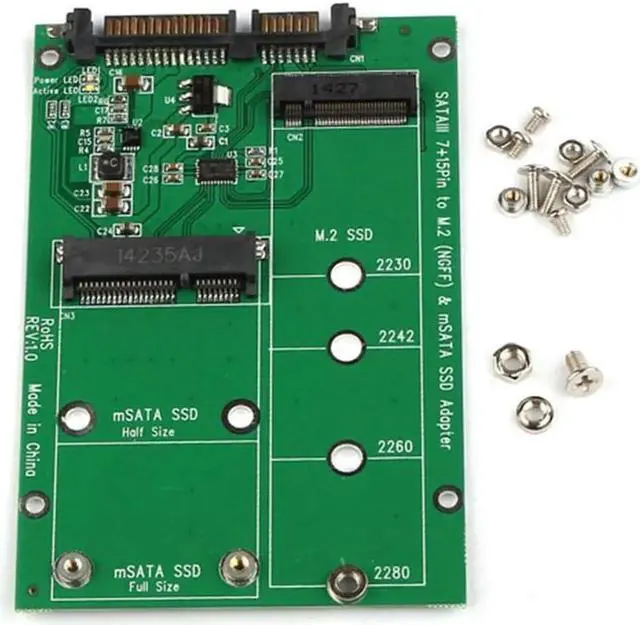

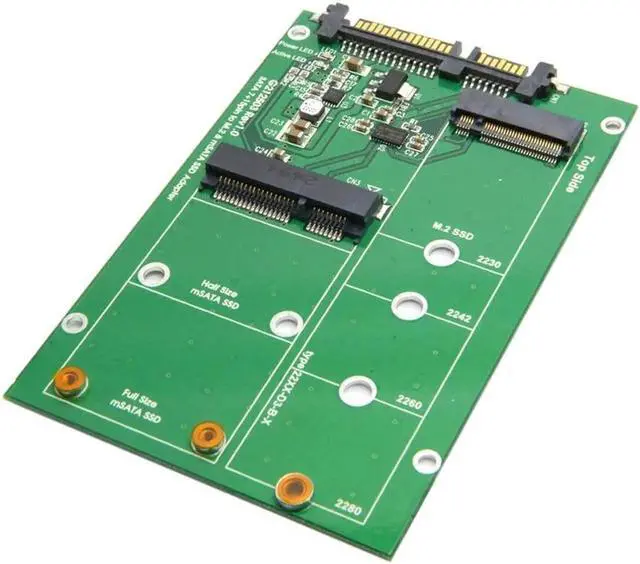

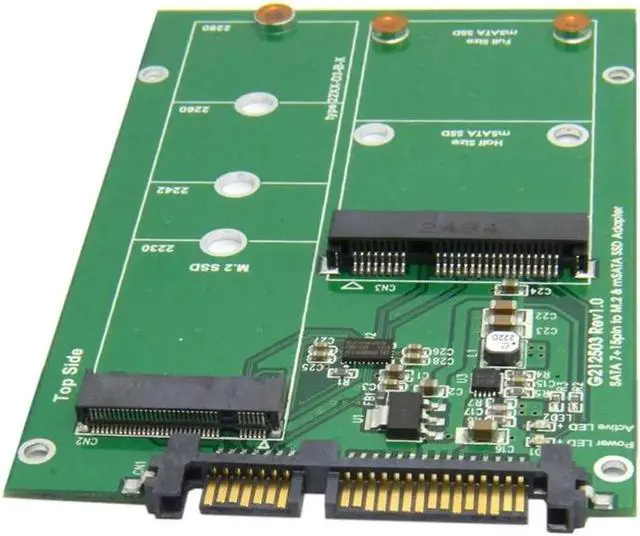

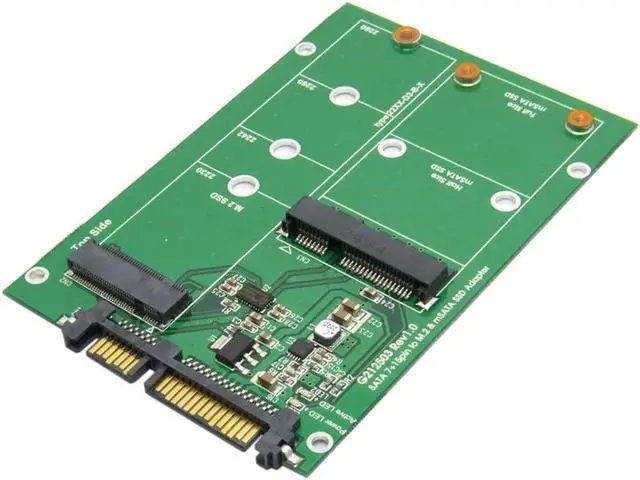

To M.2 Module Hard Drive Boards PCI Express Computer Adapter Card MSATA SSD Expansion Accessories Dual Use Converter

Features:

2.5" SATA SSD case size: 98 x 65.5 mm

M. 2 and mSATA to SATAIII module.

Mini PCI-e 52pin public seat.

M. 2 B key public seat.

Green LED indicates SSD power status.

Red LED indicates SSD action status.

When M. 2 and mSATA SSD are installed at the same time, the M. 2 SSD will be detected first,

and the mSATA SSD will not operate.

Specifications

:

Support for SATA Reversion 3.2

Compatible with PCI Express M. 2 Spec. Version 1.0

PWM synchronous buck converter power IC

Provides a maximum current of 3 amps

Short circuit protection

Instantaneous surge current protection

Electrostatic protection HBM (Human Body Mode) /2KV

Support M. 2
SSD specification size:

Type 2280-D2-B-M: 80mm (L) x 22mm (W)

Type 2260-D2-B-M: 60mm (L) x 22mm (W)

Type 2242-D2-B-M: 42mm (L) x 22mm (W)

Type 2230-D2-B-M: 30mm (L) x 22mm (W)

Support mSATA SSD specification size:

Half size mSATA: 26.8 mm (L) x 30mm (W)

Full size mSATA: 50.95 mm (L) x 30mm (W)

Package included: 1pc x SATA Adapter

Note:


1. Due to the light and screen difference, the item's color may be slightly different from the pictures.


2. Please allow 0.5 -2 cm differences due to manual measurement.
