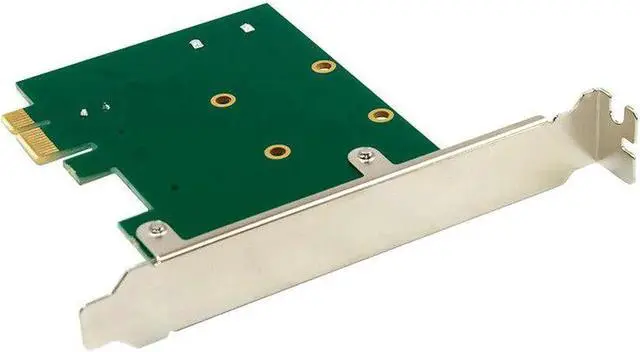

on card PCIE SATA 3.0 Desktop SSD Hard Drive Expansion Card 6Gbps MSATA NGFF Adapter Chip Asmedia ASM1061 Controller

PCIe ASM1061 mSATA&SATA 6Gbps expansion card is implemented using the new generation ASMEDIA chip ASM1061

High-speed I/O solution development. ASM1061 is a PCI Express Gen 2 to two-port serial ATA controller, supporting Serial ATA PHY,

High-speed interface up to 6Gbps. ATA revision 3.0 specification. It is backward compatible with SATA 2.0 / SATA 1.0, and has Msata interface

And SATA interface, you can connect HDD, SSD and other expansion storage.

PCIe slot

Comply with PCIe 2.0 specification, support 1xLane PCIe 2.0 endpoint device

Support 2.5 Gbps and 5.0 Gbps communication speed

The maximum payload of Payload is up to 128 bytes

Support error report, recovery and correction

Support message signal interruption ()

SATA controller

Comply with Serial ATA Specification 3.0.

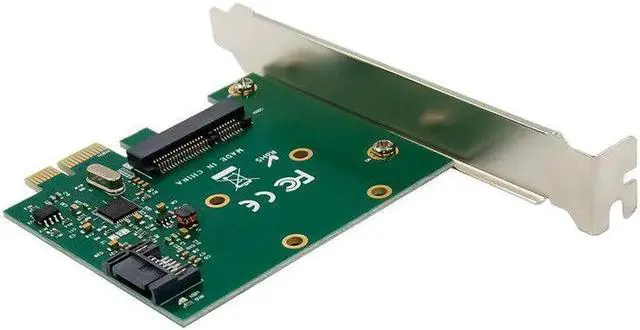

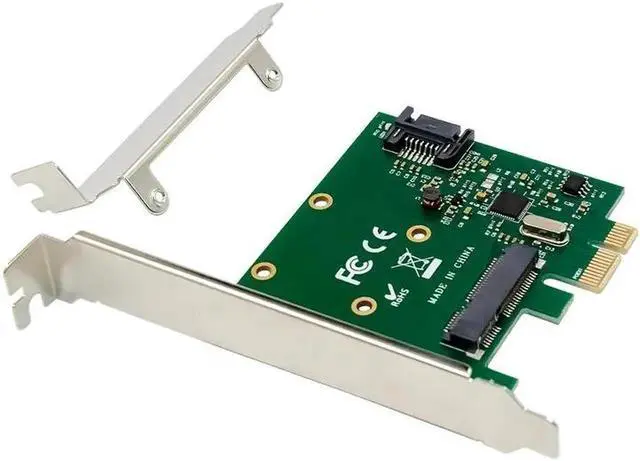

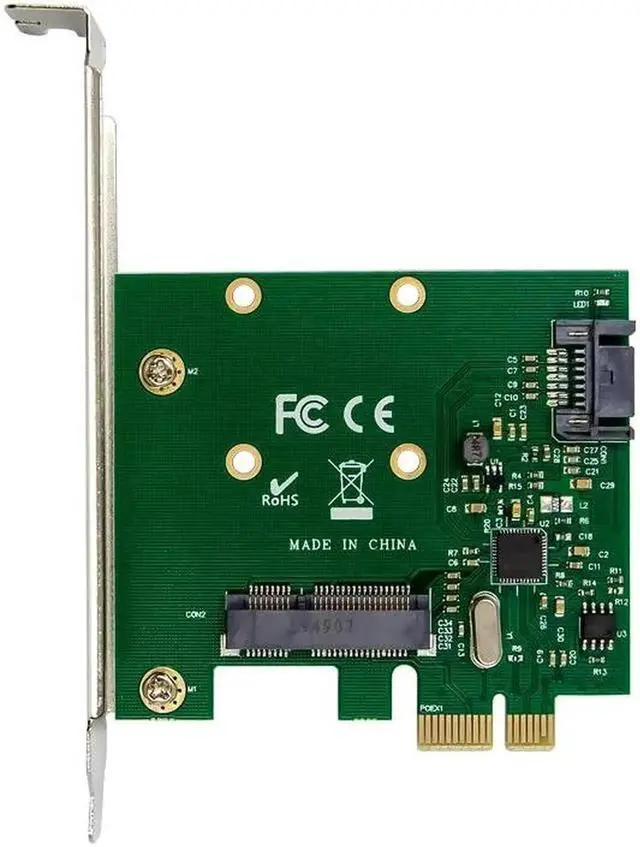

1x7pin SATA port, 1 x mSATA half/full size port

Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps.

Support programmable transmitter signal level.

It supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i.

It supports two SATA ports.

Support AHCI 1.0 and IDE programming interface.

Support native command queue (NCQ).

Supports FIS-based switching or command-based switching of the port multiplier.

Support partial and sleep power management states.

Support staggered rotation.

Operating system:

Windows XP/Server 2003/Vista/Win 7/Server 2008/Win 8/Win 8.1 /Win 10 32&64bit

Linux-baseOS, MAC 10.8 - 10.9

Package

1 x PCIe ASM1061 mSATA array card (bare card)

Optional accessories: SATA data cable, neutral box, CD-drive disc, product manual, short iron piece, screw accessories, etc.
