to 5-Port SATA3.0 Expansion Card Computer Chassis Adapter Card JMB585 Chip

to 5-Port SATA 3.0 Expansion Card Computer Chassis Adapter Card JMB585 Chip

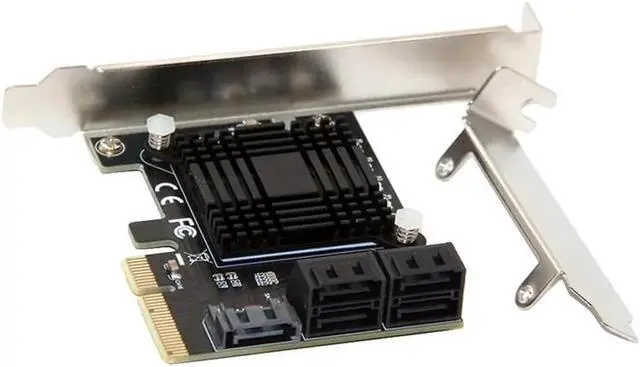

Product name: PCI-E 4X to 5-port SATA 3.0 expansion card

Expansion interface: 5 SATA 3.0 interfaces

Use chip JM585 chip

PCI Express Gen. 2 bus interface

Supports Serial ATA Revision 3.0 and is backward compatible

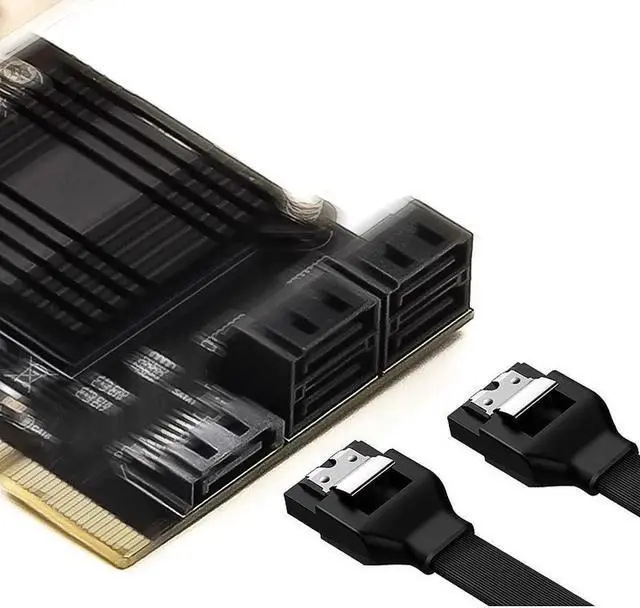

Provides 5 standard Serial ATA 7-Pin connection terminals

Supports Serial-ATA (SATA) Gen III 6Gb / s hard drive, and is backward compatible with SATA I / II

Supports connection of SATA I / II / III hard drives and optical disc recorders

Support IDE / AHCI mode

system requirement

One set of available PCI Express 4X slots

Windows 7 32 / 64-bit / XP / Vista / WIN7 / WIN8 / WIN10 / LINUX

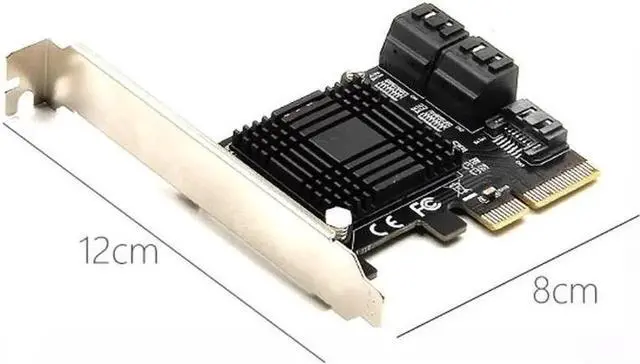

size: 12*8*2cm

Material: ABS + metal

colour: black

Package Contents:

1 * Transfer Card

5 * connecting line

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
