88SE9230 Chip SATA/PCIE Raid Controller SATA PCIE SATA Raid Card PCI-E SATA Raid PCI Express 4X with Low Profile Bracket

88SE9230 Chip SATA/PCIE Raid Controller SATA PCIE SATA Raid Card PCI-E SATA Raid PCI Express 4X with Low Profile Bracket

About Description:

Specification:

SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID

Ports: 4 Internal SATA 6Gb/s Ports

Compliant with PCI-Express Specification v 2.0 and Backward Compatible with PCI-Express v 1.0

Compliant with Serial ATA Specification 3.0

PCI-Express x4 Interface (for Selected Models) is Compatible with PCI-Express x4, x8 and x16 slots

Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps

Hot Plug and Hot Swap

Supports Native Command Queue (NCQ)

Supports Port Multiplier FIS Based Switching or Command Based Switching

Compatible with SATA 6G, 3G and 1.5G Hard Drives

RAID Function:

RAID 0-Striping (Stripe Size: 32K, 64K)

RAID 1-Disk Mirroring

RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)

HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)

Note: Not Supported RAID on PM

Software Requirement: Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6. x and Above (AHCI devices driver is a built-in feature)

You'll receive:

1 x PCI Express to 4-port SATA 3.0 Raid Controller1 x Low Profile Bracket1 x Driver CD

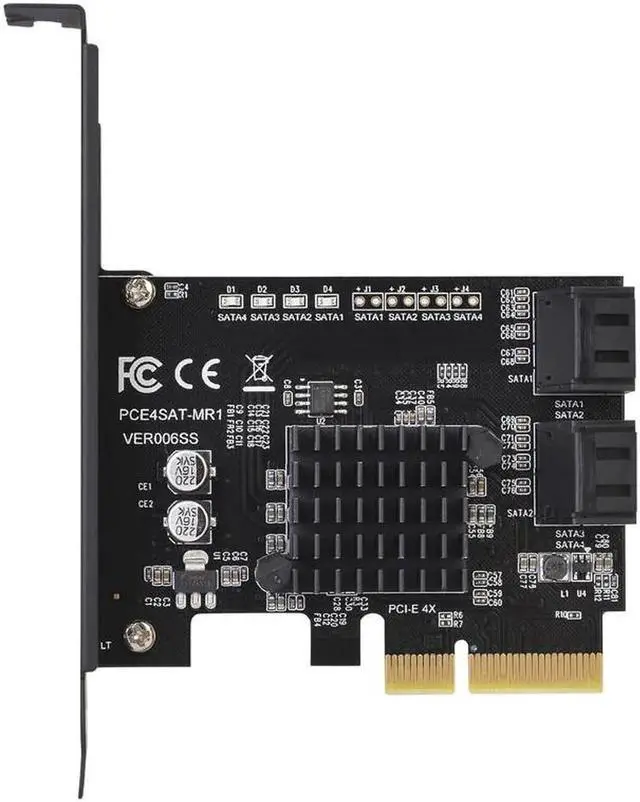

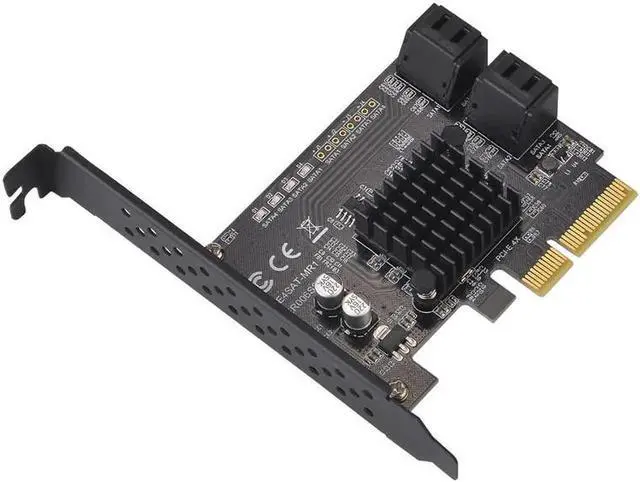

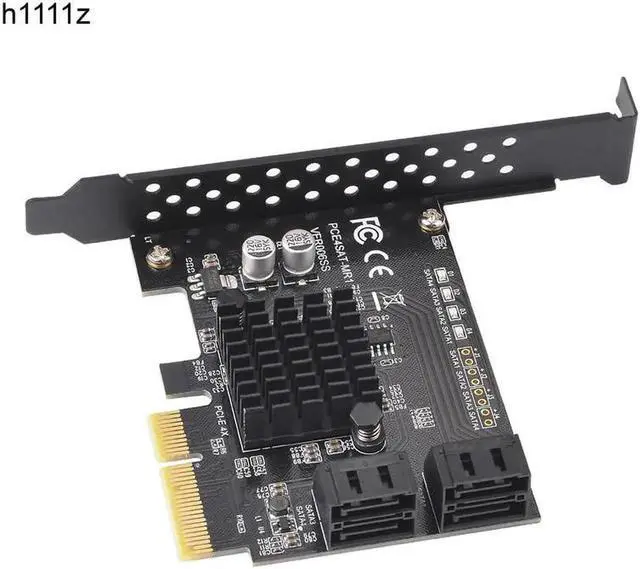

Please check pictures for more details.
