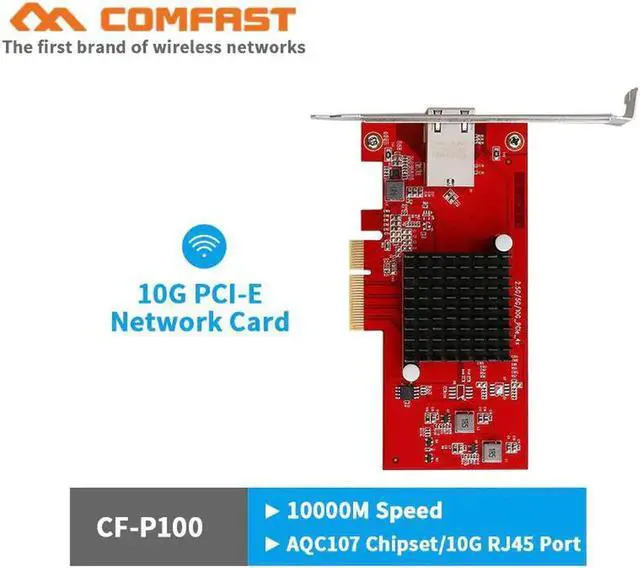

10Gb PCI-E Network Card AQC107 Chipset 2.5G/5G/10G PCIE-X4 Network adapter Fast Transmission Dongle for windows Linux

10Gb PCI-E Network Card AQC107 Chipset 2.5G /5G/10G PCIE-X4 Network adapter Fast Transmission Dongle for windows Linux

Features

1.10G PCI-E network card

2. E-sport equipment 2.5G /5G/10G Network card

3.

Weight: 72g

4.

Dimension: 130*55mm

5.

Type: PCIE-X4

6.

Power consumption: 10Gbps - 5.3W

7.

Hardware type: PCI Express 3.0 ( 8.0 GT/S)

8.

Hardware: AQUANTIA-AQC107

9.

Support OS Windows7, 8. X, 10

Windows Server 2008R2, 2012, 2016;

Linux 2.6 x to 4. x

10.

Suits for PCI Express enabled PC, and with available PCI Express x4 slot Gen 2.0 or higher (x8, x16)


11.
Standard: IEEE 802.3 u 100 BASETX, IEEE 802.1 ab 1000BAS,

IEEE 802.3 an 10GBASETT, IEEE 802. IQ VLANS, IEEE 802.3 x Flow Control, IEEE 802. Ip Priority Queuing,

IEEE 802.3 az EEE

12. Suits for PCI Express enabled PC, and with available PCI Express x4 slot Gen 2.0 or higher (x8, x16)

Packing List

With Retail Box 1* 1*Driver disk 1*User Guide 1*Screw

1*Case Baffle

Install guide


1. Open the side cover of the case

Take off the PCI-E slot baffle


2. Plug the product into the PCI-E slot

Insert network card and make sure its tightened. And then tighten the screw.
