Specifications

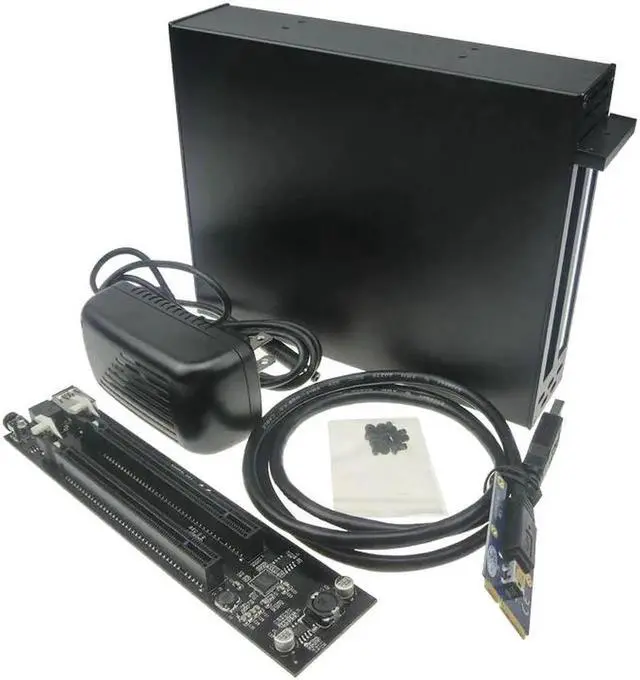

PCIe to Dual PCIe slots adapter
Optical drive bayas installation
Aluum alloy enclosure
Dimension: 192*147*42mm
This adapter was designed to convert the PCIe bus into two PCI-e. It allows you to connect up to 2 PCI-E expansion boards to the motherboard PCIe connector (supports full-size/half-size).
General Features
Compliant with PCI Express Specification 1.0 a
Suit for PCIE X1 X4 X8 X16 card (pcie 1x speed)
Compatible with full-size and half-size PCIe connector
DC power adapter for power input
The power (12V, 5V, 3.3V, -12V) for each PCI expansion board is supplied via a 12V/2A power adapter attached.
No drivers required
Optical drive bay installation
Aluum alloy enclosure deminsion: 192*147*42mm
OS support
Windows 8(32bit/64bit) Windows 7 (32bit/64bit) Windows Vista (32bit/64bit) Windows XP (32bit/64bit) Windows Server 2003 (32bit) Windows Server 2008 (32bit/64bit) Mac OS 10.4 + Red Hat Linux 2.6 x+ Solaris
