HDMI Extender 196ft HDMI Over Single Cat5E/6/7 HDMI Repeater HDMI Balun Sender Transmitter Receiver Support 1080p 3D HDMI 1.4a HDCP EDID

Product Description

The HDMI extender can use a CAT6 cable to transmit the HDMI signal to a display no more than 196ft.

Specification:

Support resolution: 3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz

Support audio format: DTS-HD/DTS/DSD

Max transmission bandwidth: 1.65G bps

Input/Output HDMI cable distance: 16ft (5m) AWG26 HDMI standard cable

Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V

NOTE: UTP cables must follow the IEEE-568B standard.

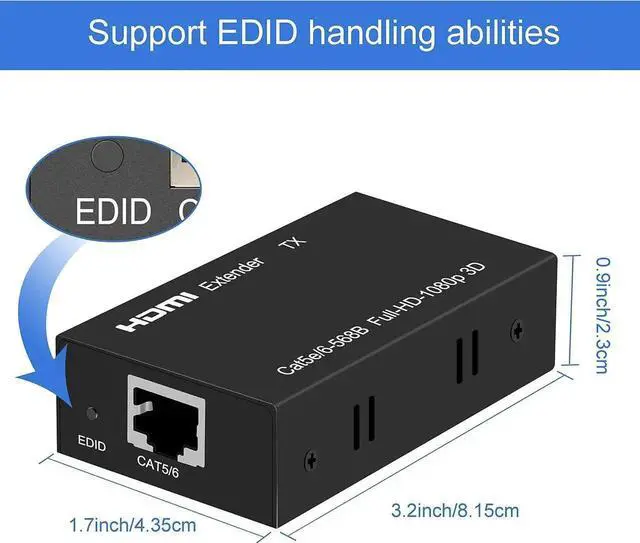

EDID copy

Connect the sender and the monitor with an HDMI cable.

Connect the power and press the EDID button, indicator will flash 3 times.

After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.

(Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings)

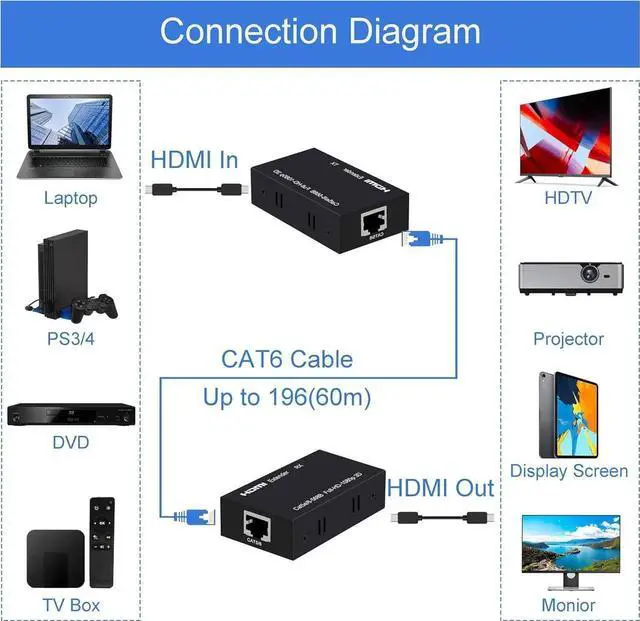

Long distance

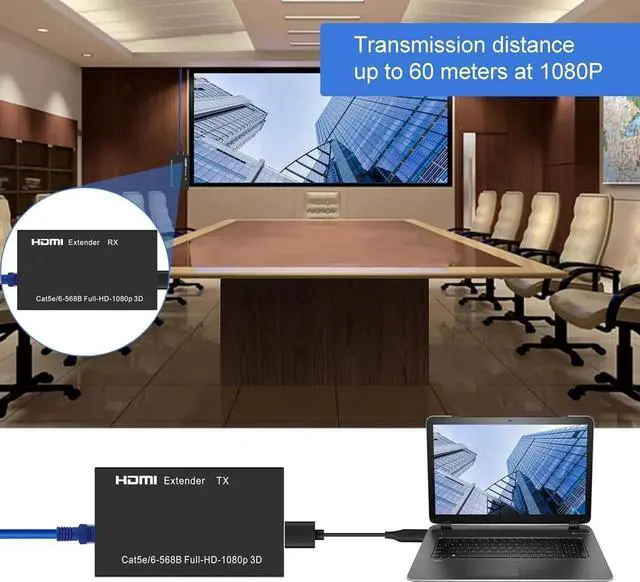

Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender

Our equipment supports 3D effects to give you an immersive experience

Note: Requires both your input and output to support 3D functionality

Note: Oxygen-noting copper Cat 6 cable is recommended for better transmission.

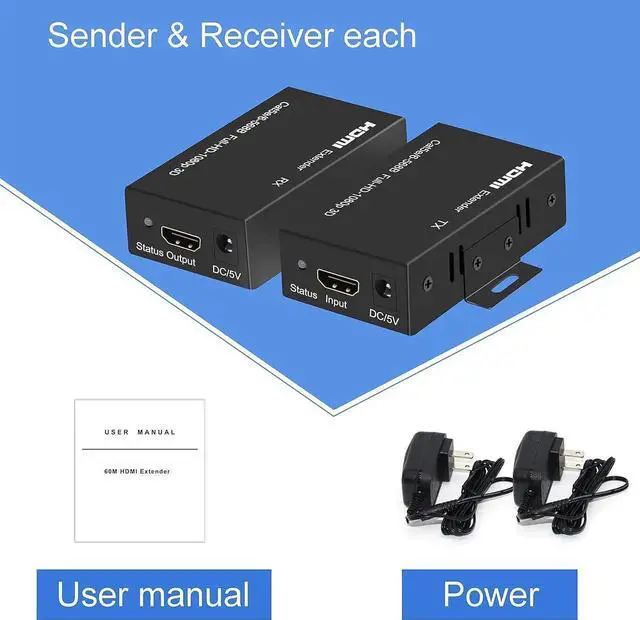

Products include

HDMI sender x 1

HDMI Receiver x 1

5V DC power supply x 2

User's Manual x 1

Brackets x4

NOTE: (Please

note: The TX and RX of this product must be connected to a power adapter, single-sided power supply is not supported)

High compatibility & Multi-scene applicationsBuilt-in automatic adjustment system and ESD protection system. Compatible with PC, game console, Blu-ray player, media player, etc.; It can be widely used in the area of education, outdoor or indoor LED display screens, project, video conference, metro, multimedia home theater, etc.
