PCI-E 2.0 to 6G Expansion Card Dual Port SATA3 Hard Disk Conversion

Type: Add On Cards

Features:

PCI-Express ASM1061 single chip expansion card with high-performance

PCI-Express to two Gen3 6Gb channel host controllers, providing server level functions for desktops.

The ASM1061 PCI-Express SATA- 3.0 expansion card can use the industry fastest 6Gb hard disk. backward compatible with traditional 1.5G b or 3Gb drives.

Support for WindowsXP / Vista / Win 7 / Win 8 / Server 2003 / Server 2008 R2. / Win 10Linux 2.6 x and higher syetems

PCIe slot: support PCIe 2.0 specification and support 1xLane PCIe 2.0 devices

Specifications

:

PCIe slot Support 2.5 Gbps and 5.0 Gbps communication speed

IDE programming interface register supporting controller

AHCI programming interface register supporting controller

Support integrated power management

Support error reporting, recovery and correction

controller: support Serial-ATA Specification 3.0.

The communication speed of 6Gbps, 3.0 Gbps and 1.5 Gbps supported.

Support programmable transmitter signal level.

Support Gen1i, Gen1x, Gen2i, Gen2m, Gen2x and Gen-3i.

Two ports are supported.

Supports AHCI 1.0 and IDE programming interfaces.

Native-Command Queuing (NCQ) upported.

Supports FIS-based switching or command-based switching of the port device.

Support partial and sleep power management states.

Interleaved rotation supported.

One available PCI-Express slot

Size: approx 64x 57mm/ 2.51 x 2.24 in (measured without PCIe holder)

Package Includes:

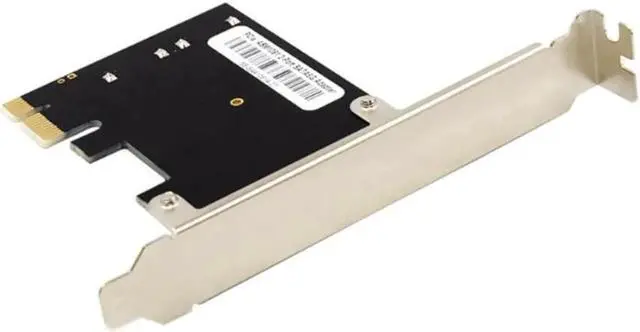

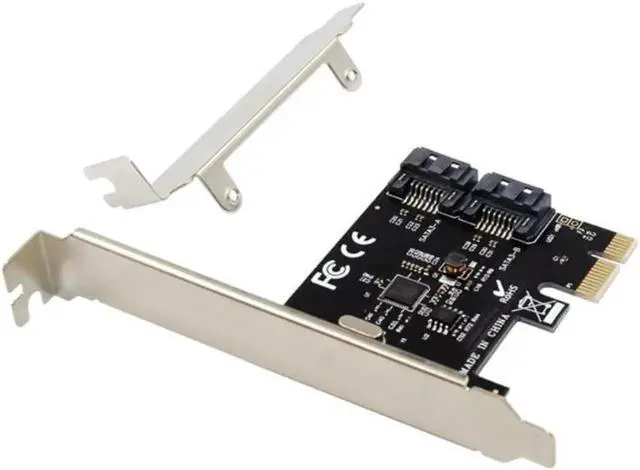

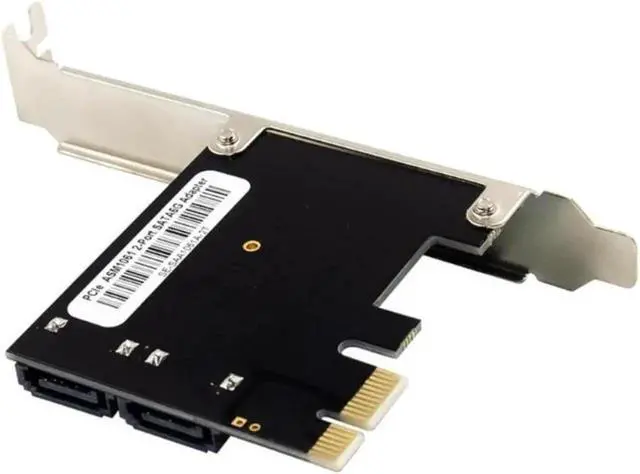

1 x PCI-E ASM1061 SATA 3.0 Array Card

1 x Driver

2 x Sata- Cable

1 x short iron sheet

Note:

Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.

Please allow 0-1cm error due to the manual measurment.
