HDMI Extender Splitter Over Ethernet 1 in 8 Out Cat5e or 6 Up to 165FT 50m HD1080P 60Hz 3D with Port Loop Out Support EDID POC Suitable for Projection Exhibition Presentations

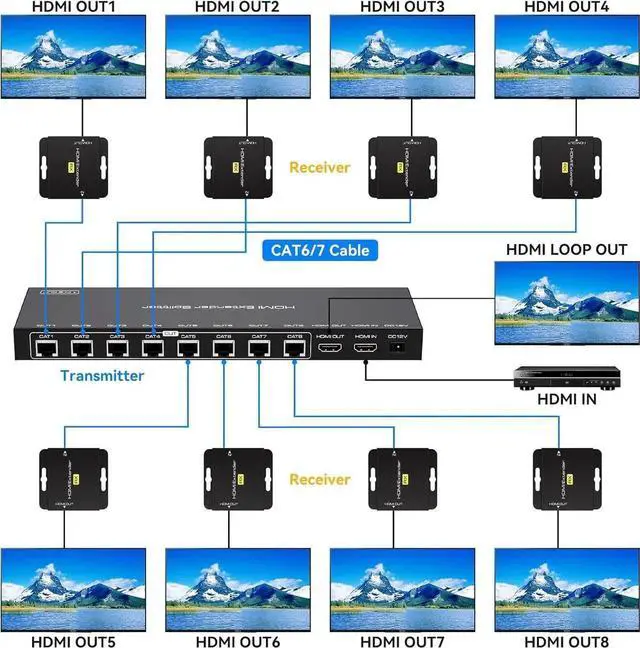

HDMI Extender extends HDMI audio/video signals up to 1080p@60Hz to 9 simultaneous output video displays. (1 hdmi ring out port + 8 network ports)

HDMI extenders can be widely used in education, churches, classrooms, conference rooms, projects, gaming, videoconferencing, metro so on.

EDID Management Support

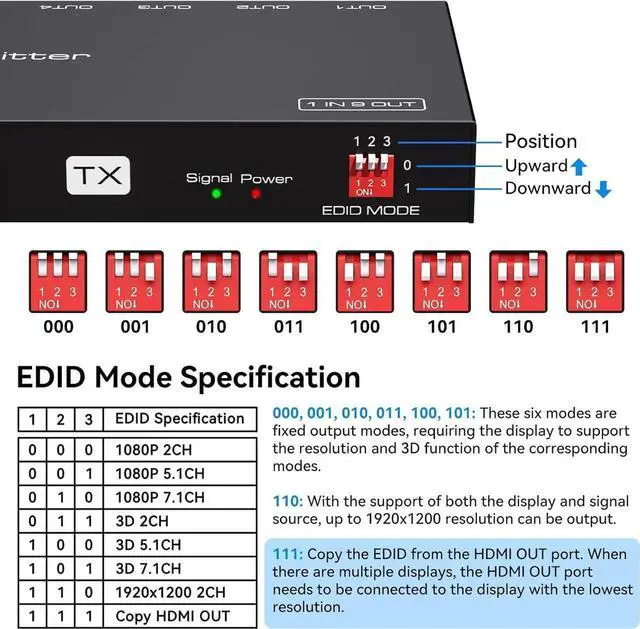

Supports 8 EDID modes to perfectly match different devices. Simply turn the switch to achieve the desired mode for the most compatible signal.

POC Function

The HDMI Extender is powered by single-ended (POC) technology. Simply connect the TX terminal for power.

Long Distance Transmission

Long distance transmission over Cat6/7 cables up to 50 metres/165 feet.

Supports 1080p@60Hz

Support lossless transmission 920x1200@60Hz /3D/1080p/1080i/720p/576i/480p.

Support for EDID Presets:This Extender Splitter EDID Replication recognizes display device parameters and matches them to the device (source). Supports a wide range of EDID preset schemes, which greatly improves device compatibility. Plug and play, no driver is required to get the most suitable video/audio signal

Uncompressed Transfer:This HDMI Splitter Extender Supports resolution up to 1080P@60Hz and 3D visual enjoyment. Supports audio formats DTS-HD/LPCM7.1/DTS/AC3/DSD, and supports video color format 24bit. (Note: If you want to achieve a 3D visual experience, all devices connected to the extender must support 3D functionality)

Widely Compatible:The HDMI extender 1X8 is compatible with PC, game console, Blu-ray player, media player, etc, and can be used in education, indoor and outdoor LED screens, technology, video conferencing, multimedia home theater and other field

HDMI Extender Splitter 1 Input 8 OutputThis HDMI Extender Splitter Over Ethernet can split one signal source into 8 identical signals for video and audio through CAT5e/CAT6 that can transmit up to 165FT (50m) distance. The HDMI extender ethernet has 1 HDMI loop-out, which is a long-distance audio / Ideal for video extender.

Note: In order not to affect the video transmission quality, the network cable must comply with the T568B standard line sequence

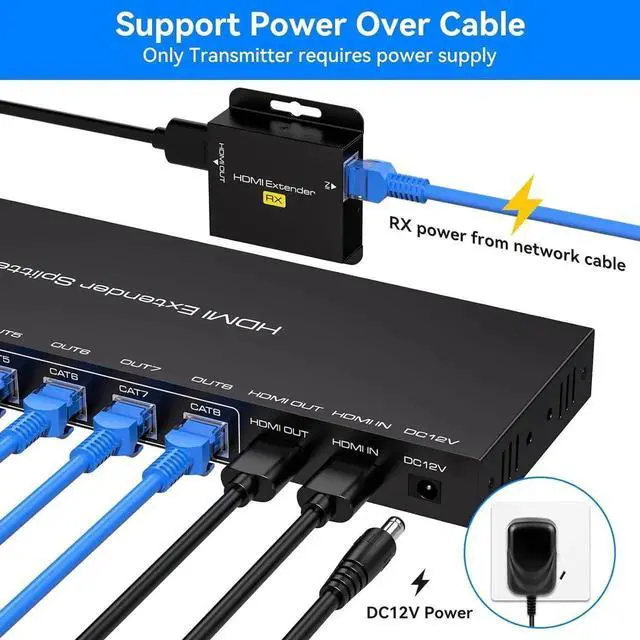

Turn on CAT6 Power Through POC TechnologyThis Splitter Extender HDMI 1 in 8 out adopts POC technology, just connect the power supply to the TX port, and the RX port can support the operation of the whole device by connecting the network cable. The minimum transmission voltage is 5V, safe, reliable, simple

and convenient. (Note: TX port must be connected to 12V power supply, otherwise it will damage the device)
