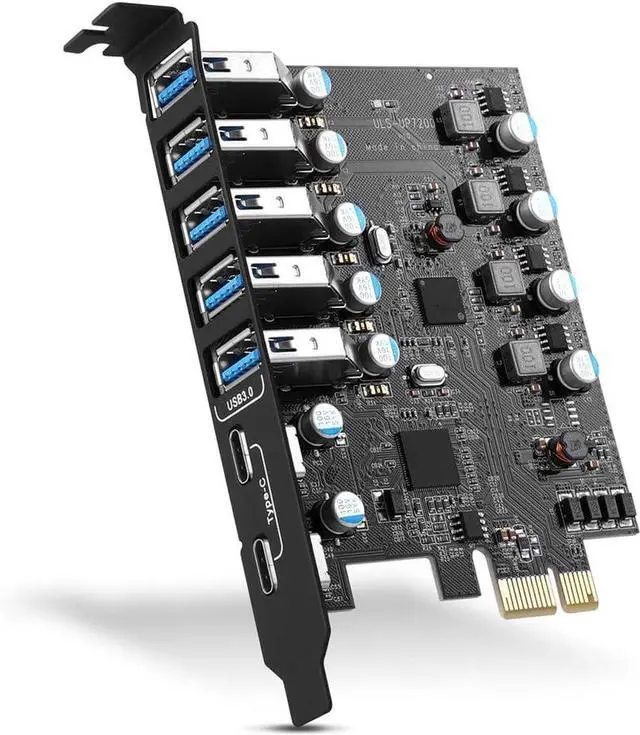

PCI-E to USB 3.0 7-Port(2X USB-C - 5X Type-A) Expansion Card,PCI Express USB Add in Card, Internal USB3 Hub Converter for Desktop PC Adapter Support Windows 10/8/7/XP and MAC OS 10.8.2 Above

Product advantages:

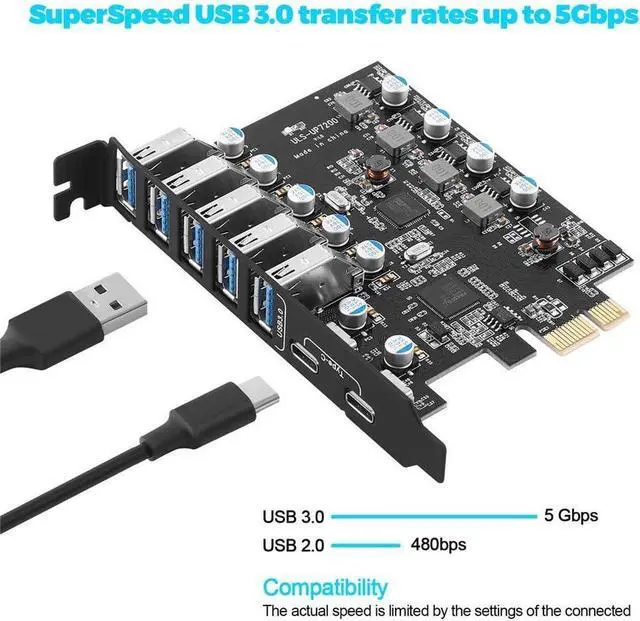

1. Add 7 ports on the desktop through the PCI Express slot, the port has a maximum data transmission speed of 5Gbps to achieve a fast connection.

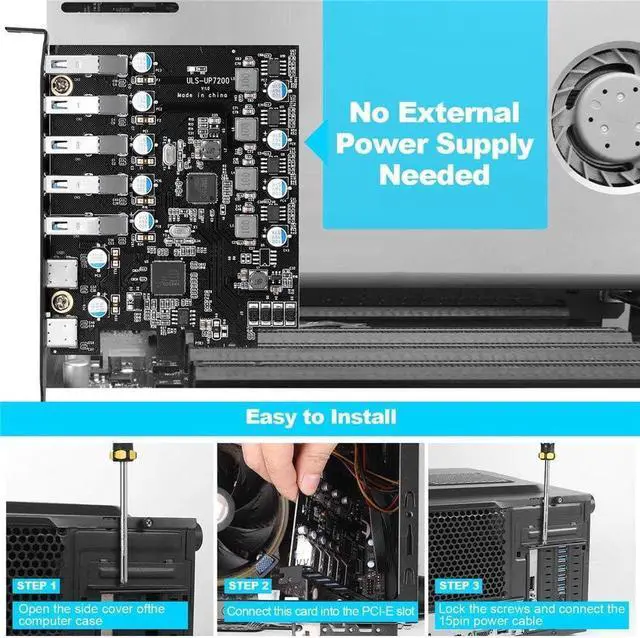

2. Users do not need to plug in any additional power cords from the power supply.

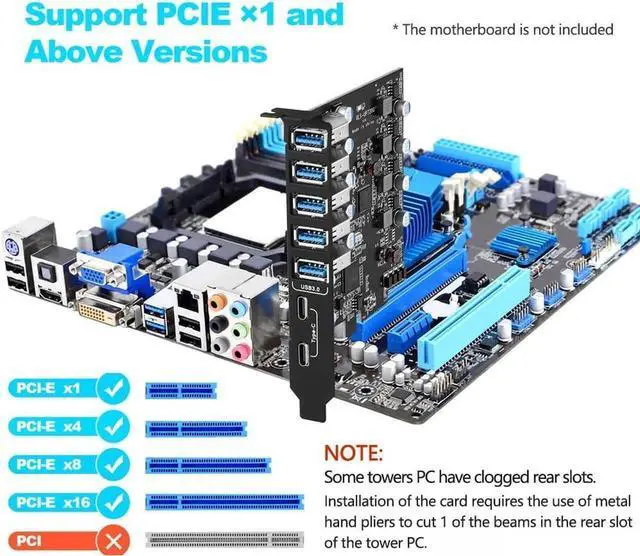

3. Compatible with PCIE 2.0 / 3.0 / 4.0 versions, supports PCI-E X1 through PCIE X16 slots..


4. The internal USB card provided from the motherboard through the PCI Express slot-to ensure a stable connection and improve data transmission speed. Will not lose the connection problem like an external USB Hub.

Supported Operating Systems:

For Windows XP, Vista, 7, 8, 8.1, 10(32/64bit), Windows Server 2003, 2003R2, 2008, 2008R2, 2012, 2012R2, 2016, 2019(32/64bit),

For Mac Pro 4.1, 5.1, 7.1 (model 2009~2020), Linux, Ubuntu 20.04 system.

(Windows 7 / XP system needs to install the driver from the attached CD, or download the driver according to the content of the user manual. Please feel free to contact*us if you encounter compatibility issues/not working. )

NOTE:


1. This USB PCIE card only supports data transmission, not video signal transmission (DP ALT, HDMI, VGA).

2.
USB-A port power supply: 5V- 0.9A;
USB-C port power supply: 5V-3A, used for low-power USB devices (not supported for monitors).


3. We weighed capacity and convenience, so we designed the USB-A port on the card to be vertically oriented. The vertical height is 0.7 inches. It doesn't apply to small pc and mini server case. For the USB A port it is recommended to: Take a USB cable (A end) and see if it will fit horizontally in the slot of your case. Then take the USB cable and insert it into the card so that it will center the ports. For the narrow rear slot area of the PC host, you need to just cut the crossbar between the 2 slots with small sheet metal hand pliers.
