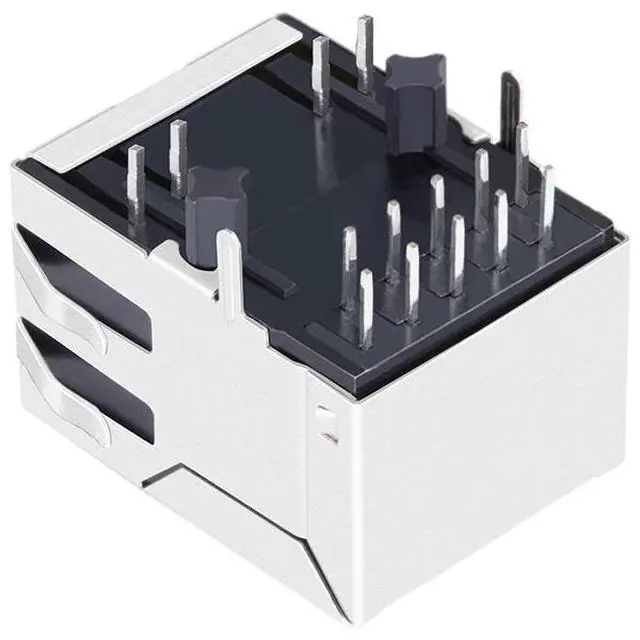

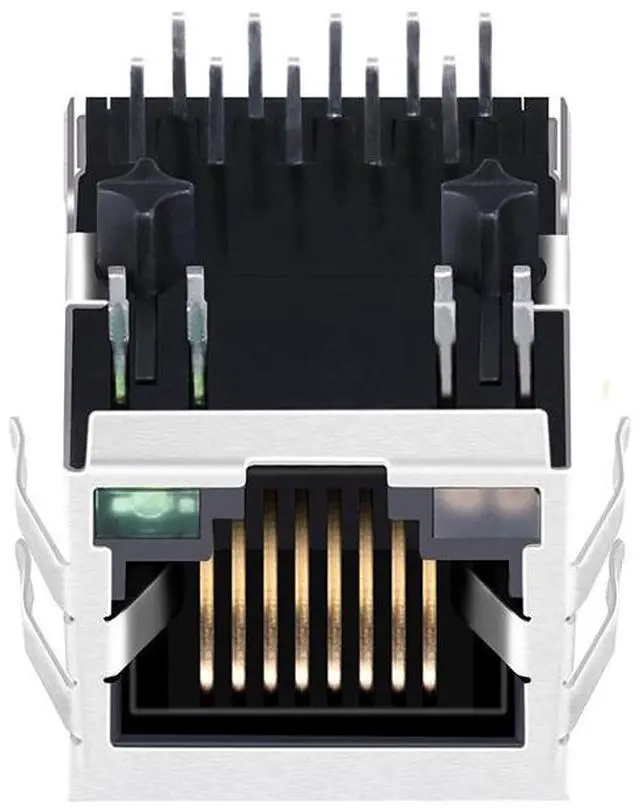

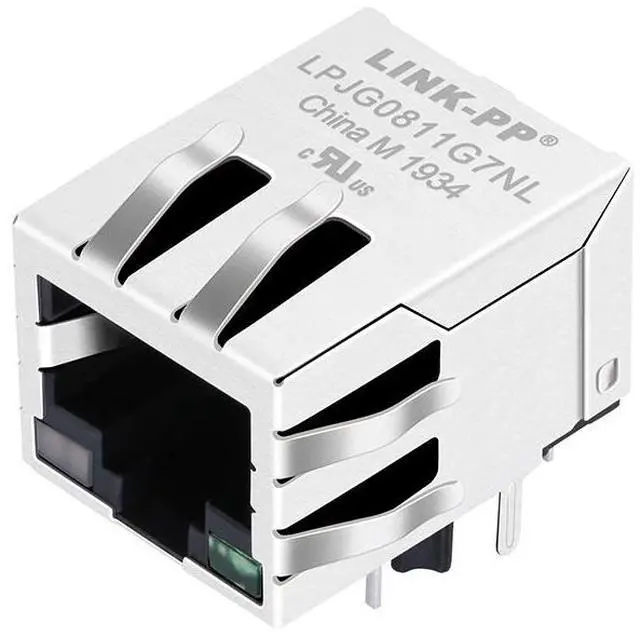

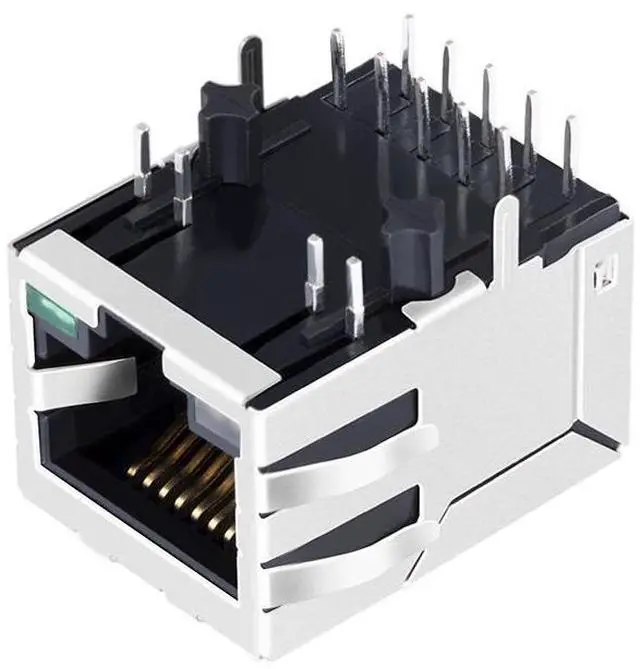

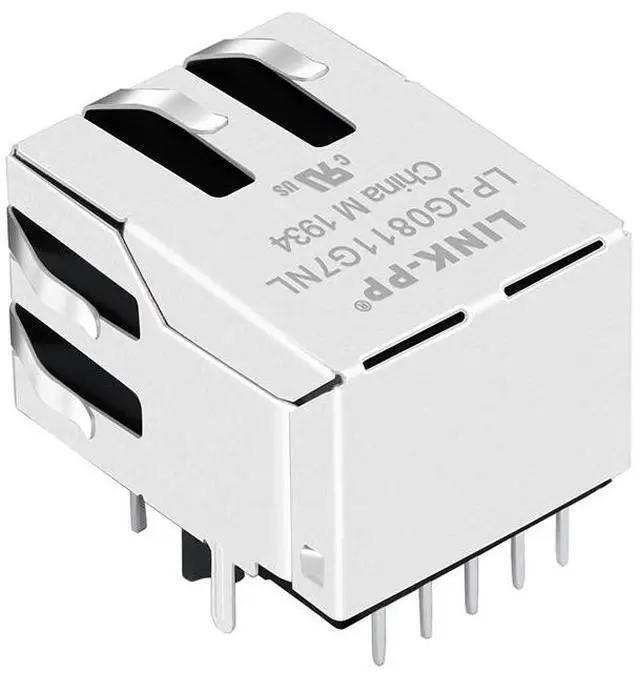

LINK-PP 1840434-5 10G Ethernet RJ45 Connector, 10/100/1000/10GBase-T Shielded with Toroidal Coil, 1500Vrms Hi-pot, Tab Up/Down Option, Through Hole, Gold Plated 6" (Tape & Reel)
- 1. 10 Gigabit High-performance Network Interface: The most prominent feature, supporting 10G Base-TX 10 Gigabit Ethernet, and also backward compatible with 1G, 100M, and 10M networks, suitable for high-end network equipment.
- 2. Industrial-grade security design:
- 1500Vrms withstand voltage test: Provides an extremely high electrical safety level, ensuring the safe operation of the equipment.
- Integrated magnetic ring module: Adopting a toroidal coil structure, with a minimum inductance value of 350H, providing excellent signal integrity and anti-interference capability
- 3. High-quality material and craftsmanship:
- 6-micron gold coating: Significantly thicker than conventional gold coatings, providing excellent corrosion resistance and connection reliability.
- Thermoplastic housing + copper alloy contacts: Ensuring the mechanical strength and durability of the product
- 4. Flexible direction selection: Supports both Tab Up/Tab Down locking directions, providing greater design flexibility and adapting to different chassis layout requirements.
- 5. Complete electromagnetic shielding: EMI full shielding design ensures the stability and anti-interference capability of 10-gigabit high-speed signal transmission.
- 6. Widespread application fields: Particularly suitable for SOHO devices, motherboard-integrated network cards, hubs, switches and other various network equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufacturer model: 1840434-5
Brand: LINK-PP
Type: RJ45
Connector type: RJ45
Description: Ethernet RJ45 Connector
Origin: Guangdong, China
Packaging: Tape & Reel
Installation method: Through Hole
Shielding: EMI Shielded
Contact material: Phosphor Bronze
Contact coating: Gold-Plated (6" min)
Operating temperature: 0°C ~ 70°C
Pin count: 8 PIN
Wire core count: 4-core
Application fields: SOHO/LAN-on-Motherboard/Hub/Switch
Shell material: Thermoplastic
Speed support: 10/100/1000/10G Base-TX
Withstand voltage test: 1500Vrms
Inductance value: 350H min
Coil structure: Toroidal
Locking direction: Tab Up/Tab Down
Component status: Active
