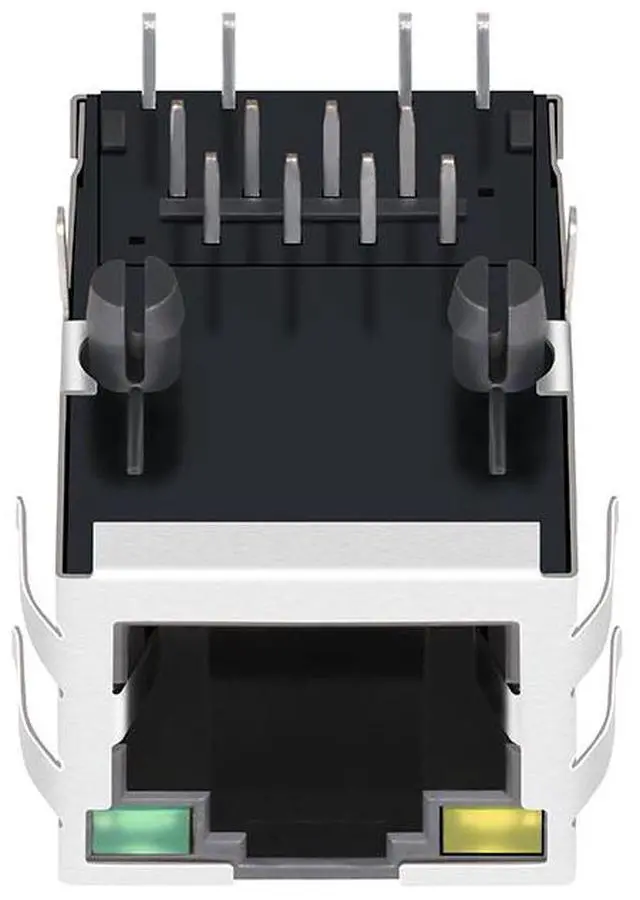

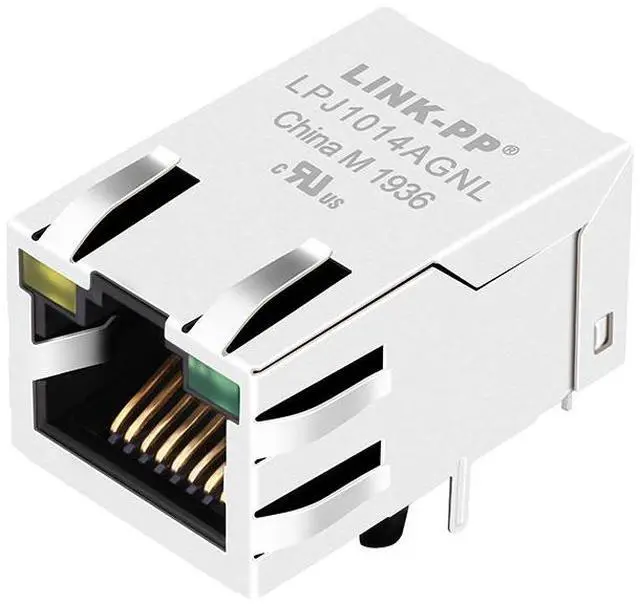

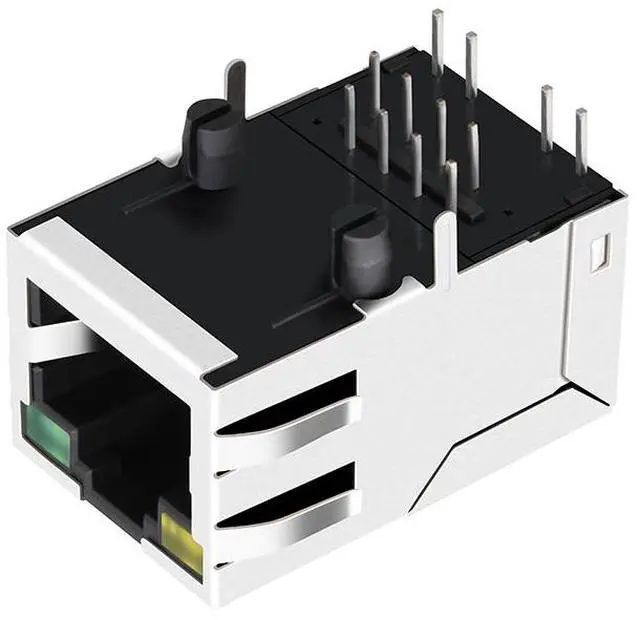

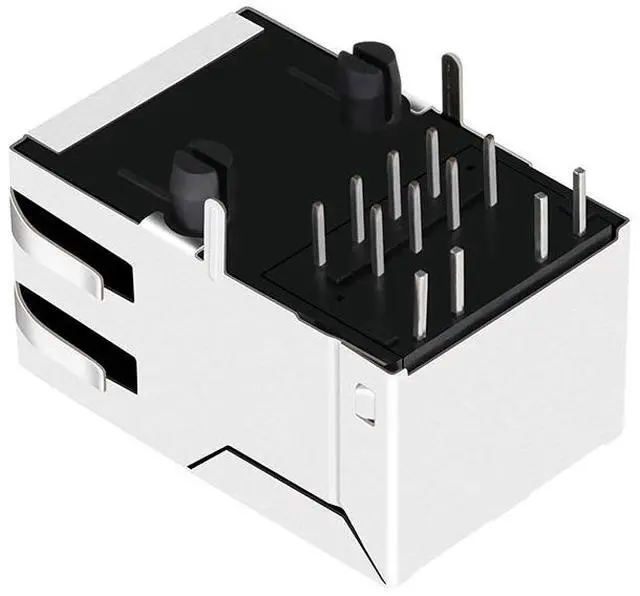

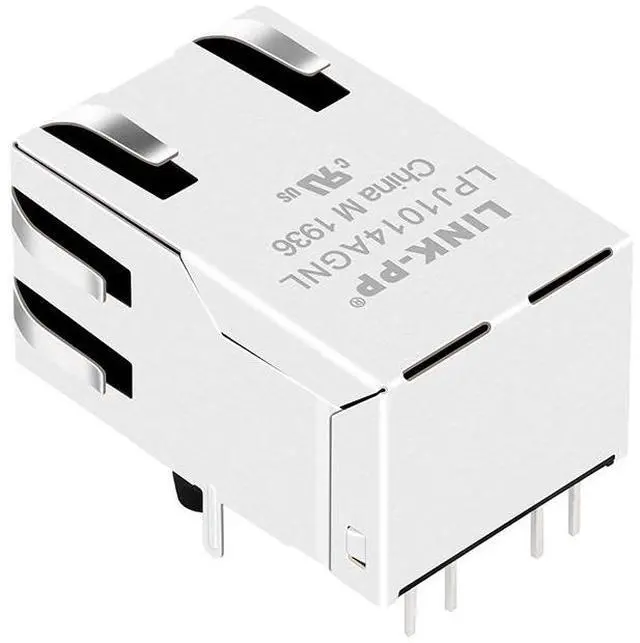

LINK-PP XRJH-01D-1-D12-170 RJ45 Magjack Connector, 8P8C 10/100Base-T with Magnetics, Shielded with Tabs, Tab Up Orientation, with LED Indicator, Through Hole Mount (Tape & Reel)
Limited time offer, ends 12/21 By Torpedo Nova
- 1. Integrated magnetic bead Magjack design: Incorporates magnetic components (transformer and common-mode choke coil), providing signal conditioning, electrical isolation, and noise suppression functions, simplifying PCB layout
- 2. Complete Electromagnetic Shielding System:
- EMI fully shielded housing: Provides 360-degree electromagnetic interference protection
- Shielding spring design: Through a reliable connection between the spring and the PCB ground layer, the shielding effect is enhanced.
- 3 Special Direction Design: Utilizes the Tab Up (lock mechanism upward) interface direction, which is suitable for specific chassis layouts and installation requirements.
- 4. Status indication function: Equipped with LED indicator lights, which can display the network connection status and data transmission activities in real time.
- 5. Gigabit Network Performance: Supports 10/100 Base-T transmission rates, meeting the requirements of most network devices.
- 6. High reliability connection:
- Phosphor bronze contact pieces are treated with gold plating for compatibility.
- Through-hole welding provides a strong mechanical connection.
- 7. Automation production support: Roll packaging is suitable for automated assembly machine production
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufacturer model: XRJH-01D-1-D12-170
Brand: LINK-PP
Type: RJ45 Magjack
Connector type: RJ45
Description: RJ45 Magjack
Origin: Guangdong, China
Packaging: Tape & Reel
Installation method: Through Hole
Shielding: EMI Shielded
Contact material: Phosphor Bronze
Contact coating: Gold-Plated
Operating temperature: 0°C ~ 70°C
Position/Contact count: 8p8c (RJ45, Ethernet)
Port count: 1x1 Port
Speed: 10/100 Base-T
Local area network application: Ethernet (Non PoE)
Wire core count: 4-core
Per-port wire core: 4
Direction: Tab Up
Locking direction: Up
EMI shielding clip: With
LED option: With
Component status: Active
