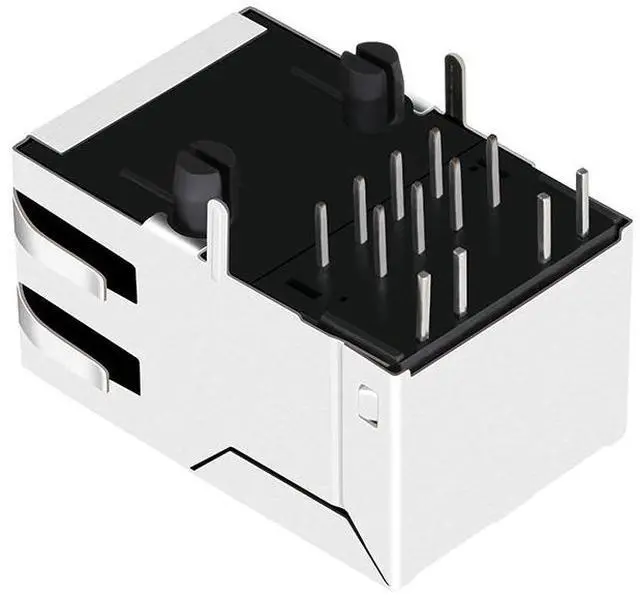

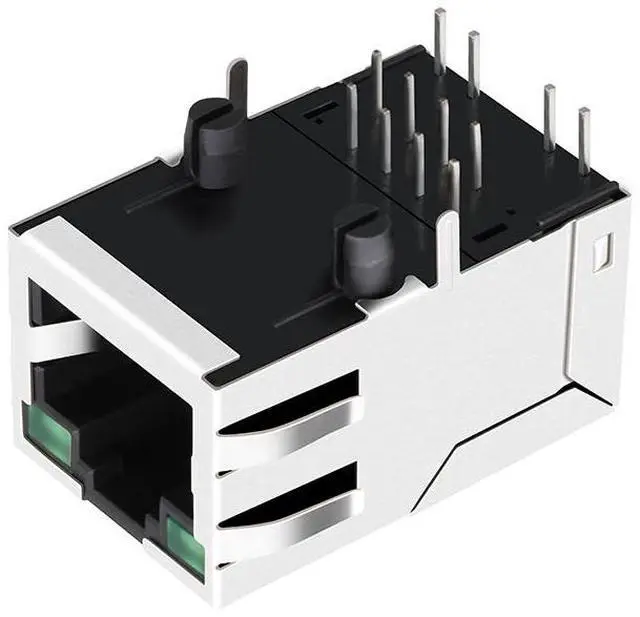

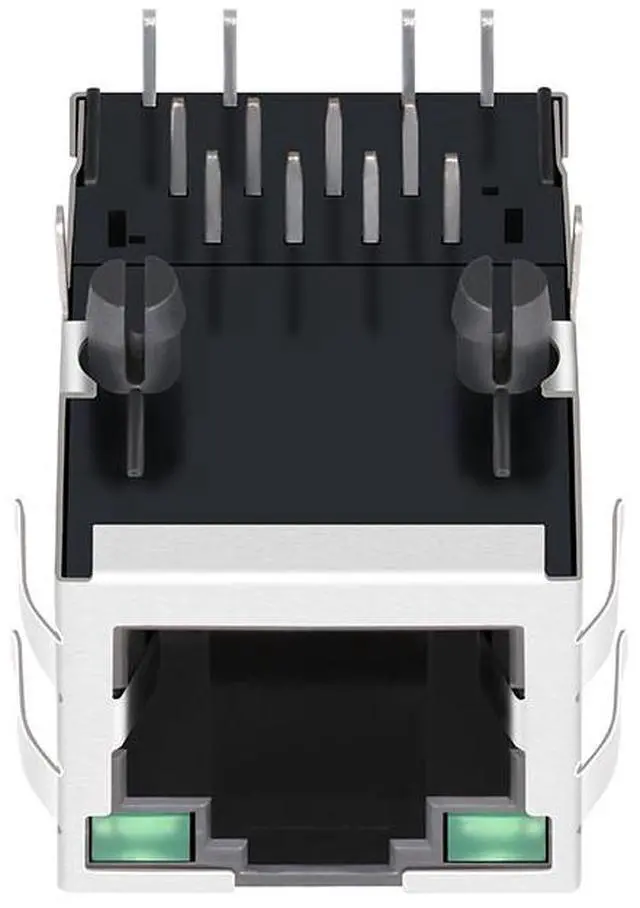

LINK-PP 47F-1206-YGD2NL RJ45 Magjack Connector, 8P8C 10/100Base-T with Integrated Magnetics, Shielded with EMI Tabs, Tab Up Orientation, with LED Indicator, Through Hole Mount (Tape & Reel)
Limited time offer, ends 01/11 By Torpedo Nova
- 1. Integrated magnetic bead Magjack design: Incorporates magnetic components (transformer and common-mode choke coil), providing signal conditioning, electrical isolation, and noise suppression functions, simplifying PCB layout design.
- 2. Complete electromagnetic shielding system:
- EMI fully shielded housing: Provides 360-degree electromagnetic interference protection
- Shielding spring design: Through a reliable connection between the spring and the PCB ground layer, the shielding effect is significantly enhanced.
- 3. Special Direction Design: Utilizes the Tab Up (lock mechanism upward) interface direction, which is suitable for specific chassis layouts and installation requirements.
- 4. Status indication function: Equipped with LED indicator lights, which can display the network connection status and data transmission activities in real time.
- 5. Gigabit Network Performance: Supports 10/100 Base-T transmission rates, meeting the requirements of most network devices.
- 6. High-reliability Connection:
- The phosphor bronze contact pieces are treated with gold plating to ensure excellent conductivity and corrosion resistance.
- Through-hole welding provides a strong mechanical connection that can withstand the stress caused by the insertion and removal of network cables.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufacturer model: 47F-1206-YGD2NL
Brand: LINK-PP
Type: RJ45 Magjack
Connector type: RJ45
Description: RJ45 Magjack
Origin: Guangdong, China
Package: Tape & Reel
Installation method: Through Hole
Shielding: EMI Shielded
Contact material: Phosphor Bronze
Contact coating: Gold-Plated
Operating temperature: 0°C ~ 70°C
Position/Contact count: 8p8c (RJ45, Ethernet)
Port count: 1x1 Port
Speed: 10/100 Base-T
Local area network application: Ethernet (Non PoE)
Wire core count: 4-core
Per-port wire core: 4
Direction: Tab Up
Latch direction: Up
EMI shielding clip: With
LED option: With
Component status: Active
