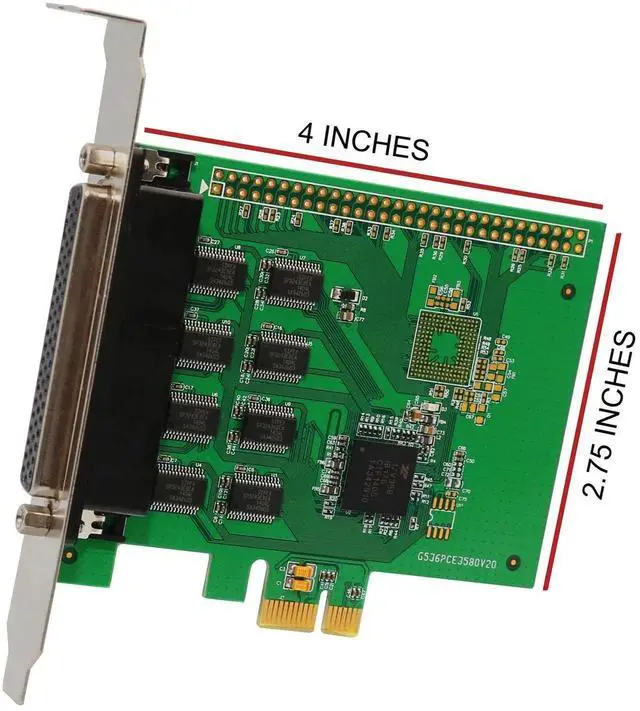

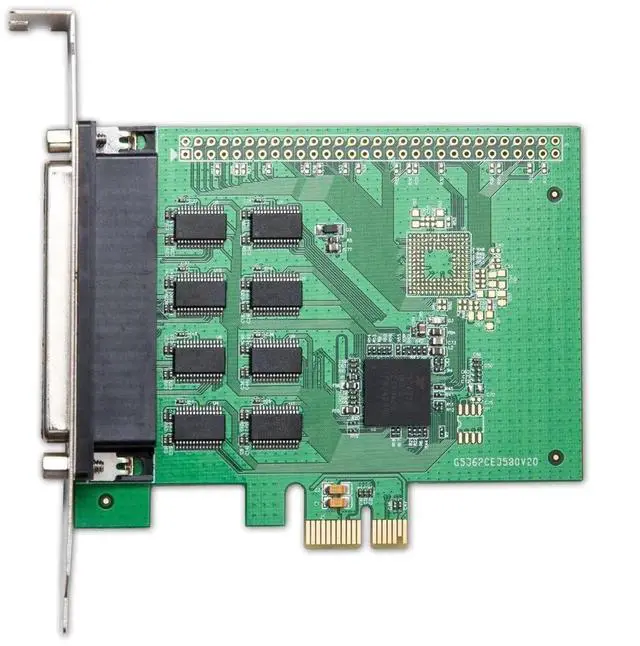

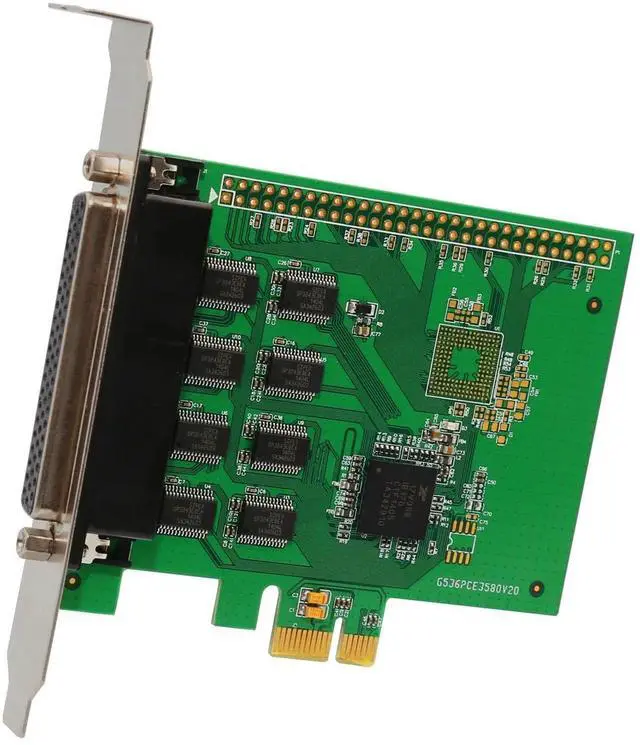

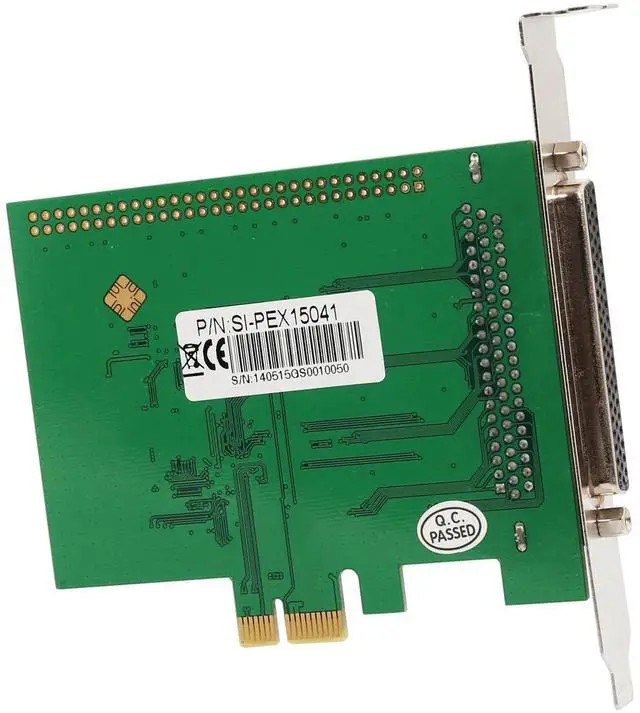

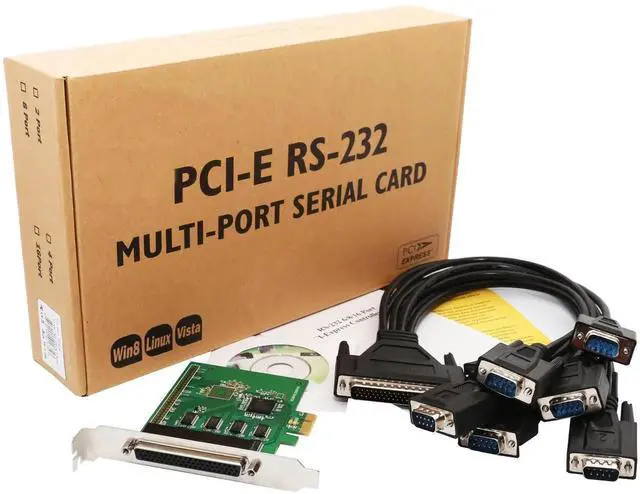

JAENFONG 8 Port RS-232 DB9 Serial PCI-e 2.0 x1 Card XR17V358 Chipset 16C550 UART SI-PEX15041
Limited time offer, ends 01/17 By Technology Center
- Pcie 2. 0 Gen 1 compliant. x1 Link, Dual Simplex, 2. 5Gbps in each direction expansion bus interface Up to 25 Mbps Serial data rate.
- 16 Multi-Purpose inputs/outputs. 16-Bit general purpose timer/counter. Sleep mode With wake-up indicator
- Operating temperature range: -40C to 85C

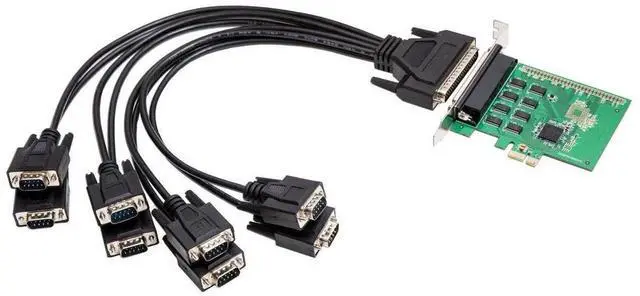

- 8x Serial (8S) model: supports 8 independent 9-pin RS232 serial ports
- 256-Byte TX and RX fifos. Programmable TX and RX trigger levels. Fractional baud rate generator. Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis.
- PCI-e 2.0 Gen 1 Compliant
- x1 Link, Dual Simplex, 2.5Gbps in Each Direction
- Expansion Bus Interface
- Up to 25 Mbps Serial Data Rate
- 16 Multi-Purpose Inputs/Outputs
- 16-bit General Purpose Timer/Counter
- Sleep Mode with Wake-up Indicator
- Supports 8 Independent 9-pin RS232 Serial Ports
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Pcie 2. 0 Gen 1 compliant. x1 Link, Dual Simplex, 2. 5Gbps in each direction expansion bus interface Up to 25 Mbps Serial data rate.
- 16 Multi-Purpose inputs/outputs. 16-Bit general purpose timer/counter. Sleep mode With wake-up indicator
- Operating temperature range: -40C to 85C
- 8x Serial (8S) model: supports 8 independent 9-pin RS232 serial ports
- 256-Byte TX and RX fifos. Programmable TX and RX trigger levels. Fractional baud rate generator. Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis.
- PCI-e 2.0 Gen 1 Compliant
- x1 Link, Dual Simplex, 2.5Gbps in Each Direction
- Expansion Bus Interface
- Up to 25 Mbps Serial Data Rate
- 16 Multi-Purpose Inputs/Outputs
- 16-bit General Purpose Timer/Counter
- Sleep Mode with Wake-up Indicator
- Supports 8 Independent 9-pin RS232 Serial Ports
