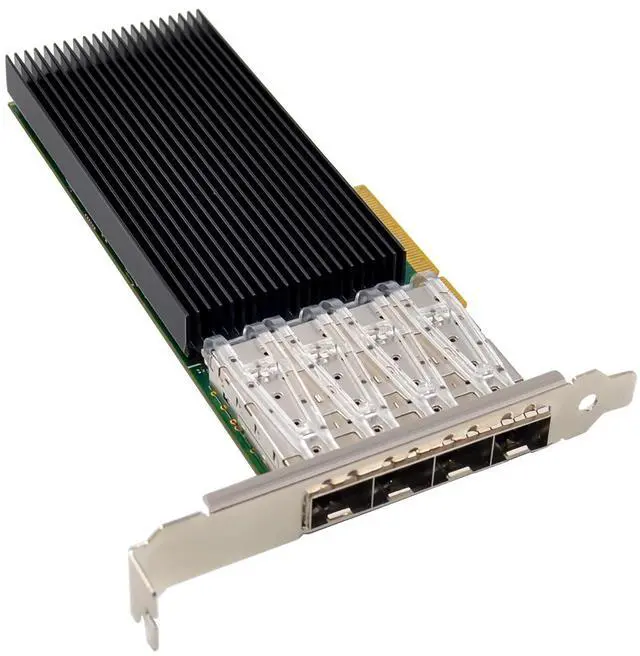

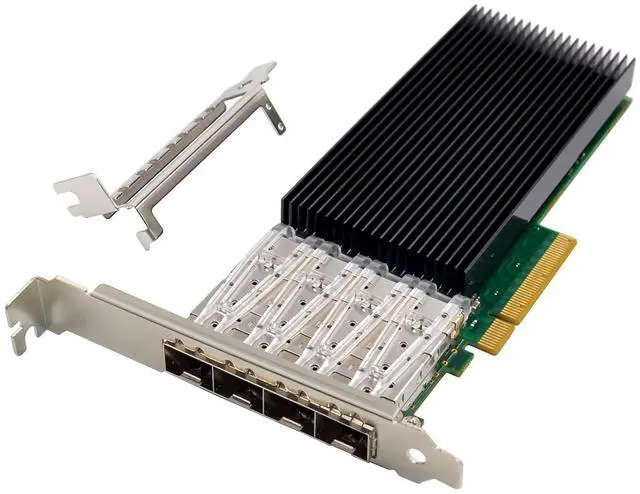

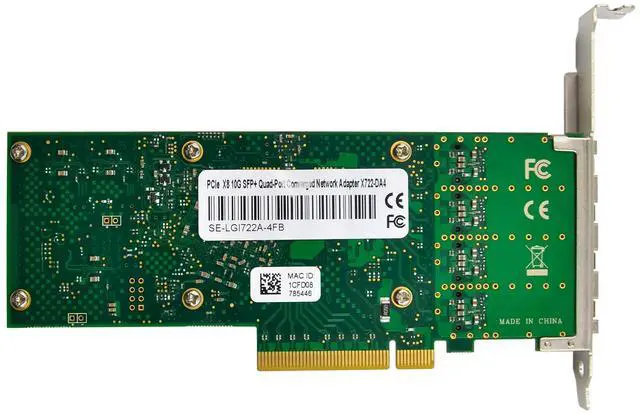

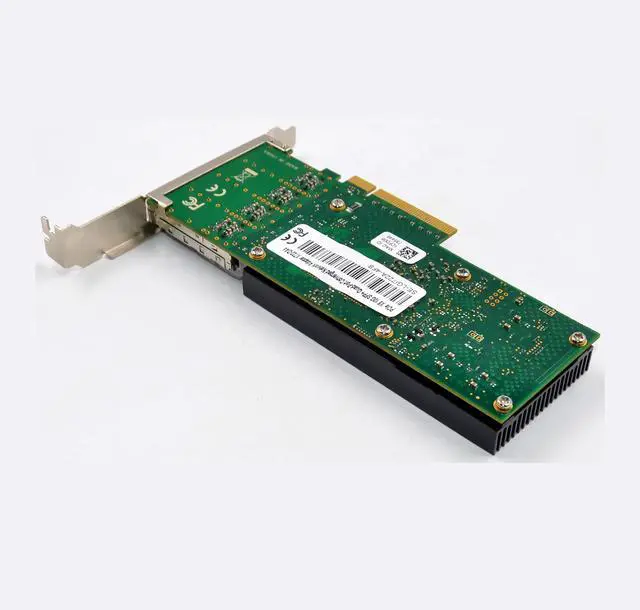

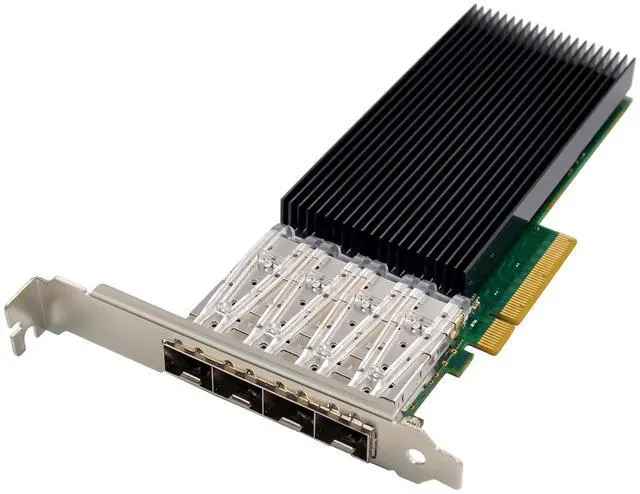

JVFYI PCIe Ethernet Network Adapter X722-DA4

iWARP RDMA

PCI-Express host interface specification v3.0 with 8GT/s Bus width

PCI-Express interface: x8

Support 10GBASE-SR, 10GBASE-LR and SFP+ Direct Attach copper physical media

4x10G SFP+ supported

Support for most network operating systems

Time SYNC (IEEE1588, 802.1as) supported

Intel Ethernet Flow director

Multiple Queues:1536 TX and RX queues per device

Supports Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Next-generation VMDQ up to 256 maximum VMDQ VMs supported

PCI-SIG SR-IOV implementation 128 per device

Virtual machine load balancing

Advanced packet filtering

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Drivers support for FreeBSD, Linux , VMWare ESXi, Win10/Win11/Win-server208/ Win-server202/Win-server2016/Win-server2019/Win-server2022

Features table

Model Name PCIe x8 Intel Ethernet Adapter X722-DA4

Bus interface PCIe3.0 x8 lane

Interrupt Levels INTA, MSI, MSI-X

Transmission Media SFP+

Link speeds of per port 10GbE/1GbE

Port number 4 ports

Operating Temperature 0 °C to 55 °C (32 °F to 131 °F)

Airflow Quad Port,

325LFM@55°C for Optics

300LFM@55°C for DAC

Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)

Storage Humidity Maximum: 90% non-condensing relative

humidity at 35 °C

LED Indicators LINK (solid) and ACTIVITY (blinking)

LED Color(green=10Gbps)

Virtualization features VMDQ, PCI-SIG, SR-IOV, Virtual machine load balancing advanced packet filtering, VLAN, VxLAN, GENEVE, NVGRE, MPLS, VxLAN -GPE, NSH

Manageability PXE, UEFI, SNMP,

Power consumption max 13.6W

Remote Direct Memory Access (RDMA) iWARP: based on TCP/IP, routable and scalable, ideal for software defined storage solutions

Physical Dimensions 167mm*69mm

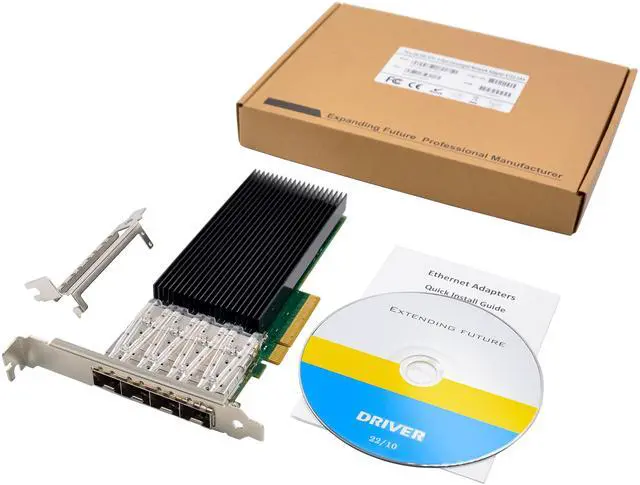

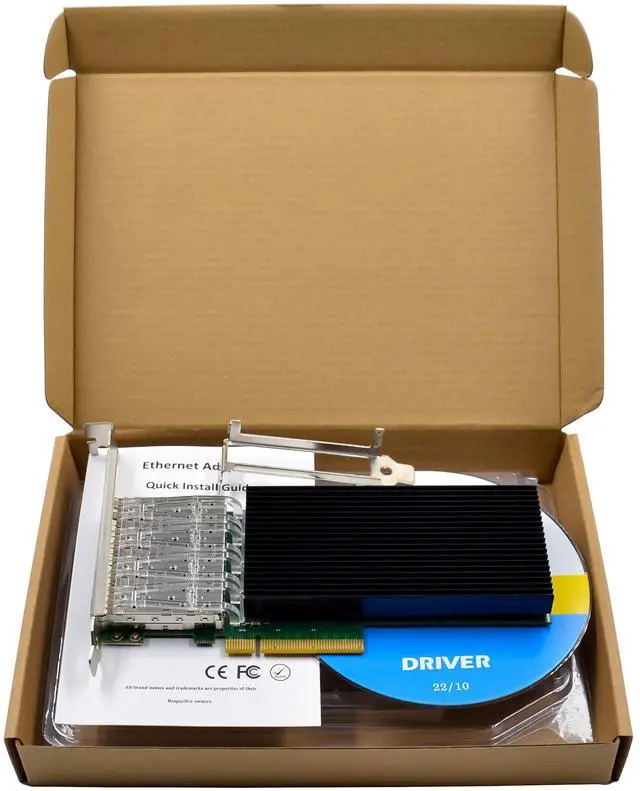

Package content

1 x PCIe x8 Intel Ethernet Adapter X722-DA4

1 x Users Manual

1 x CD Driver

1 x Low profile bracket

Accessories

System Requirements

Microsoft Windows: Win10/Win11/Win-server2008/ Win-server2012/Win-server2016/ Win-server2019/ Win-server2022

Linux:RHEL7.9/8.4/8.5,SLES12SP5,SLES15SP3,Ubuntu18.04LTS/ 20.04LTS,FreeBSD 12.2/13

An available PCI Express x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Note: select the correct slot, some systems have physical X8 PCI Express slots those actually only support lower speeds. Please check your system manual to identify the slot

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
