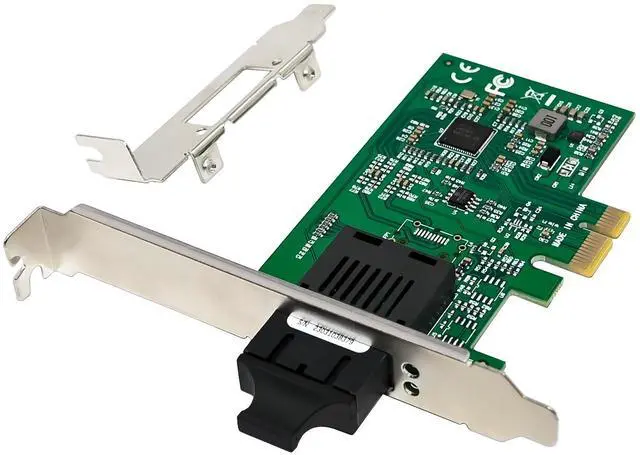

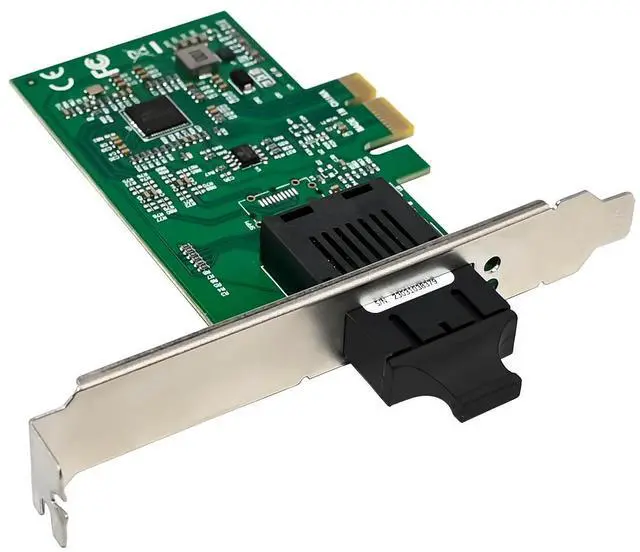

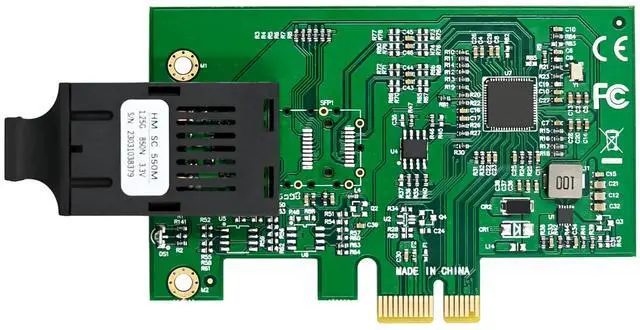

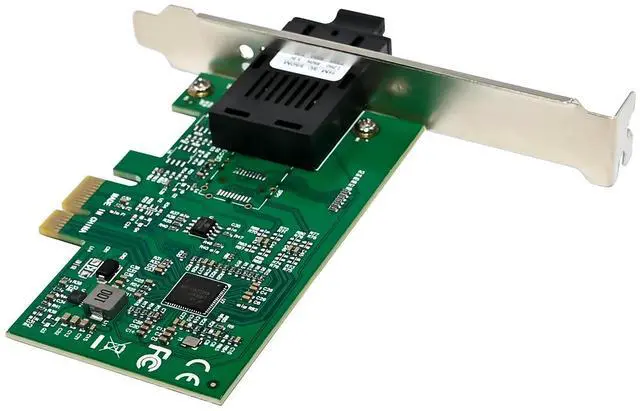

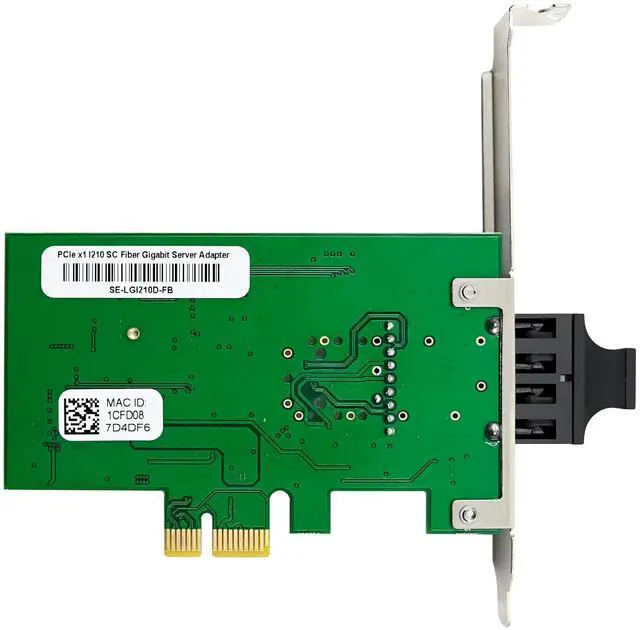

JVFYI PCIe I210 SC Gigabit Fiber Network Adapter
Limited time offer, ends 01/12 By BRIGHTOR
- PCIe INTEL I210 SC Gigabit Fiber Network Adapter specially designed and it adopts Intel a high-performance Gigabit network controller WGI210AS. By providing unparalleled features of virtualization, flexible features, and proven reliable performance, it solves the high requirements of the generation data center, it has a 1.25Gbps SC Fiber port which can setup a long-distance link with a file server or a remote workstation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCI-Express 1.1 form factor- 1 x 2.5Gbps line
On board with single port 1.25G 850/1310nm multi-mode SC Fiber port
Support 1000BASE-SX/LX (optical fiber-IEEE802.3)
IEEE802.3 auto-negotiator
Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
Supports Receive-side scaling (RSS)
Supports IPv 4, IPv 6 protocols
Supports Jumbo Frames up to 9K
IEEE1588 protocol and 802.AS implementation
IEEE802.3az-Energy Efficient Ethernet (EEE) support
Full wake up support
Audio-Video Bridging (AVB) support (802.1Qav)
Supports Checksum offloading
Chipset: WGI210CL
Drivers for Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / /Server2016/Server2019/Server2022/Linux / DOS
Package content
1 x PCIe INTEL I210 SC Gigabit Fiber Network Adapter
1 x Users Manual
1 x CD
1 x Low profile bracket
Accessories
System Requirements
FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016//Win-server2019/Win-server2022/win10/Win11
Available PCI Express x4/x8/x16 slot
Hardware installation
1.Turn off the computer and unplug the power cord
2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter
3.Insert the adapter edge connector into the slot and secure the bracket to the chassis
4.Replace the computer cover, then plug in the power cord
5.Power on the computer
Install Drivers and software
Windows Operating Systems
You must have administrative rights to the operating system to install the drivers.
1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):
2.if the Found New Hardware Wizard screen is displayed, click Cancel
3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.
4.Click install Drivers and Software
5.Follow the instructions in the install wizard to finish it
Installing Linux Drivers from Source Code
1.Download and expand the base driver tar file.
2.Compile the driver module
3.Install the module using the modprobe command
4.Assign an IP address using the ifconfig command
Support
More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
