JVFYI M.2 B+M RTL8111H Dual-RJ45 Gigabit Ethernet Card FPC

Support existing CAT-5 UTP cabling with automatic crossover detection

Fully compliant with PCI-Express Base Specification Revision1.1

Single-Lane(x1) PCI-Express with throughput up to 2.5Gbps

Hardware interface: M.2 B+M Key (22 x 42mm)

Support Dual-Port RJ45 Copper Network

A high performance 1000BASE-T Ethernet controller card

Backwards compatible to 10/100BASE-T networking

10/100/1000Mbps data rate auto negotiation operation

Fully compliant with IEEE802.3, 802.3u,and 802.3ab

Support full duplex flow control(IEEE802.3x)

Support IEEE802.1P Layer 2 Priority Encoding

Support IEEE802.Q VLAN tagging

Support jumbo frame to 9K bytes

Crossover Detection and Auto Correction operation

Chipset: RTL8111H + ASM1182e

Package content

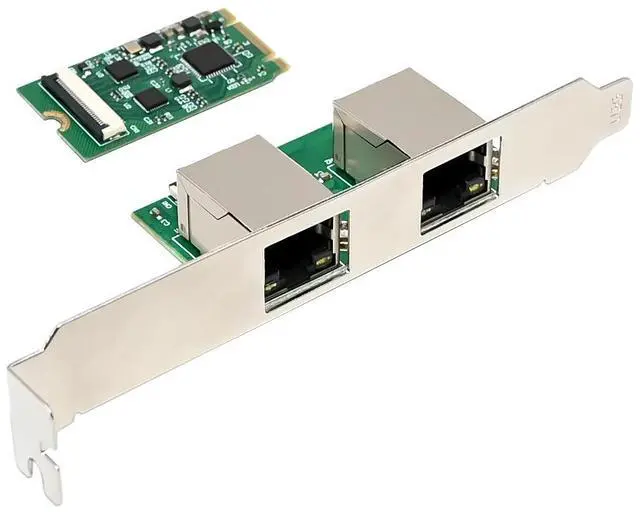

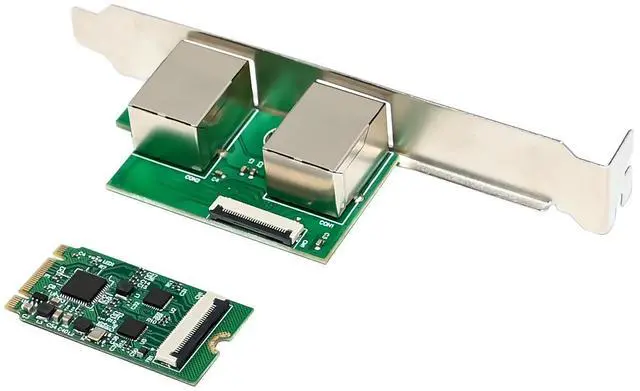

1 x M.2 B+M KEY Realtek RTL8111H-Main Board

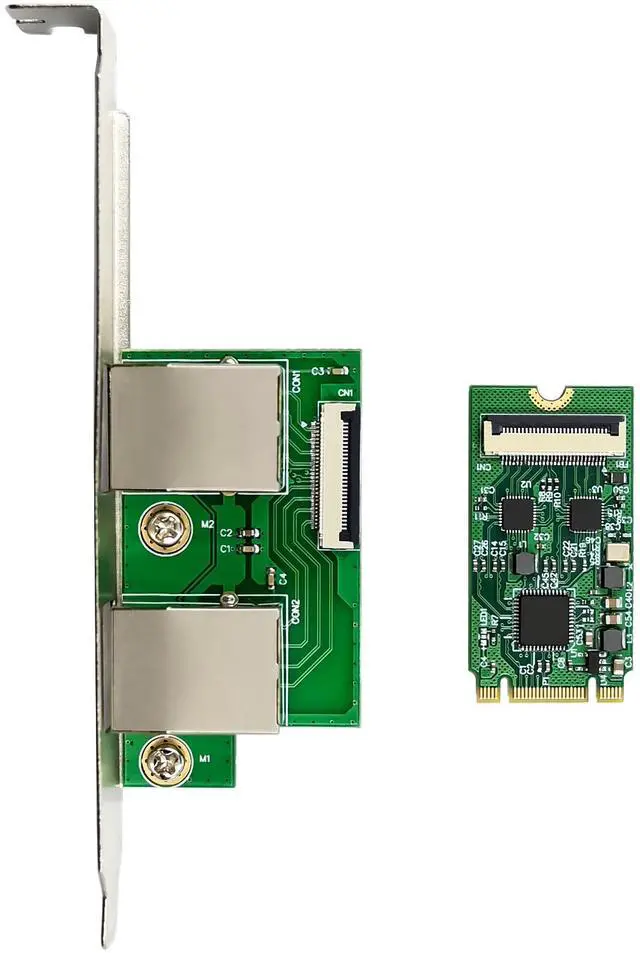

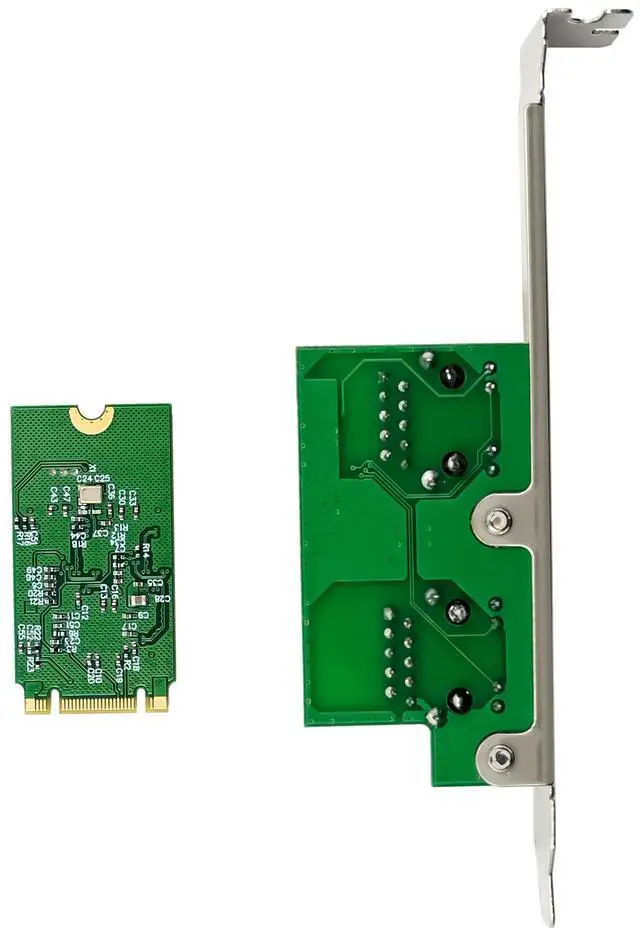

2 x Dual RJ45 port-Daughter Board

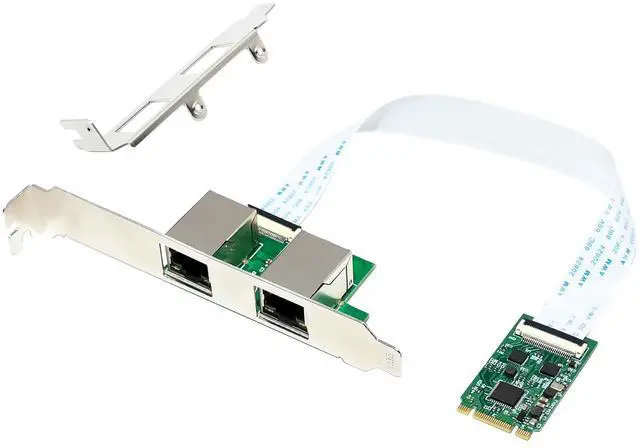

1 x FPC network cable

1 x CD

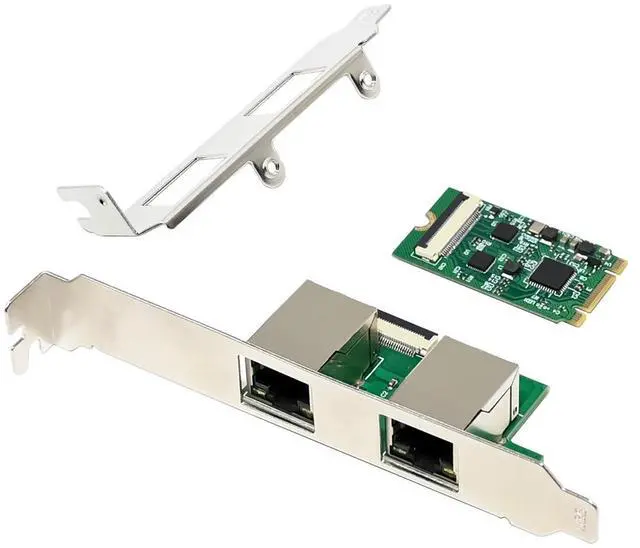

1 x Low profile bracket

System Requirements

WindowsME,98SE,2000,XP Vista,7,8 and 10 32/64bit

Windows server2003,2008,and 2012 32/64bit

Linux,DOS ,MAC OS X10.4.X or above

One available MINI PCIe slot

Hardware installation

1.Turn off your computer and all external devices connected to it.

2.Open the computer case. Refer to your computer user manual for more details 3.Find an available M.2 B+M KEY slot and remove the slot bracket, Save the bracket screw for later use.

4.Insert the main card to the M.2 B+M KEY slot firmly and evenly ,Take care not to force it into the slot. Once you have properly positioned the main card into the slot, secure it with the screw you have just saved.

5.Find an empty expansion slot on the back panel of the computer case and remove the metal bracket. Save the bracket for later use.

6.Place the bracket of the daughter card on the expansion slot on the back panel and secure it with the bracket screw you have just saved.

7.Connect the system to network by inserting the CAT-5 or above cable into RJ45 Port on the daughter card.

8.Secure the computer case and switch on your computer.

Install Drivers

Windows Operating Systems

1. Please insert the CD driver bound into your CD-ROM Drive.

2. At the Windows desktop, click Start, Run.

3. 1 For Windows® WIN98SE,WinME

TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN98SE,WINME\PCIE_Install_5708_1119\setup. exe, Double click it.

3. 2 For Windows® WIN2K, XP, Server 2003 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN2K,XP,2003\PCIE_Install_5790_11182011\setup.exe, Double click it.

3. 3 For Windows® Vista, WIN2008 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\VISTA,WIN2008\Install_Vista_6250_11182011\setup.exe, Double click it.

3.4 For Windows® Win7, WIN2008 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN7,WIN2008\Install_Win7_7049_11182011\setup.exe, Double click it.

3.5 For Windows® Win8, Win8.1 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\Win8,Win8.1\Install_Win8_8.1_8020_09182013\setup.exe, Double click it.

3.6 For Windows® Win10 (32/64 bit)

Type

RTL8168,RTL8111C,RTL8111E\Windows\Win10\Install_Win10_10003_08202015\setup.exe, Double click it.

4. Follow the on-screen instructions to complete the installation.

Support

More information and settings, please refer to the Adapter User Guides or you can contact us.
