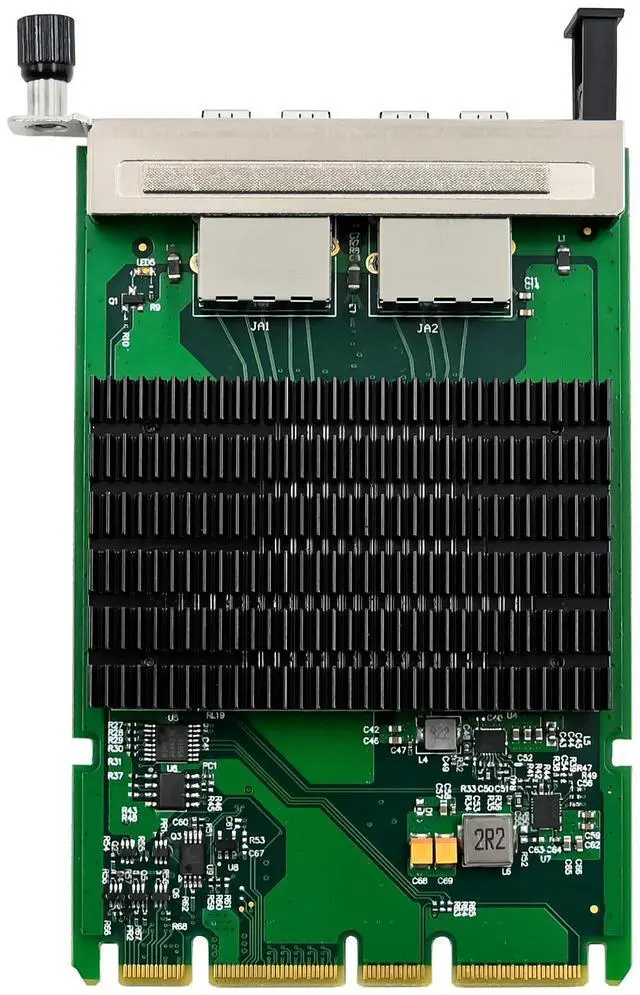

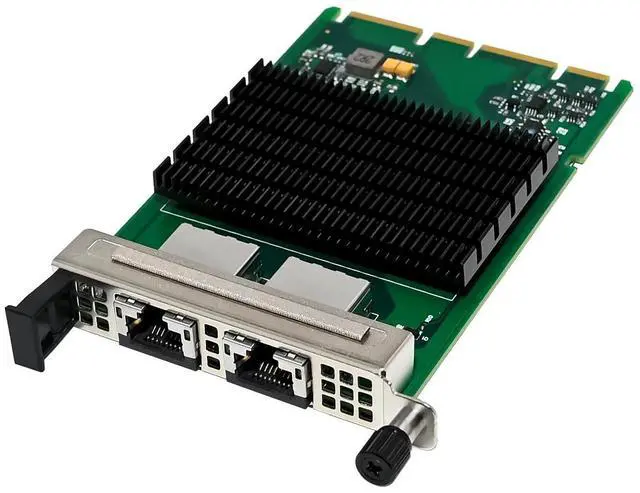

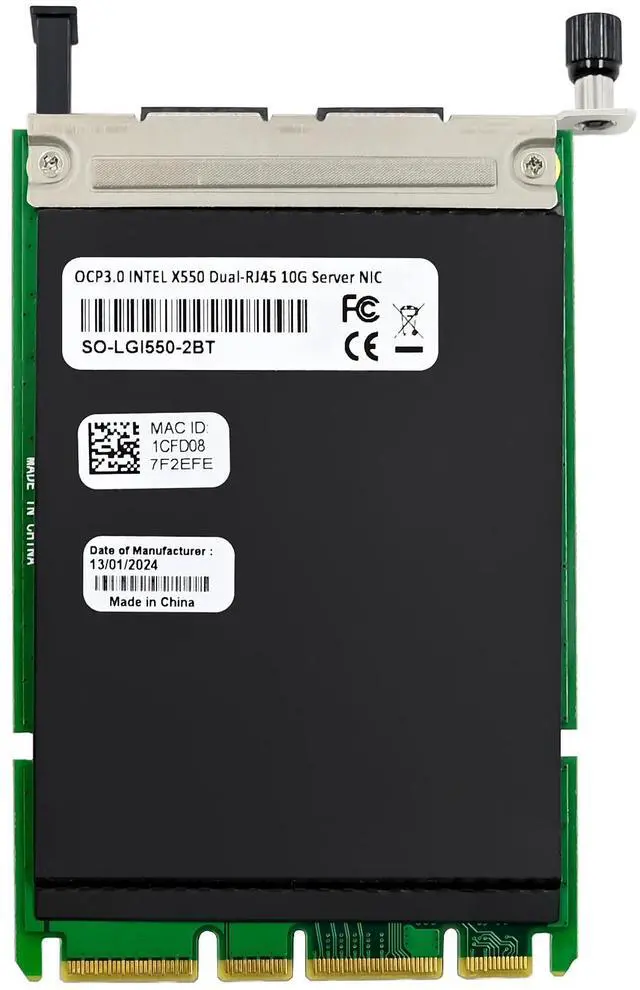

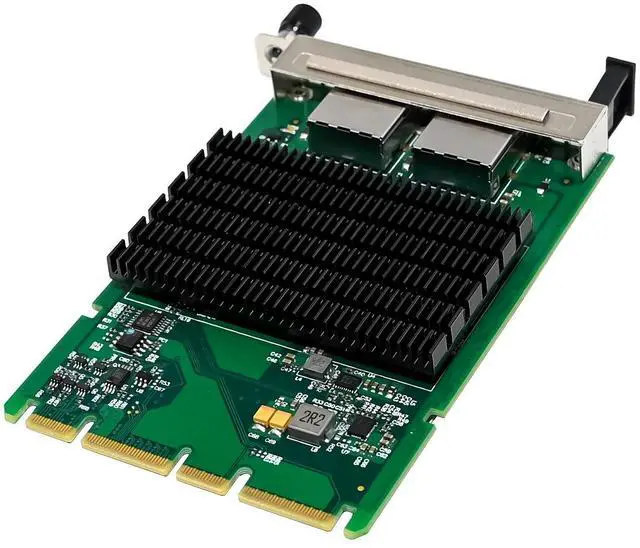

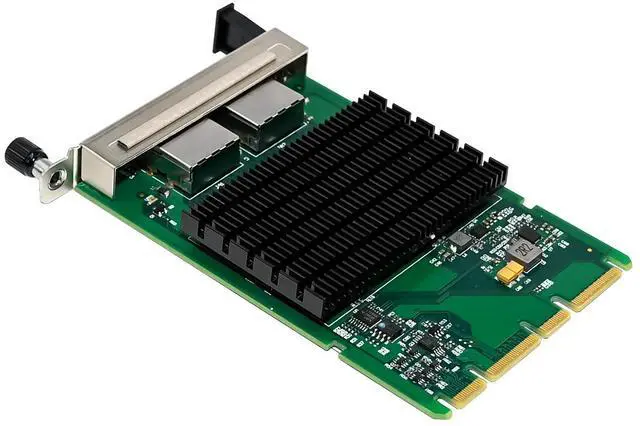

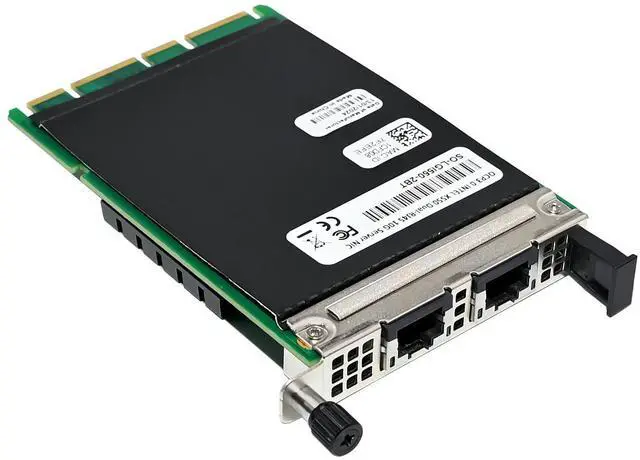

JVFYI OCP3.0 X550T2 Dual- 10G RJ45 Copper Ethernet Adapter

OCP NIC 3.0 Small Form Factor

PCI-Express host interface specification v3.0, PCI-Express lanes: x4

Complies with PCI Bus Power Management Interface Specification Rev1.2

Complies with dual port 10GbE RJ45 port

Operate Speeds: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s

10GBASE-T as per the IEEE 802.3an standard

1000BASE-T and 100BASE-TX as per the IEEE Standard 802.3-2012

NBASE-T as per the IEEE P802.3bz/D1.1 Draft Standard for Ethernet Amendment

Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds

Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN

Supports Receive-side scaling (RSS)

Supports IPv 4, IPv 6 protocols

Supports Jumbo Frames up to 15.5K

Supports UDP.TCP and IP Checksum offloading

128 transmit queues

Statistics for management and RMON

Support for 64 virtual machines per port (64VMs x2 queues)

Support for Data Center Bridging(DCB)(802.1Qaz,802.1Qbb,802.1p)

Interrupt throttling control to limit maximum interrupt rate and improve CPU usage

Chipset: Intel ELX550-AT2

Drivers support for Microsoft Windows: Win10/Win11/Win-server208/ Win-server202/Win-server2016/ Win-server2019/ Win-server2022

Linux:RHEL7.9/8.4/8.5,SLES12SP5,SLES15SP3,Ubuntu18.04LTS/ 20.04LTS,FreeBSD 12.2/13

Feature tab

Product Name OCP3.0 Intel X550-T2 Dual-Port 10G Network card

Bus type OCP3.0 SFF with PCIe Gen 3.0 (8.0GT/s) through an x4 edge connector, Gen2 compatible

Chipset Intel ELX550-AT2

Interrupt Levels INTA, MSI, MSI-X

Transmission Media Copper: 2.5GBASE-T and 5GBASE-T :100m using CAT5e,CAT6,or CAT6A

10GBASE-T 55m using CAT6, 100m using CAT6A

100BASE-TX and 1000BASE-T:100m using CAT5e,CAT6, CAT6A

Link speeds of per port 100Mbps/1GbE/2.5GbE/5GbE/10GbE

Port number 2 ports

Operating Temperature 0 °C to 55 °C (32 °F to 131 °F)

Airflow 100m: 35 °C to 40 °C,

350LFM-400LFM recommended

Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)

Storage Humidity Maximum: 90% non-condensing relative

humidity at 35 °C

LED Indicators LINK (green = 10Gbps; yellow = 5/2.5/1Gbps;

off = 100Mbps)

ACT (blinking green = transmitting or receiving

data; off = no link)

Virtualization features VMDQ,PCI-SIG,SR-IOV, Virtual machine load balancing advanced packet filtering, VLAN, VxLAN, GENEVE, NVGRE, MPLS, VxLAN -GPE,NSH

Manageability PXE, UEFI, SNMP,

Package content

1 x OCP3.0 Intel X550-T2 Dual-Port 10G Ethernet adapter

1 x Users Manual

1 x CD Driver

System Requirements

Microsoft Windows: Win10/Win11/Win-server208/ Win-server202/Win-server2016/ Win-server2019/ Win-server2022

Linux:RHEL7.9/8.4/8.5,SLES12SP5,SLES15SP3,Ubuntu18.04LTS/ 20.04LTS,FreeBSD 12.2/13

An available OCP3.0 SFF slot

Hardware installation

1. Turn off the computer and unplug the power cord.

2. Remove the adapter slot cover from the OCP3.0 slot that matches your adapter.

3. Push the OCP3.0 adapter card inward along the track of the slot until the bracket is level with the chassis and lock the screws to secure it.

4. Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive (also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
