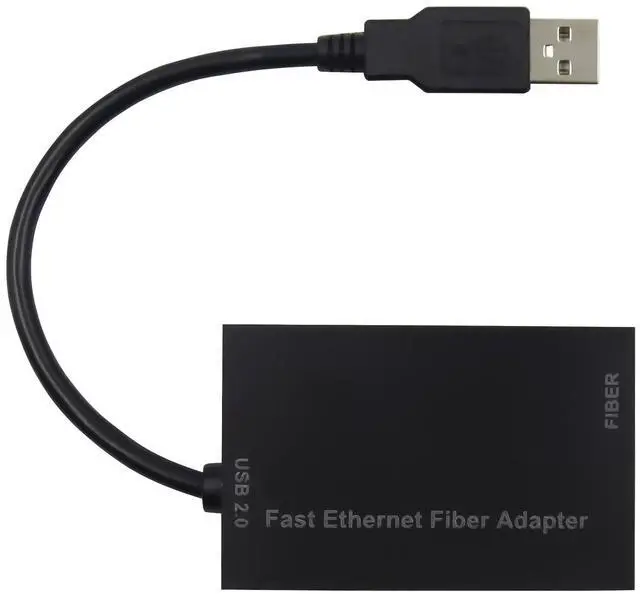

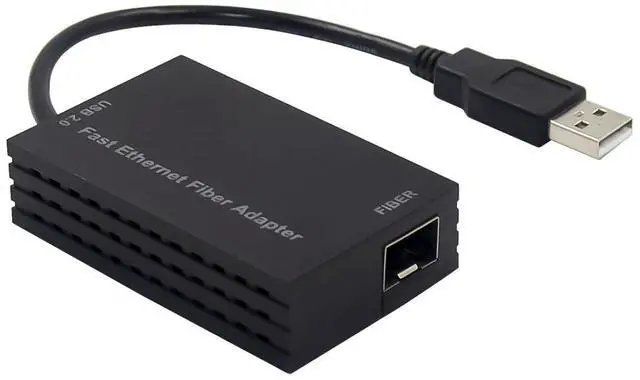

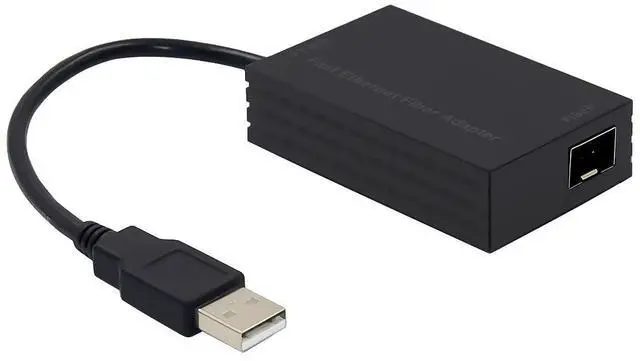

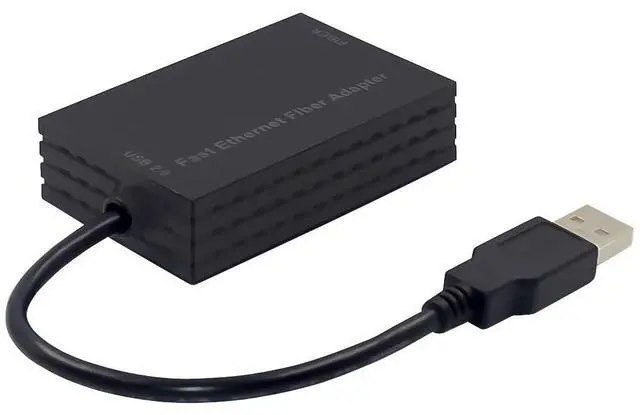

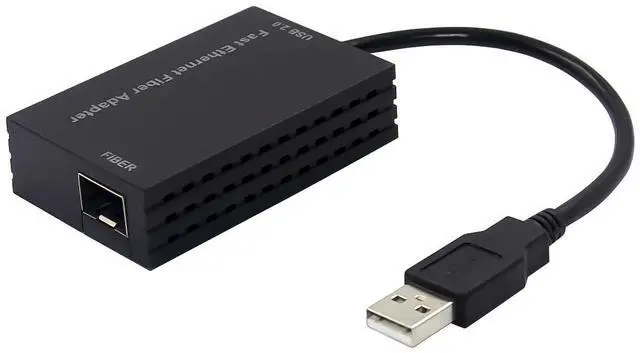

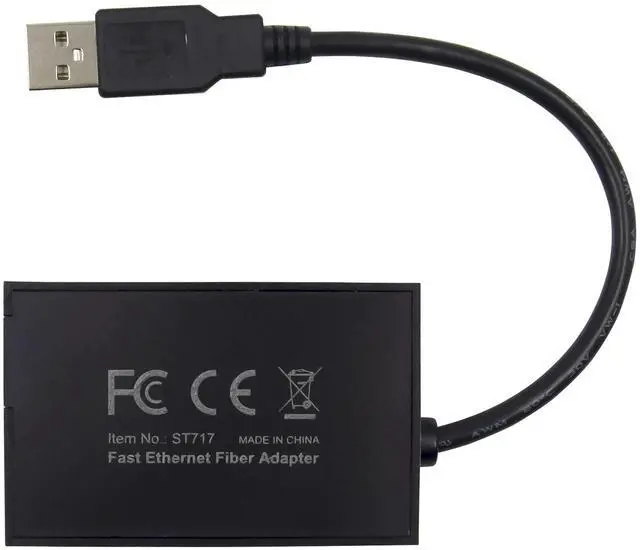

JVFYI USB 2.0 Fast Ethernet SFP Fiber Adapter

Integrated 100Mbps-SX/LX transceiver

Supports TYPE-A, USB2.0 and USB1.1

Supports CDC-ECM

Supports LPM(Link Power Management)

Supports Pair swap/polarity/skew correction

Crossover Detection &Auto-Correction

Transmit/Receive on-chip buffer support

Supports hardware CRC(Cyclic Redundancy Check) function

Supports power down/link down power saving

Upstream port: USB2.0 AF

Downstream port: SFP port

Chipset: ASIX AX88772A

Package content

1 x USB2.0 Fast Ethernet SFP Fiber Network Adapter

1 x Users Manual

1 x CD

Accessories

System Requirements

Linux, MAC OS10.6~10.13,Windows XP/Vista/Win7/Win8/Win8.1/Win10 32bit or 64 bit

Available USB2.0 port

Hardware Installation

Step 1: Plug the USB 2.0 to Fast Ethernet Adapter directly into an available USB port on your computer

Step 2: Connect one end of your network cable into the RJ45 port of USB 2.0 to Fast Ethernet Adapter

Step 3: Connect the other end of the network cable into an available Ethernet port on your router, switch, or any other networking device.

Driver Installation

Installing driver for Windows 98,2000. XP 32/64bit server2003 32/64bit vista32/64bit server2008 32/64bit Win7 32/64bit and Win8 32/64bit:

1.For Windows 2000/server 2003/XP Once the USB Adapter is installed , Windows will detect the board and attempt to install driver for it.

2.The Update Device driver Wizard will appear, informing you that it has found AX88772. Click the Cancel button.

3.Insert the provided CD into your disk drive.assume drive D.Brower to the following folder on the driver CD according to your operating system. Please locate and double-click on the D:\Ax88772a/Win2k_3_WinXP\Drivers_Setup/setup.exe file in the CD to launch the install program.

4.Follow the on-screen instructions to complete the software installation,if the driver is installed successfully, you will see the following devices under the System Properties:

5.Following the step to installing these operating systems

Windows 2000/2003/xp

D:\Ax88772a\Win2k_3_WinXP\Drivers_Setup

Windows Vista

D:\Ax88772a\Vista\Drivers_Setup

Windows 7

D:\Ax88772a\Win7\Drivers_Setup

Windows 8

D:\Ax88772a\Win8\Drivers_Setup

Installing Driver for Linux ,WinCE, Mac OS:

Please refer to the installation manual on the driver CD under these operating system folders to installing the driver.
