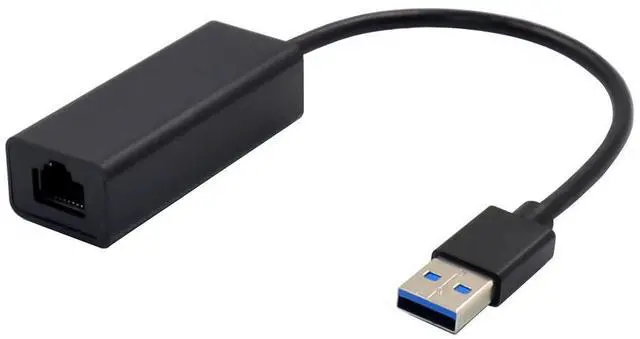

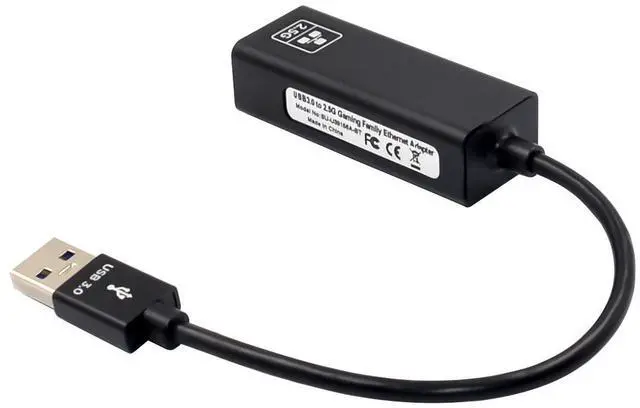

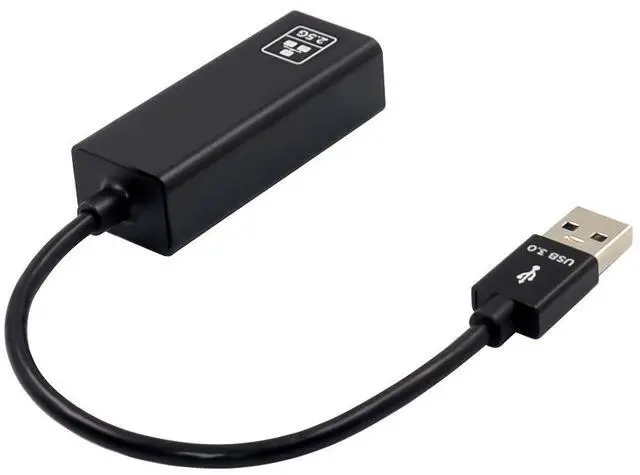

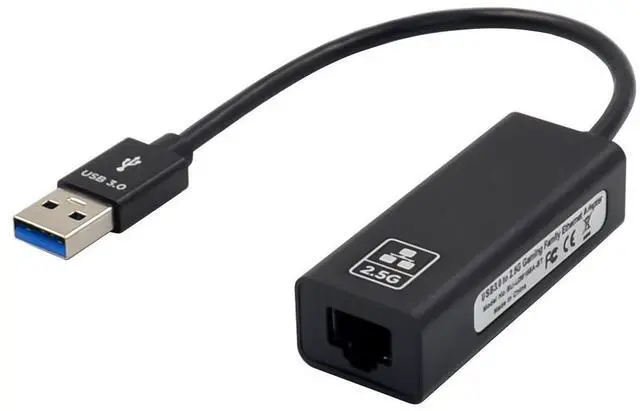

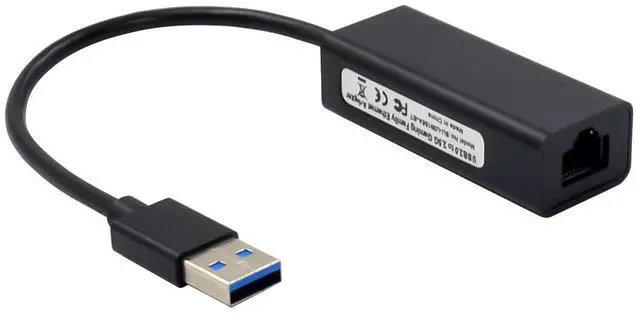

JVFYI USB3.0 RTL8156B 2.5G Ethernet Network Adapter

Integrated 10/100/1000M/2.5G transceiver

Supports 2.5G and 1G Lite mode

Auto-Negotiation with Extended Next Page capability

Compatible with NBASE-TTM Alliance PHY Specification

Supports USB3.0,USB2.0

Supports CDC-ECM

Supports LPM(Link Power Management)

Supports Pair swap/polarity/skew correction

Crossover Detection &Auto-Correction

Transmit/Receive on-chip buffer support

Supports hardware CRC(Cyclic Redundancy Check) function

Supports jumbo frame to 16K bytes

Supports Full Duplex flow control(IEEE802.3x)

Fully compliant with IEEE802.3 ,IEEE802.3u, IEEE802.3ab

Supports IEEE802.1P Layer 2Priority Encoding

Supports IEEE802.1Q VLAN tagging

Supports IEEE802.3az (Energy Efficient Ethernet)

Supports IEEE802.3bz(2.5GBASE-T)

Supports power down/link down power saving

Upstream port: USB3.0 AF

Chipset: Realtek RTL8156B

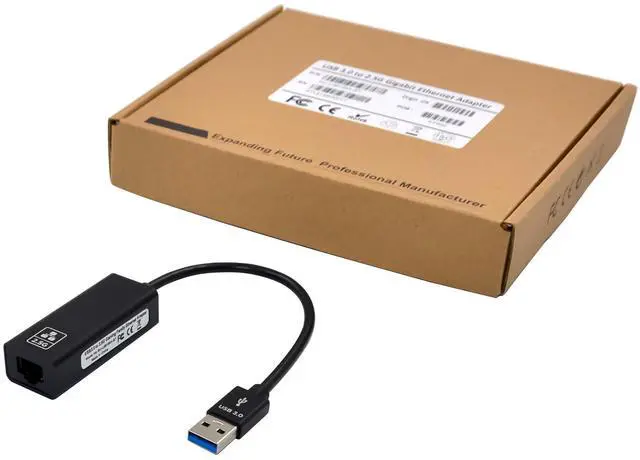

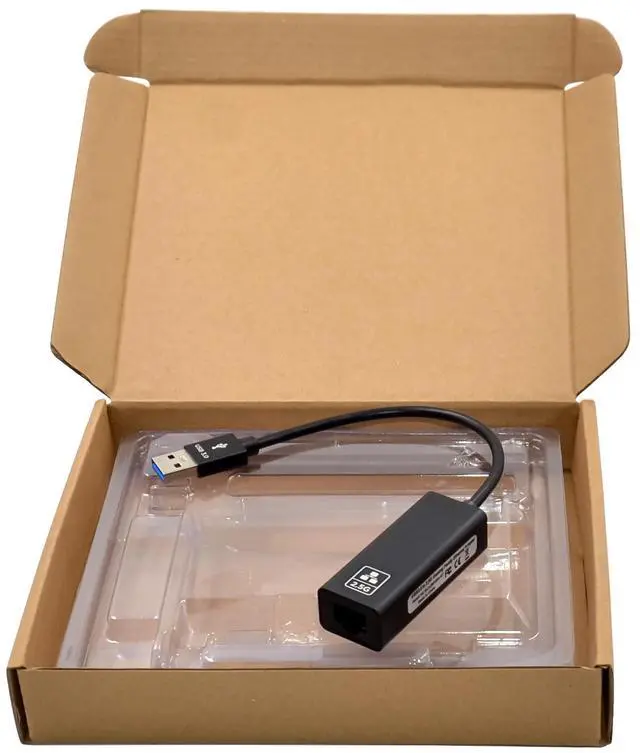

Package content

1 x USB3.0 2.5G Network Adapter

1 x Users Manual

1 x CD

System Requirements

Linux, MAC OS10.6~10.15, Win7/Server2008 R2 /Win8/Win8.1/Server2012/Win10 32bit or 64 bit

One available USB3.0 port

Hardware installation

1.Turn on the computer and get it into the system

2.Plug the USB3.0 adapter into your computers USB port

3.Insert the network cable into the RJ45 port

Install Drivers

Windows Operating Systems

For Windows Win7/Win8/Win8.1/Win10

Please plug the USB3.0 2.5G network adapter into your computers USB port, at the same time the computer system will recognize a new drive disk, Double-click the drive disk, and the system will start and finish the driver installation automatically(if the driver does not installed, please right-click open to Brower drive disk file, and double-click RTK_NIC_DRIVER_ INSTALLER,sfx.exe). The drive disk will disappear after the driver is installed successfully.

Note:*If the driver still installed failure, please follow below process to complete install:

1.Please place the product CD drivers into the drive

2.Find the driver files corresponding to the system

3.Double click Setup.exe to begin installing

4.Follow the steps prompted by the program until the installation is complete

To Verify Windows® Driver Installation

Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. If you has installed successfully, you should see Realtek USB 2.5GbE Family Controllerinstalled under Network Adapter item.
