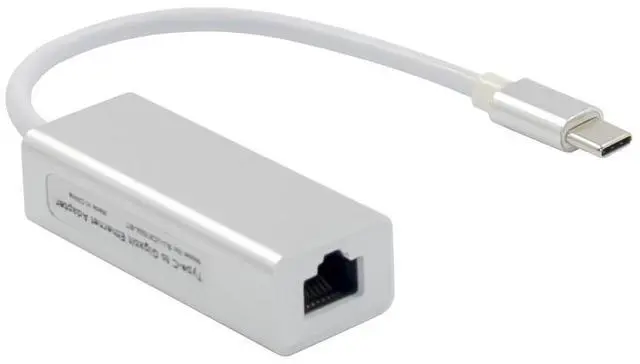

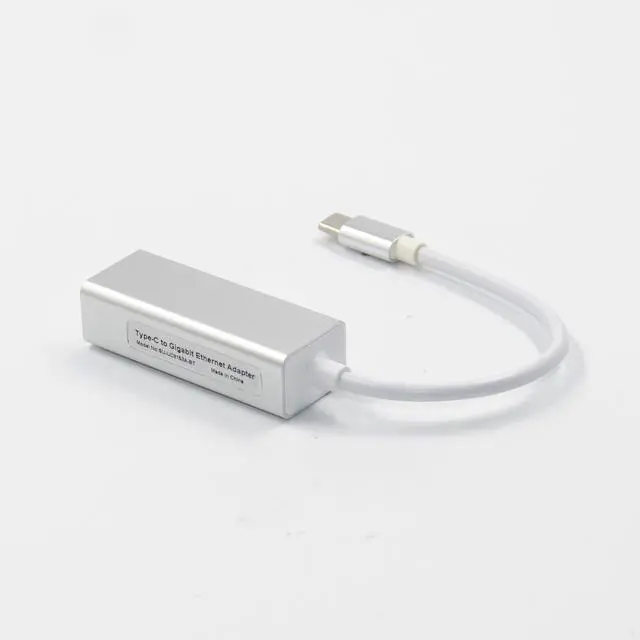

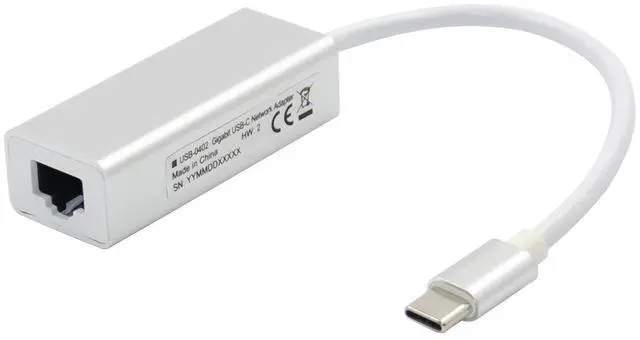

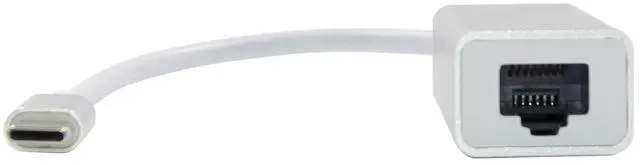

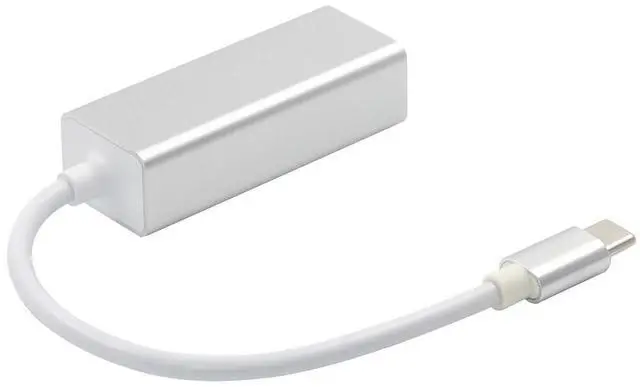

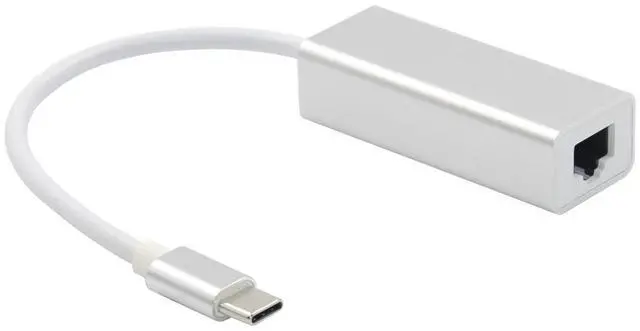

JVFYI USB 3.1 TYPE-C Gigabit Ethernet LAN Adapter
Limited time offer, ends 01/12 By BRIGHTOR
- The USB 3.1 Type-C Gigabit Ethernet LAN adapter used an controller Realtek RTL8153, Which is features Type-C(USB 3.1) to provide higher bandwidth and improved protocols for data exchange between the host and the device. Type-C also offers more advanced power management features for energy saving. The RTL8153 supports IEEE802.3az-2010, also known as Energy Efficient Ethernet (EEE), and it is fully compliant with Microsoft NDIS5,NDIS6(IPv4,IPv6,TCP,UDP)checksum features ,and supports IEEE802 IP layer 2 priority encoding and IEEE802.1Q Virtual bridged Local Area network(VLAN).It is suitable for desktop, workstation, server, communication platforms etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Integrated 10/100/1000M transceiver
Auto-Negotiation with Next Page capability
Supports USB 3.0, 2.0, and 1.1
Supports CDC-ECM
Supports LPM (Link Power Management)
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Supports Wake-On-LAN and RealWoW! (Wake-On-WAN) Technology
Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts
XTAL-Less Wake-On-LAN
Supports power down/link down power saving
Transmit/Receive on-chip buffer support
EEPROM Interface
Embedded OTP memory can replace external EEPROM
Built-in switching regulator and LDO regulator
Supports Customizable LEDs
Supports hardware CRC (Cyclic Redundancy Check) function
Upstream port: USB3.0 AF
Chipset: Realtek RTL8153
Note 1. Select between RealWoW! or ECMA, only one feature can be active at a time.
Software Offload
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Supports jumbo frame to 9K bytes
IEEE
Supports Full Duplex flow control (IEEE 802.3x)
Fully compatible with IEEE 802.3 and IEEE 802.3u
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3az-2010 (EEE)
Package content
1 x USB 3.1 TYPE-C Gigabit Ethernet LAN Adapter
1 x Users Manual
System Requirements
Windows XP/Vista/Win7/Win8/Win8.1/Win10 32bit or 64 bit
Linux, MAC OS10.6~10.13 or later
One available USB 3.1 Type-C Port
Hardware Description
Power LED Link/ACT LED
Install Drivers
Windows Operating Systems
For Windows XP/Vista/Win7/Win8/Win8.1/Win10
Please plug the type C network adapter into your computers USB port, at the same time the computer system will recognize a new drive disk, Double-click the drive disk, and the system will start and finish the driver installation automatically(if the driver does not installed, please right-click open to Brower drive disk file, and double-click RTK_NIC_DRIVER_INSTALLER,sfx.exe). The drive disk will disappear after the driver is installed successfully.
Note:*If the driver still installed failure, please follow below process to complete install:
1.Please place the product CD drivers into the drive
2.Find the driver files corresponding to the system
3.Double click Setup.exe to begin installing
4.Follow the steps prompted by the program until the installation is complete
To Verify Windows® Driver Installation
Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. If you has installed successfully, you should see Realtek USB GbE Family Controllerinstalled under Network Adapter item.
Applications
USB 10/100/1000M Ethernet on Motherboard, Dongle, Notebook, Docking station, or Embedded system
