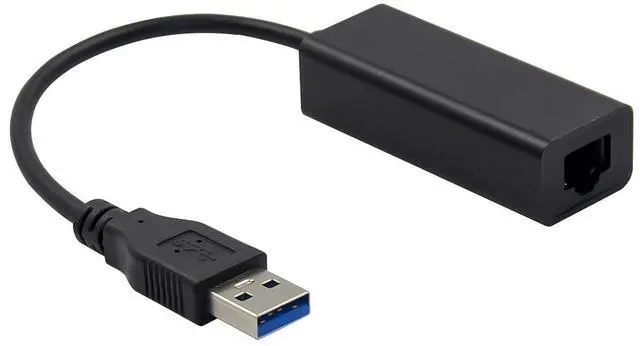

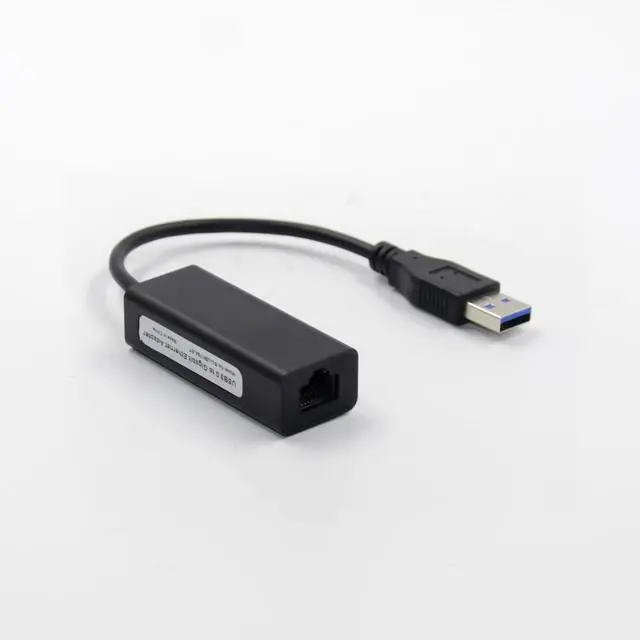

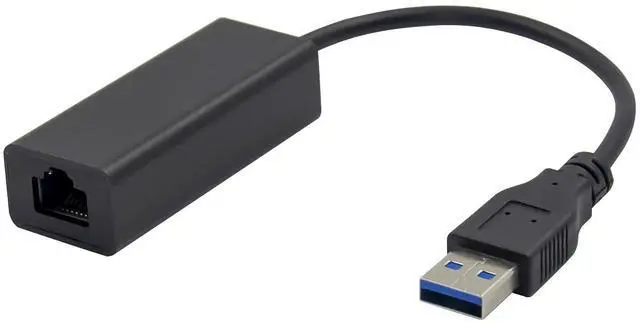

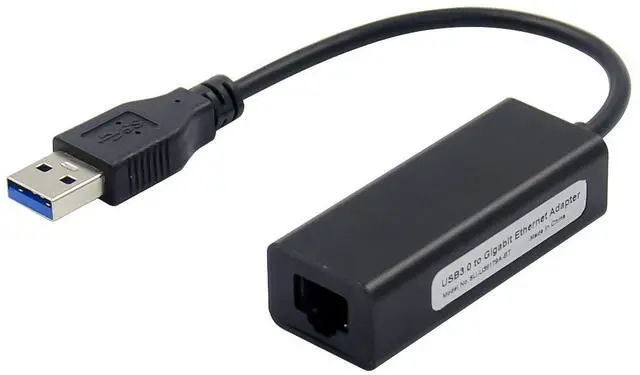

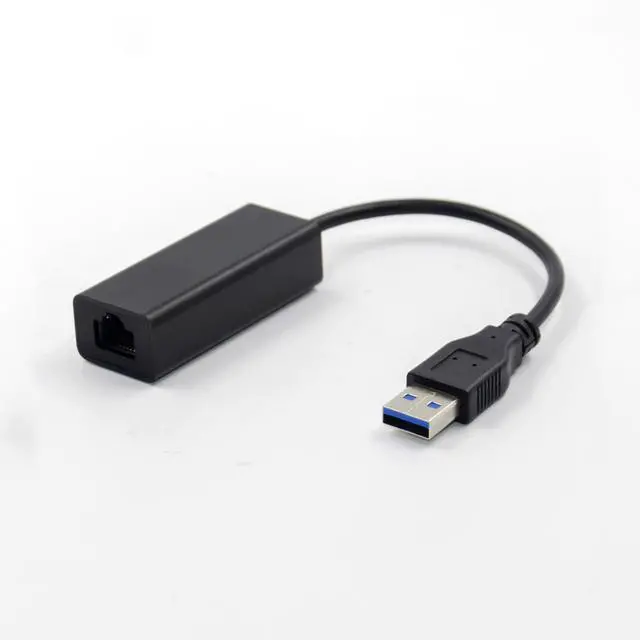

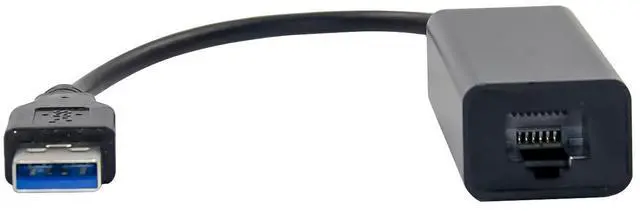

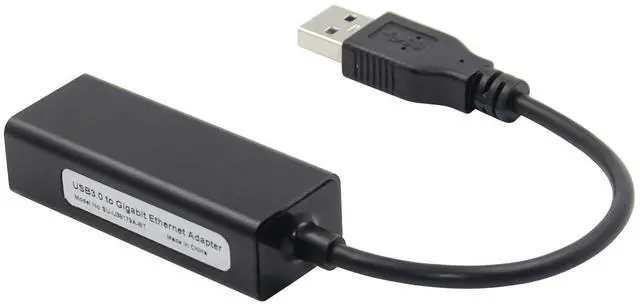

JVFYI AX88179 USB3.0 to RJ45 Gigabit Ethernet LAN Adapter

Integrates on-chip USB3.0 PHY and controller compliant to USB Spec 3.0,2.0 and 1.1

Supports USB Super/High/Full Speed modes with Self-Power device auto-detect capability

Supports IEEE802.3az(Energy Efficient Ethernet)

IEEE802.3,IEEE802.3u,and IEEE802.3ab compatible

Integrates 10/100/1000Mbps Gigabit Ethernet PHY

Supports crossover detection and auto-correction

Supports power down/link down power saving

Support IPv4/IPv6 packet Checksum Offload Engine(COE) to reduce CPU loading ,including IPv4 IP/TCP/UDP/ICMP/IGMP&IPv6 TCP/UDP/ICMPv6 checksum check& generation

Supports TCP Large Send Offload V1

Supports full duplex operation with IEEE802.3x flow control and half duplex operation with back-pressure flow control.

Supports IEEE802.1P Layer 2 Priority Encoding and Decoding.

Supports IEEE802.1Q VLAN tagging

Supports jumbo frame

Upstream port: USB3.0 AF

Chipset: ASIX AX88179

Supports Operating systems:Linux2.6.x~4.x,Mac OS 1.9 and above, Windows CE/XP/Win7/Win8/Win8.1/Win10

Package content

1 x USB3.0 AX88179 Gigabit Network Adapter

1 x Users Manual

1 x CD

System Requirements

Linux, MAC OS10.9 and above, Windows XP/Vista/Win7/Win8/Win8.1/Win10 32bit or 64 bit

One available USB3.0 port

Hardware installation

1.Turn on the computer and get it into the system

2.Plug the USB3.0 adapter into your computers USB port

3.Insert the network cable into the RJ45 port

Install Drivers

Windows Operating Systems

For Windows XP/Vista/Win7/Win8/Win8.1/Win10

1.Please insert the CD driver bound into your CD-ROM drive.

2.Find the driver files corresponding to the system, for example:

For Windows XP, Vista (32/64 bit)

Type AX88179/Windows/WinXP,Vista/Setup.exe double click it.

For Windows 7 (32/64 bit)

Type AX88179/Windows/Win7/Setup.exe double click it.

For Windows 8,8.1 (32/64 bit)

Type AX88179/Windows/Win8,Win8.1/Setup.exe double click it.

For Windows 10 (32/64 bit)

Type AX88179/Windows/Win10/Setup.exe double click it.

3.Follow the on-screen instructions to complete the installation.

To Verify Windows® Driver Installation

Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. If you has installed successfully, you should see ASIX AX88179 USB 3.0 to Gigabit Ethernet Adapterinstalled under Network Adapter item.
